Procedures

Antenna

REPAIR

1. GLASS ANTENNA
1. Clean the antenna wire and surrounding area with a cloth dampened by alcohol.

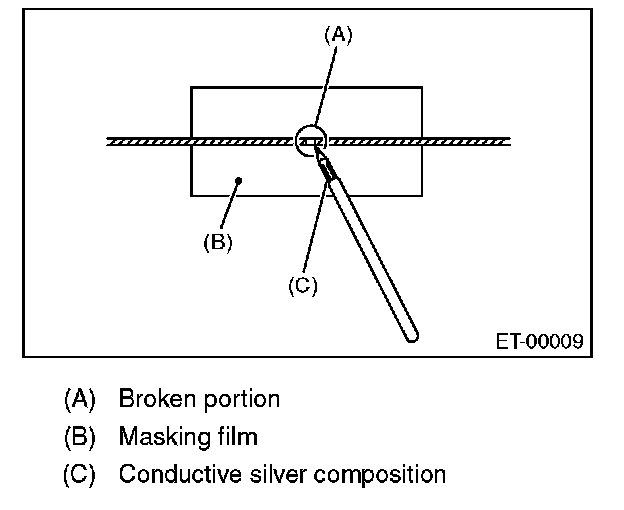

2. Paste a thin masking film on the glass along broken wire.
3. Apply the conductive silver composition (DUPONT No. 4817) on the broken portion with a drawing pen.






4. Dry out the deposited portion.
5. After repair has been completed, measure the resistance in repaired wire.
