Woofer

Woofer

REMOVAL

1. Disconnect the ground cable from battery.
2. Remove the quarter trim.
3. Remove the mounting screws (A) and nuts (B) for the woofer.

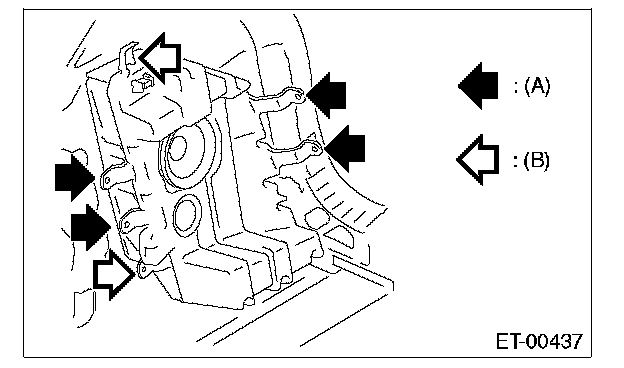

For high grade speakers

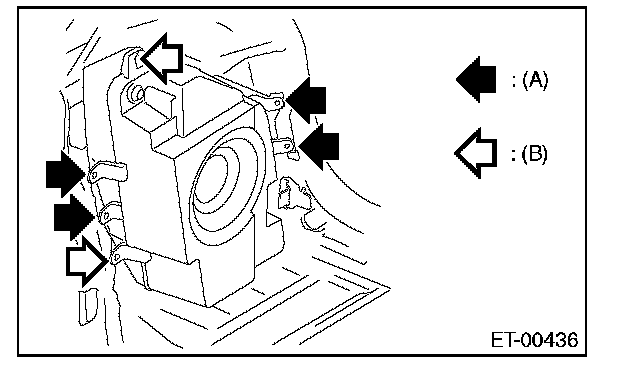

For harman/kardon speakers






4. Disconnect the harness connector and detach the woofers.

INSTALLATION

Install in the reverse order of removal.
