Sunroof / Moonroof Panel: Adjustments
GLASS LIDADJUSTMENT

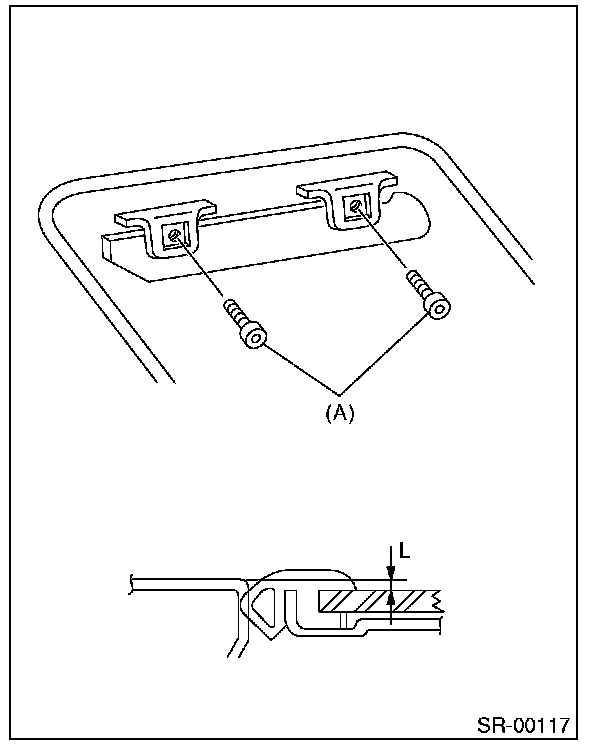

Loosen the glass lid mounting TORX(R) bolts (A), and then adjust the height with moving the lid. Difference in height between glass lid and roof panel L: 2.0 ± 1.0 mm (0.079 ± 0.039 in)
ADJUSTMENT

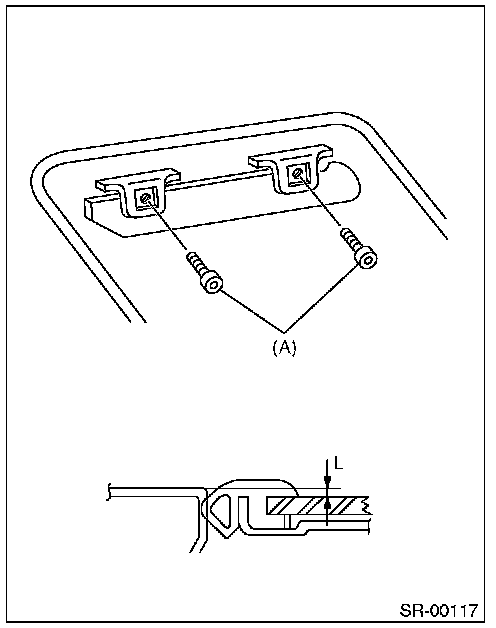

Loosen the glass lid mounting TORX(R) bolts (A), and then adjust the height with moving the lid. Difference in height between glass lid and roof panel L: 2.0 ± 1.0 mm (0.079 ± 0.039 in)
