Spoiler: Service and Repair

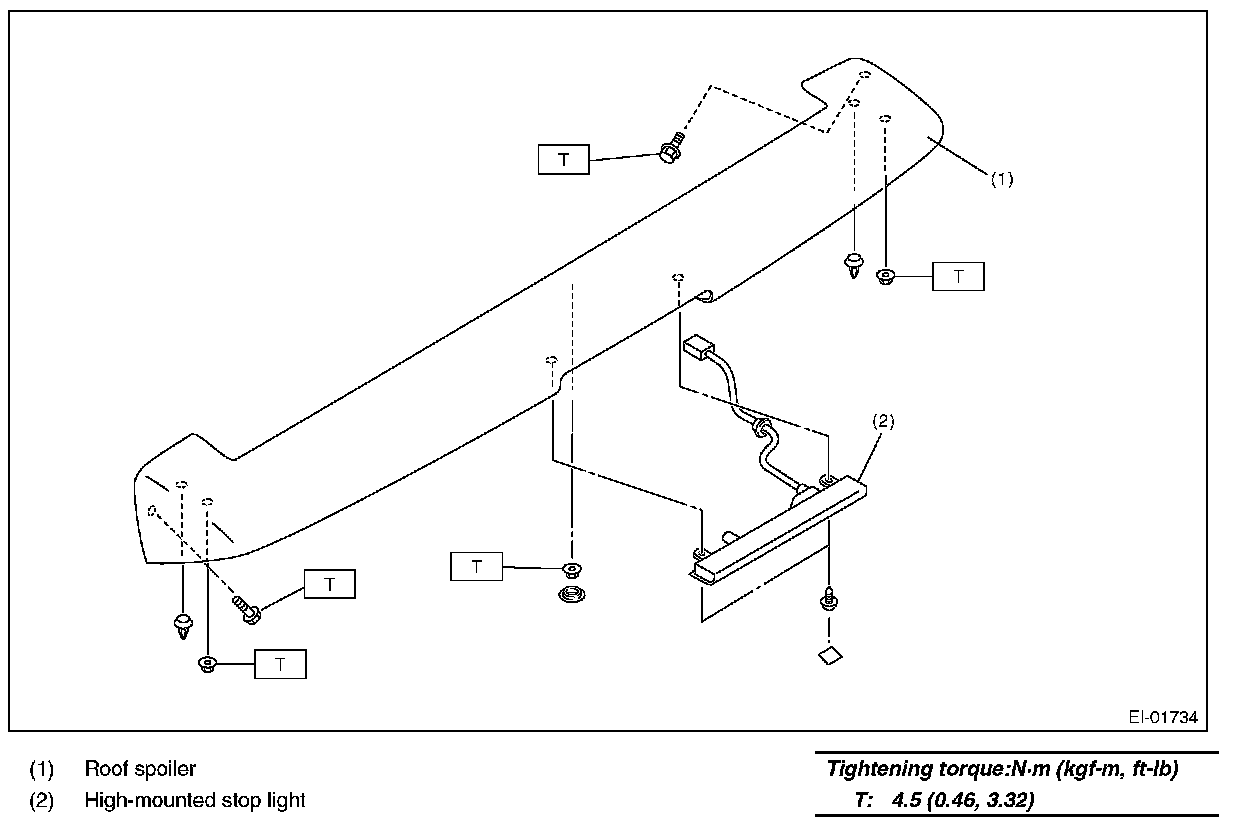

ROOF SPOILER

REMOVAL

1. Remove the rear gate upper trim
2. Disconnect the connector of high-mounted stop light.

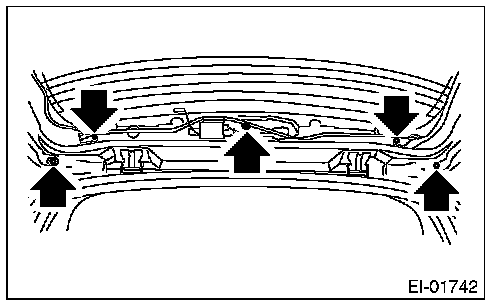

3. Remove the nut and bolt.

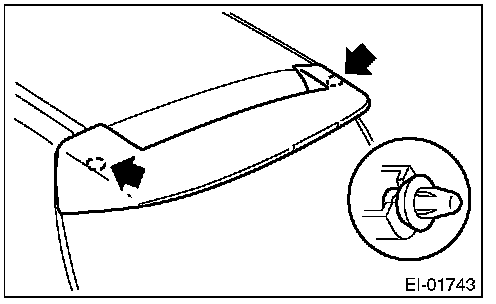

4. Remove the clips, and remove the roof spoiler.

INSTALLATION

Install in the reverse order of removal.

Tightening torque: 4.5 N.m (0.46 kgf-m, 3.32 ft-lb)
