Overhaul

Brake Pedal

INSPECTION

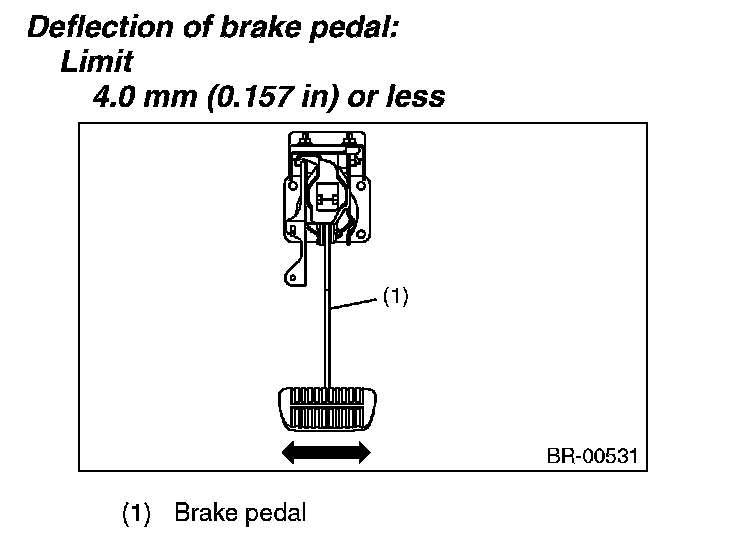

1) Move the brake pedal pads in a horizontal direction with a force of approx. 10 N (1 kgf, 2 lb), and check that the pedal deflection is in the range of specifications.

CAUTION:
If excessive deflection is noted, replace with a new bushing.

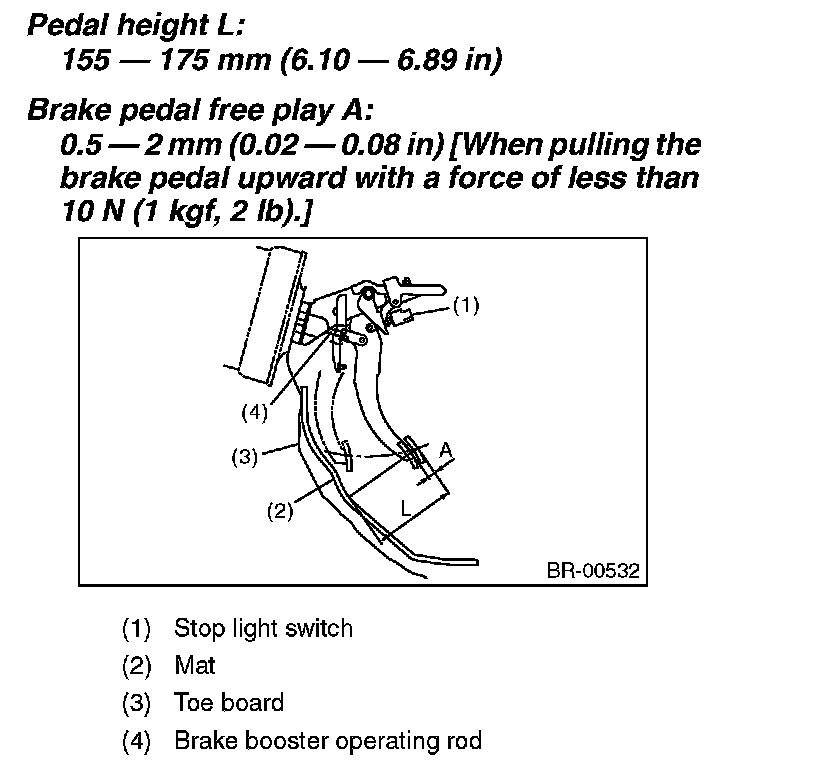

2) Check the position of the pedal pad.





3) If it is not within the specification, adjust it by adjusting the brake booster operating rod length.
