B31-B431 & AB1-AB35
B31-B431 & AB1-AB35
Bulkhead Wiring Harness (In Compartment)

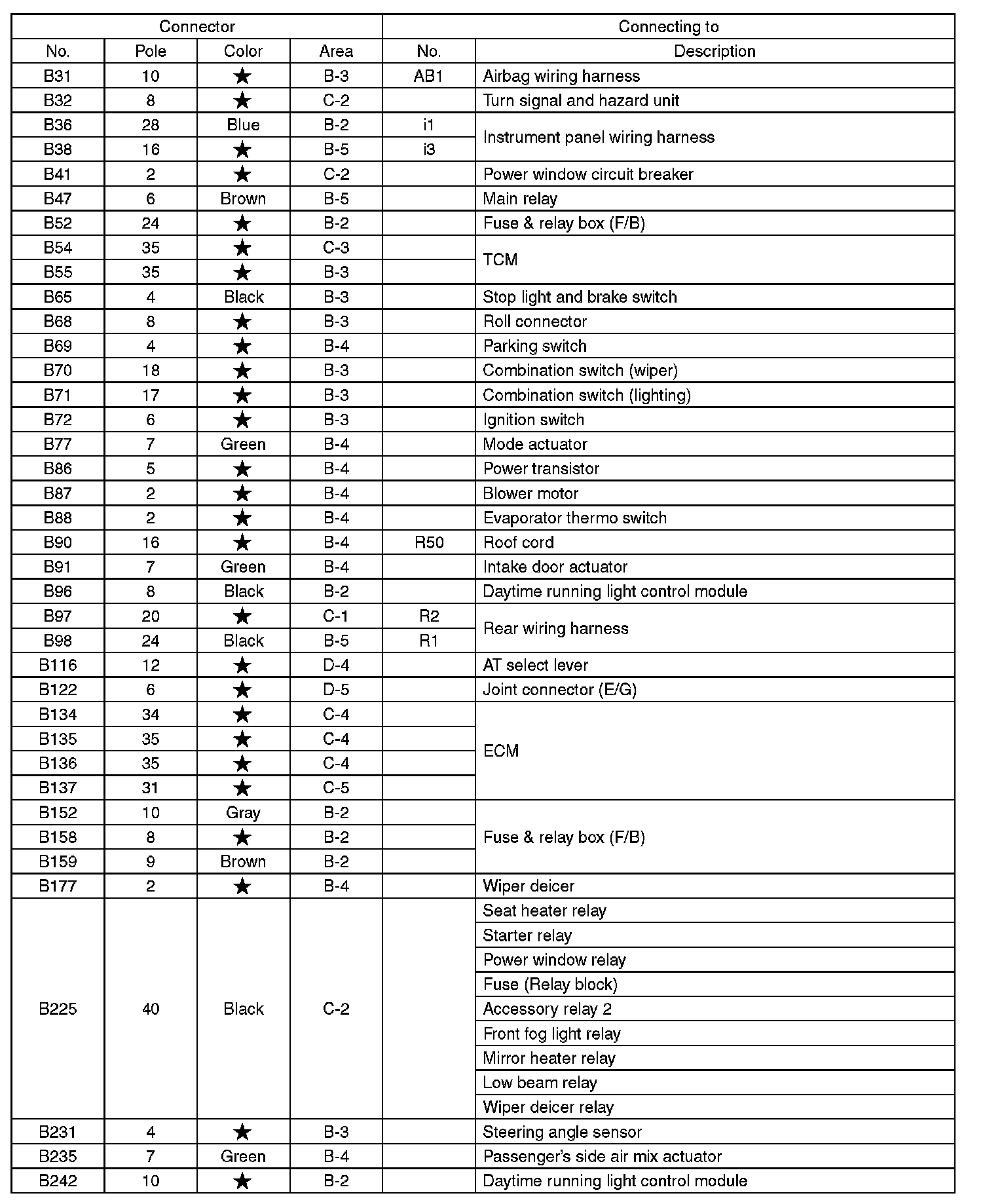

B31-B242:

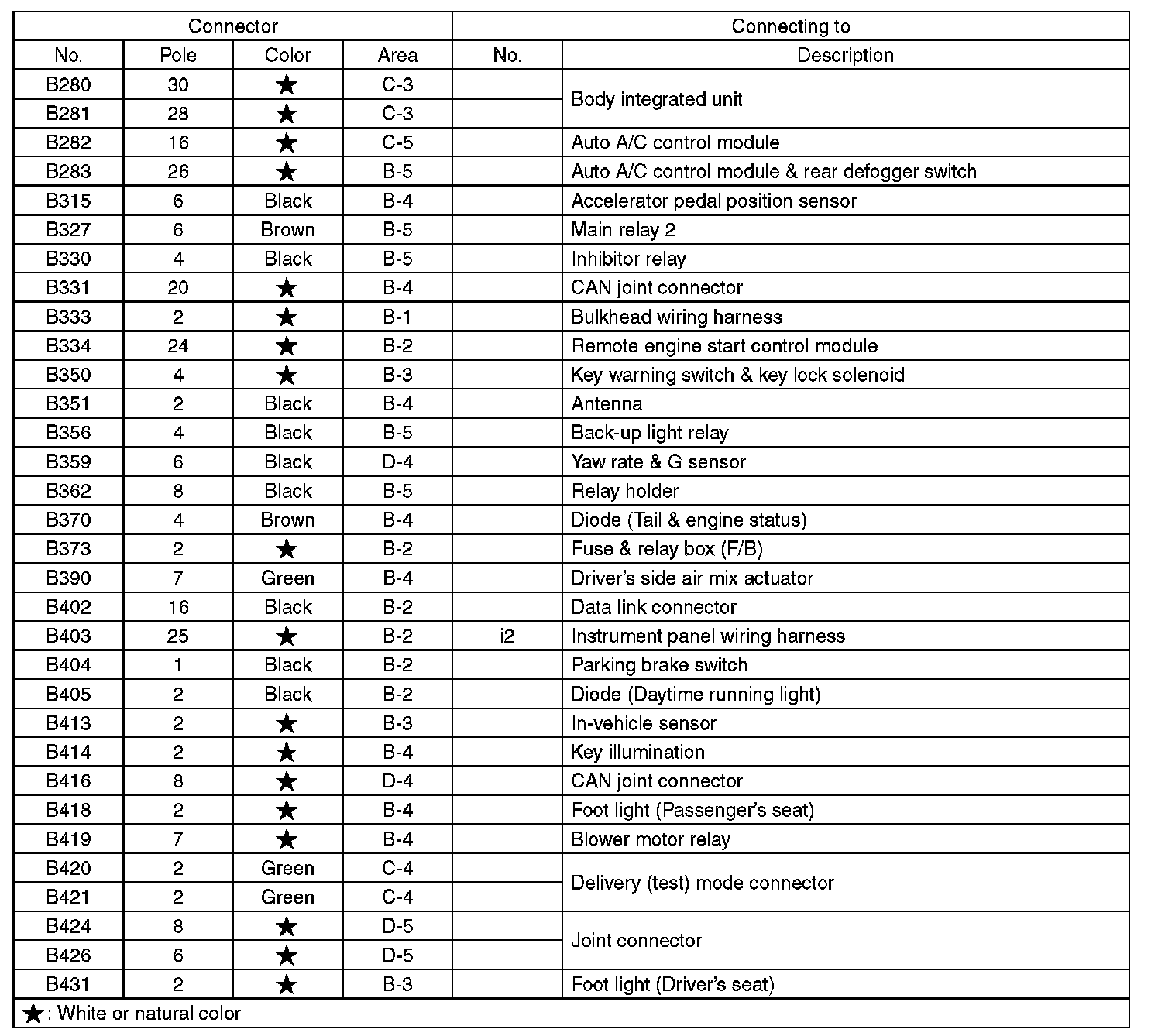

B280-B431:

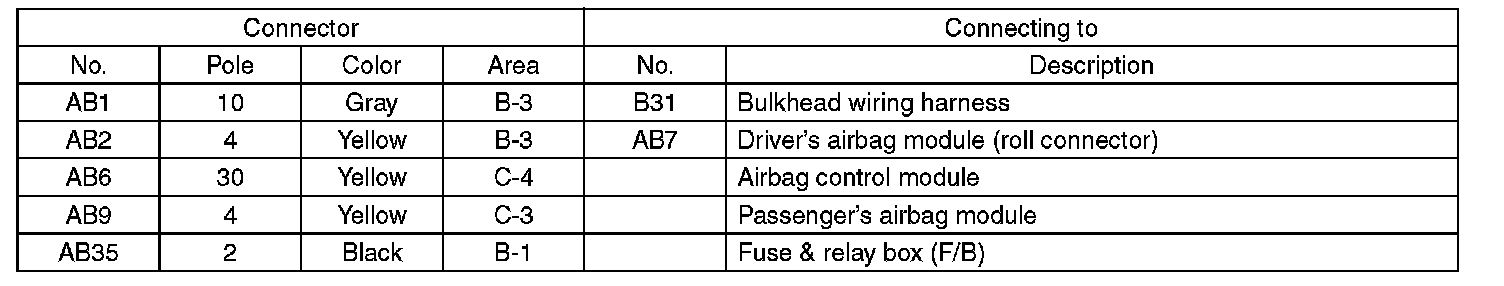

AB1-AB35:
Area View:
