Assembly
Rear Trailing LinkASSEMBLY

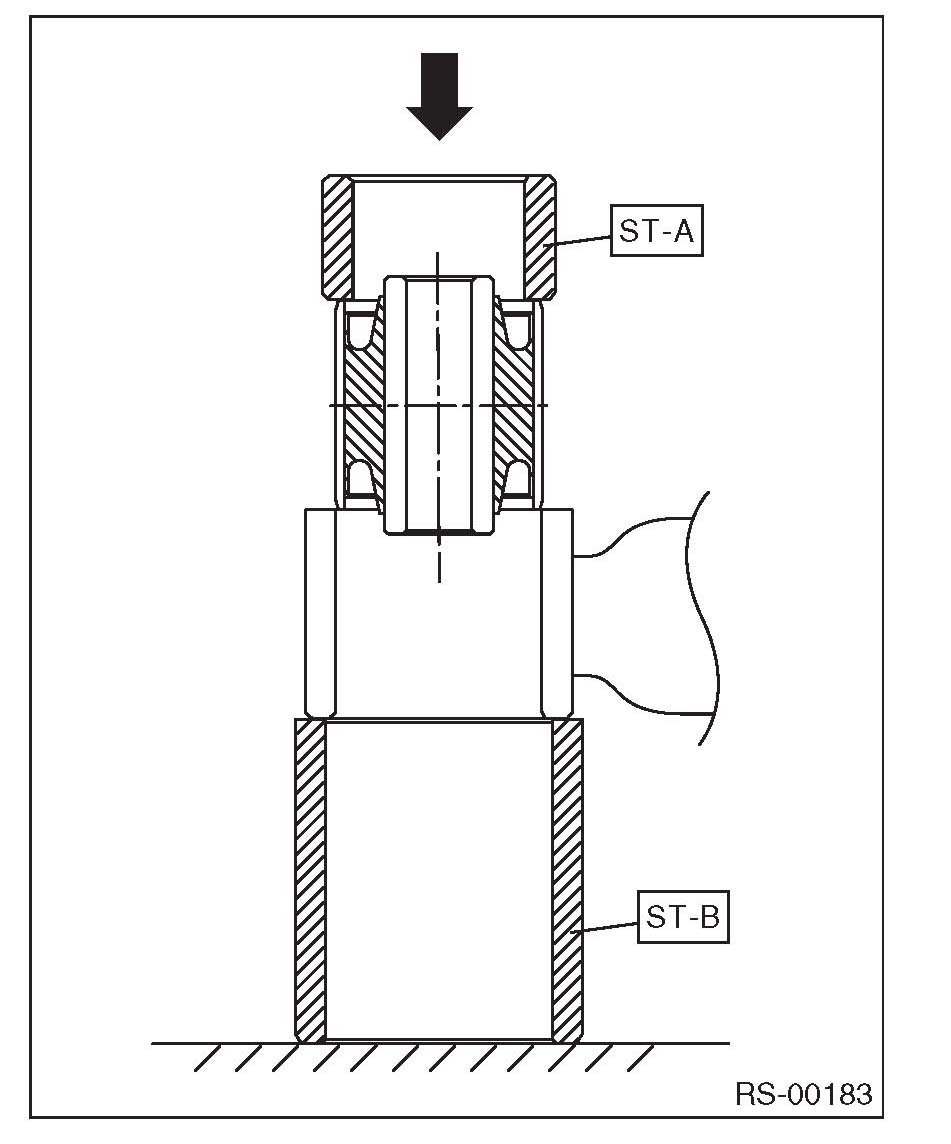

REAR TRAILING LINK BUSHING
Using the ST A and ST B, press-fit the bushing.
STA 20099AE040 INSTALLER & REMOVER
STB 20099PA010 INSTALLER & REMOVER
CAUTION:
Press the bushing straight in.

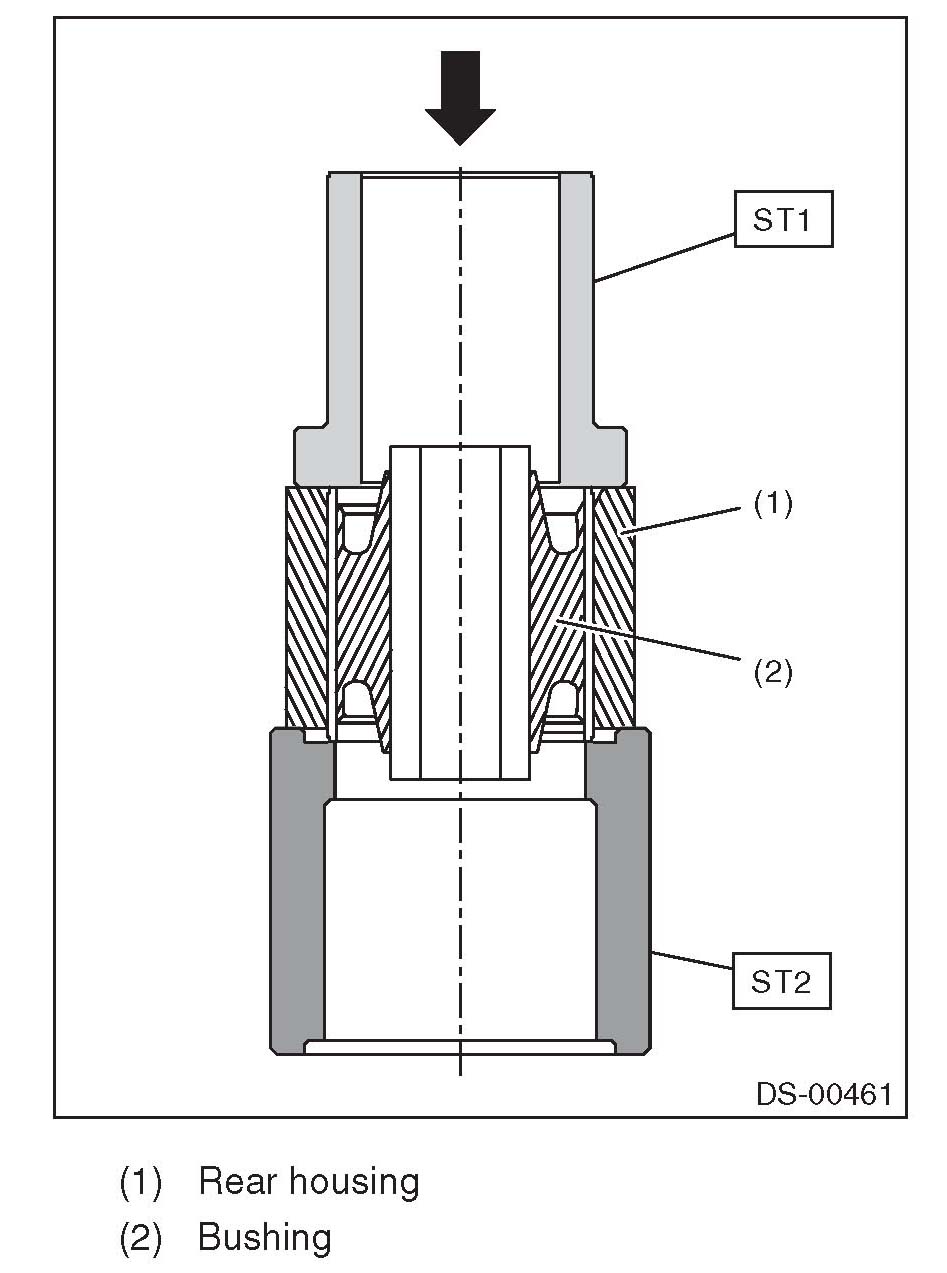

REAR HOUSING BUSHING
Using the ST and a hydraulic press, press the bushing into place.
ST1 20099FG000 BUSHING REMOVER
ST2 20099PAl10 INSTALLER & REMOVER (BASE)
CAUTION:
Press the bushing straight in.
