Wiper Blade Heater: Testing and Inspection

WIPER DEICER SYSTEM

INSPECTION

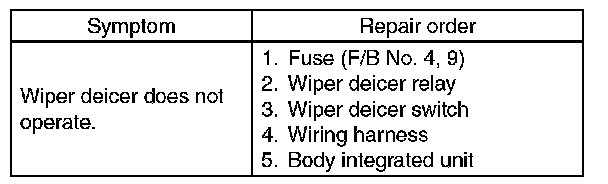

1. SYSTEM INSPECTION

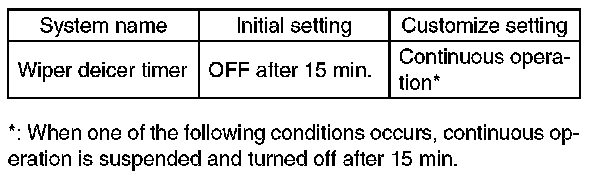

NOTE: Wiper deicer system can be customized on the Subaru Select Monitor.







- Ambient temperature at 5 °C (41 °F) or more continues for 10 seconds
- Air conditioner ECO mode ON continues for 10 seconds
- Malfunction occurs on ambient sensor.
- Vehicle speed below 15 km/h (9 MPH) continues 15 min.
- Malfunction occurs in CAN communication.

2. HEAT WIRE INSPECTION

Refer to "HEAT WIRE INSPECTION" of "Rear Window Defogger System". {Ref. to GW-27, INSPECTION, Rear Window Defogger System.} Testing and Inspection

NOTE: For heat wire inspection, removing and installing the instrument panel assembly are required.
