Wastegate Solenoid: Testing and Inspection
Wastegate Control Solenoid ValveINSPECTION
1. Check that the wastegate control solenoid valve has no deformation, cracks or other damages.

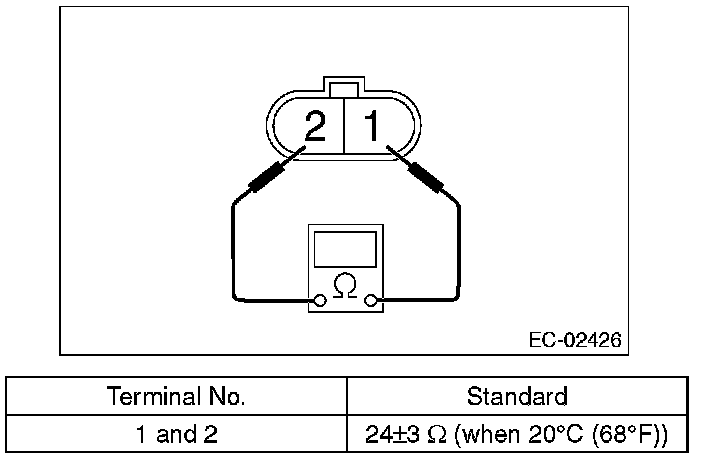

2. Check the resistance between the wastegate control solenoid valve terminals.

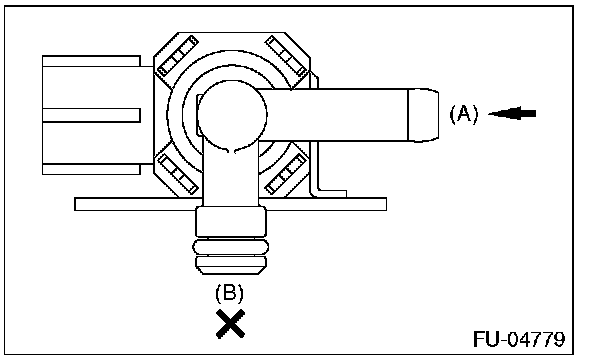

3. Check that air does not come out from (B) when air is blown into (A).

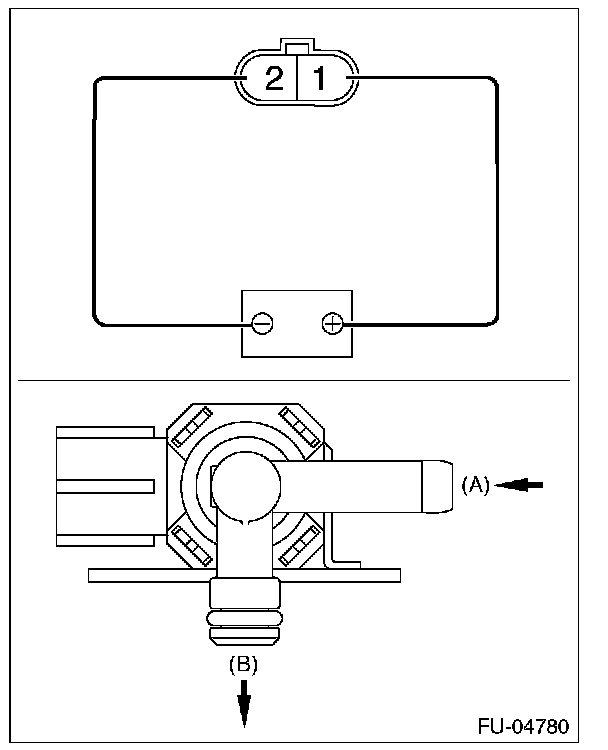

4. With terminal No. 1 connected to the battery positive terminal and terminal No. 2 to the battery ground terminal, check that air comes out from (B) when air is blown into (A).
