Mud Flap: Service and Repair

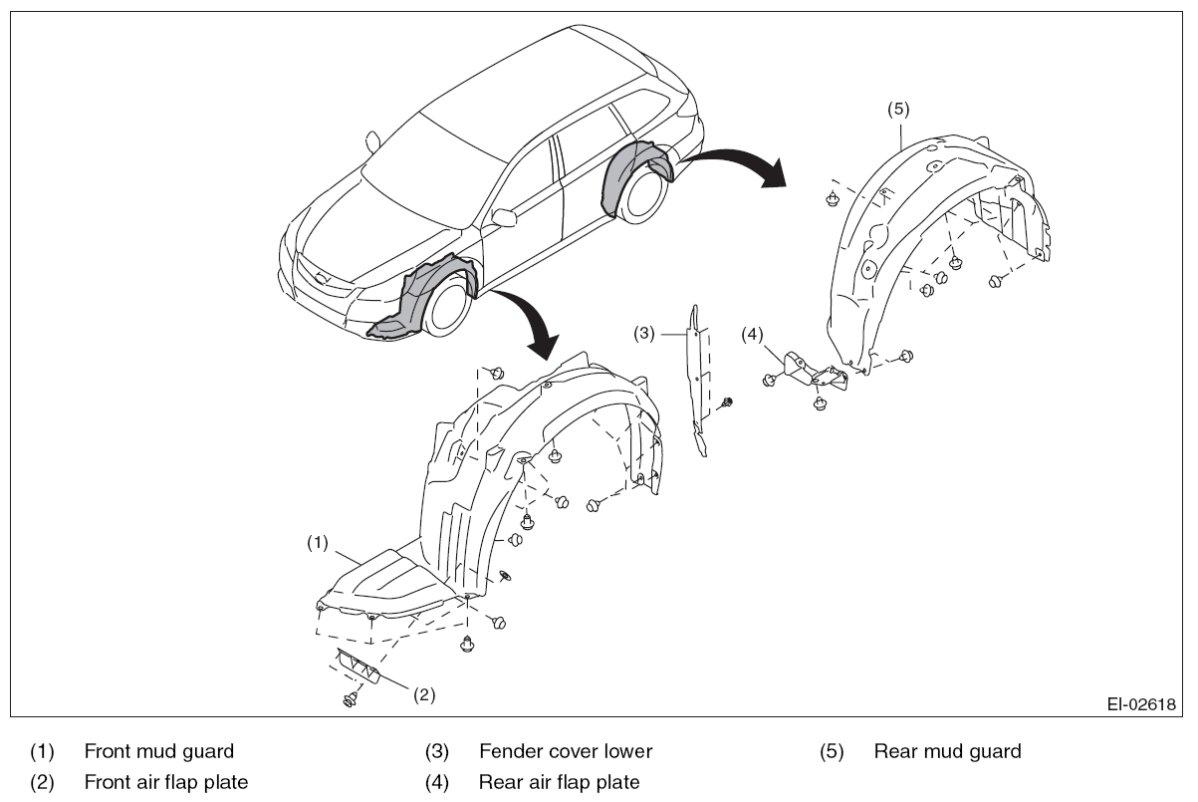

Mud Guard

Mud Guard:

REMOVAL

1. Lift up the vehicle.
2. Remove the wheels.
3. Remove the clips, and remove the mud guard.







INSTALLATION

Install each part in the reverse order of removal.

Tightening torque: Wheel nut: 120 N.m (12.24 kgf-m, 88.5 ft-lb)
