Heating and Air Conditioning: Locations
Electrical Component Location
LOCATION
1.

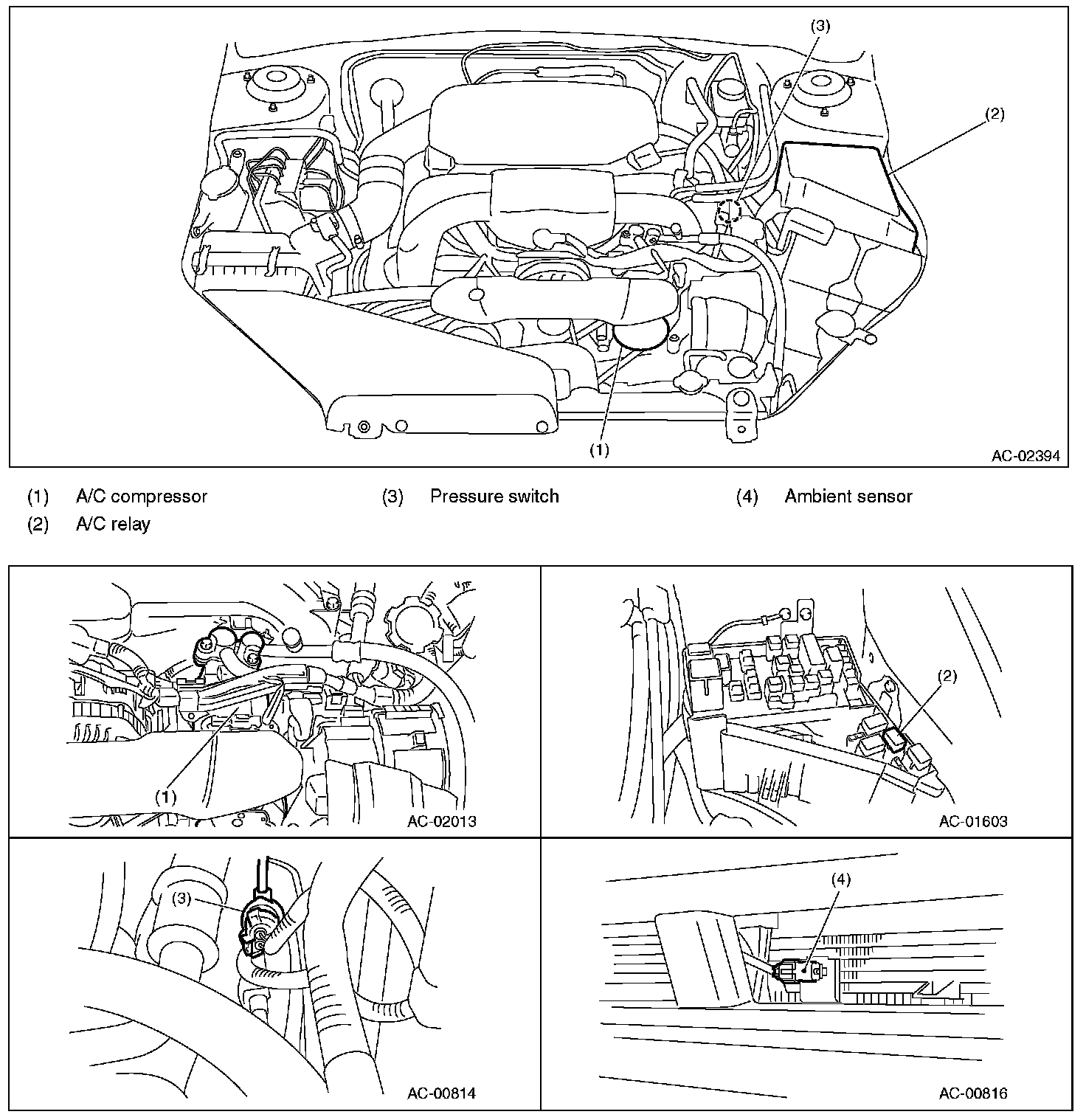

ENGINE COMPARTMENT
2.

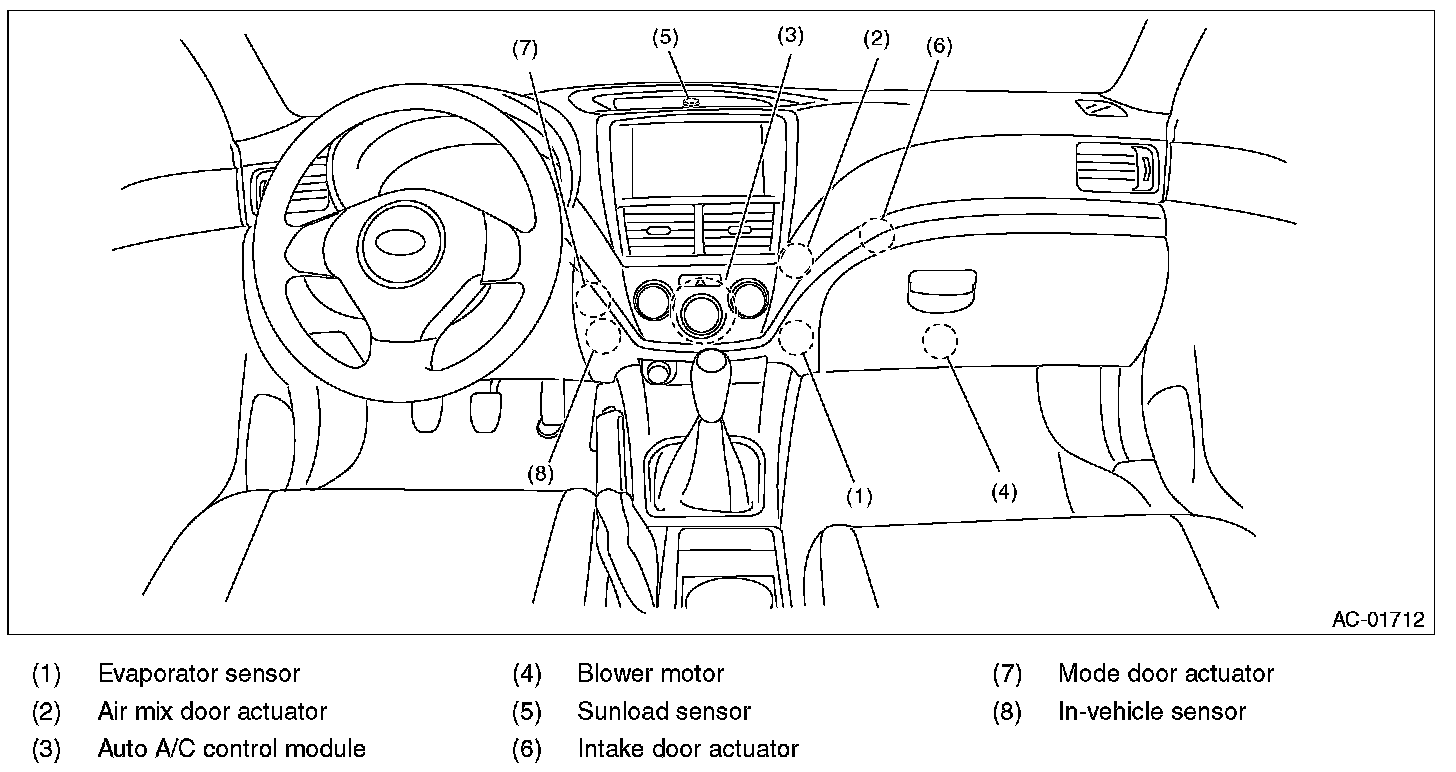

COMPARTMENT
