Diesel Data
: Automotive Repair
Home
>>
Subaru
>>
2011
>>
Outback Sport F4-2.5L SOHC
>>
Repair and Diagnosis
>>
Locations
>>
Connector Locations
>>

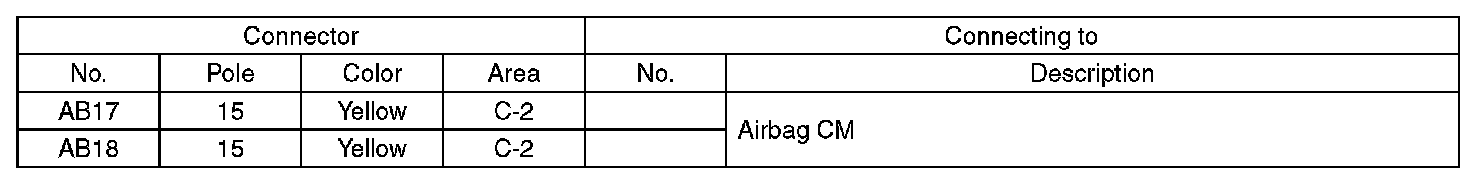

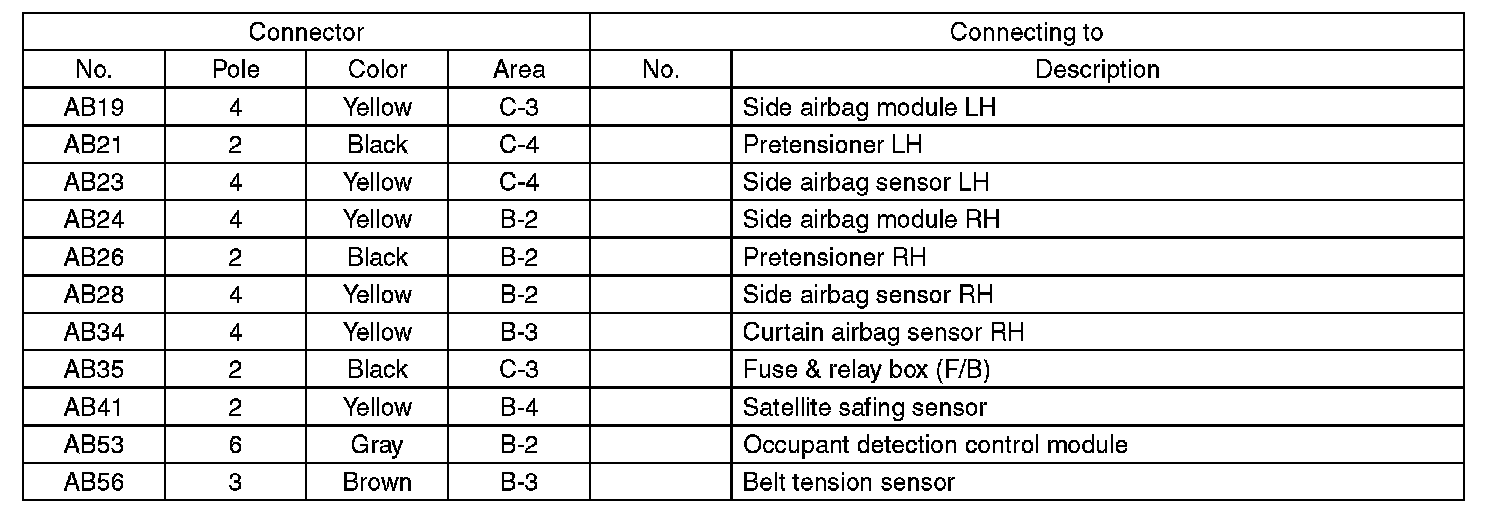

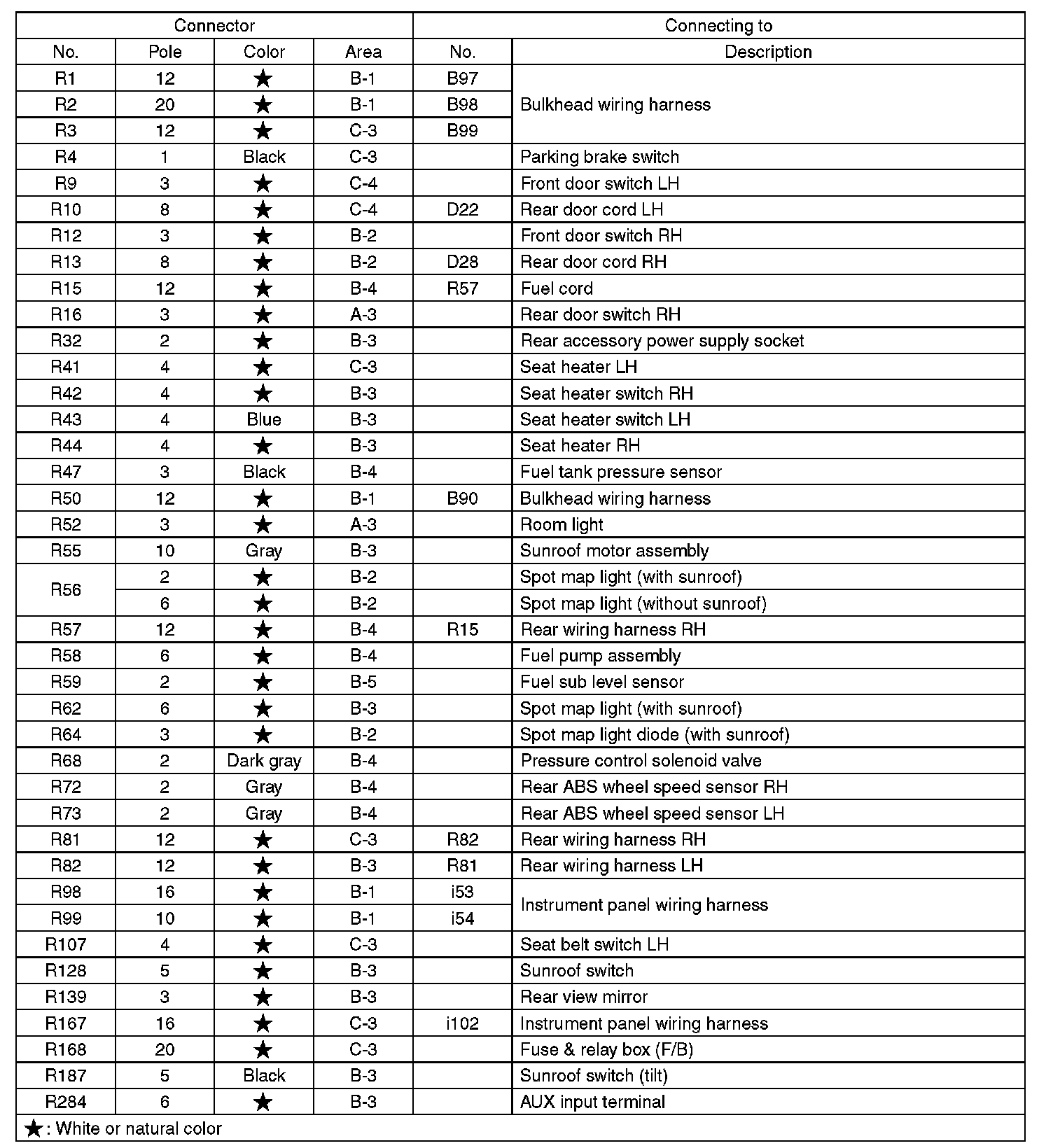

R1-R284 & AB17-AB56
R1-R284 & AB17-AB56
Rear Wiring Harness
