Subaru
>>
2011
>>
Outback Sport F4-2.5L SOHC
>>
Repair and Diagnosis
>>
Locations
>>
Connector Locations
>>

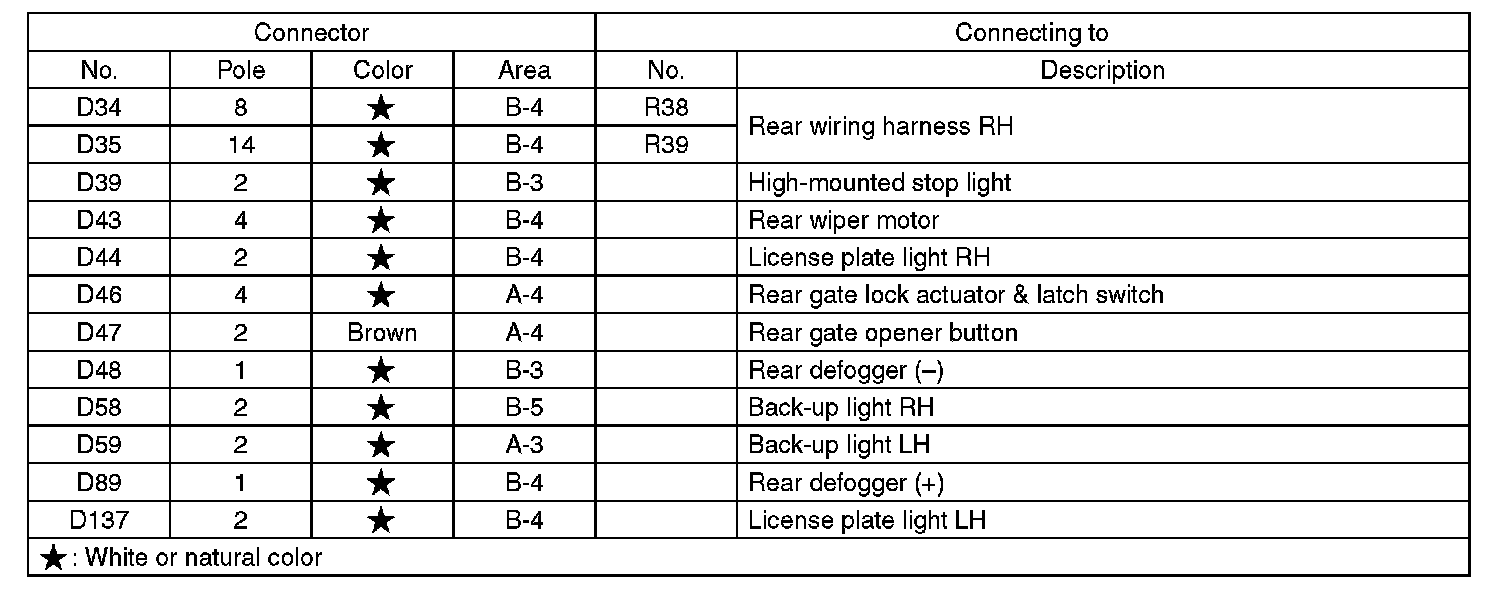

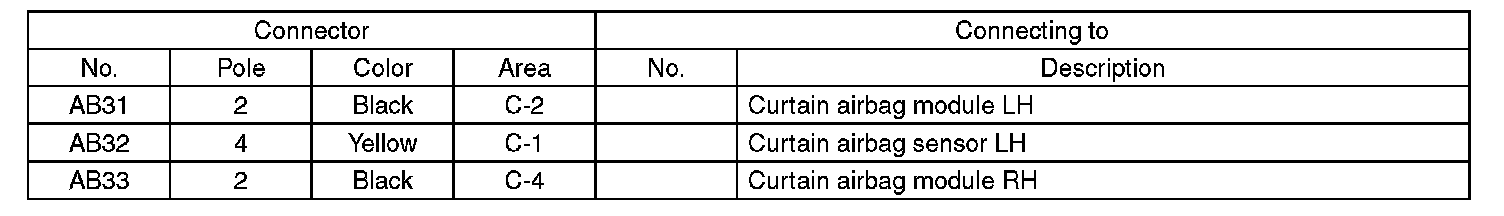

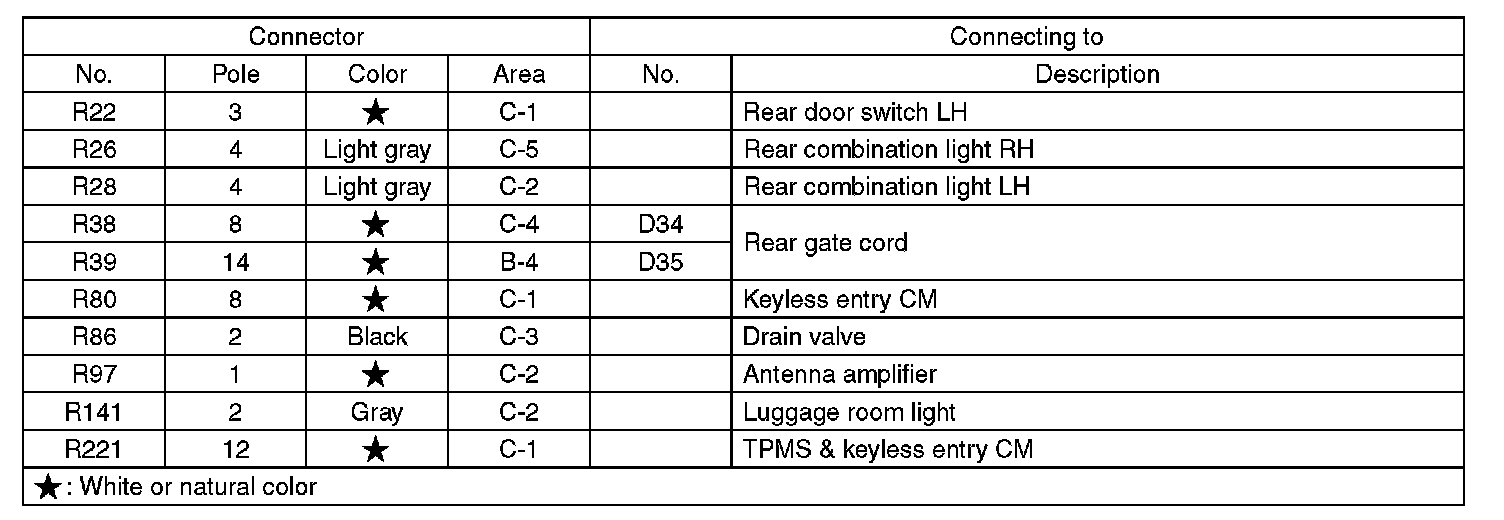

R22-R221 & D34-D137 & AB31-AB33
R22-R221 & D34-D137 & AB31-AB33

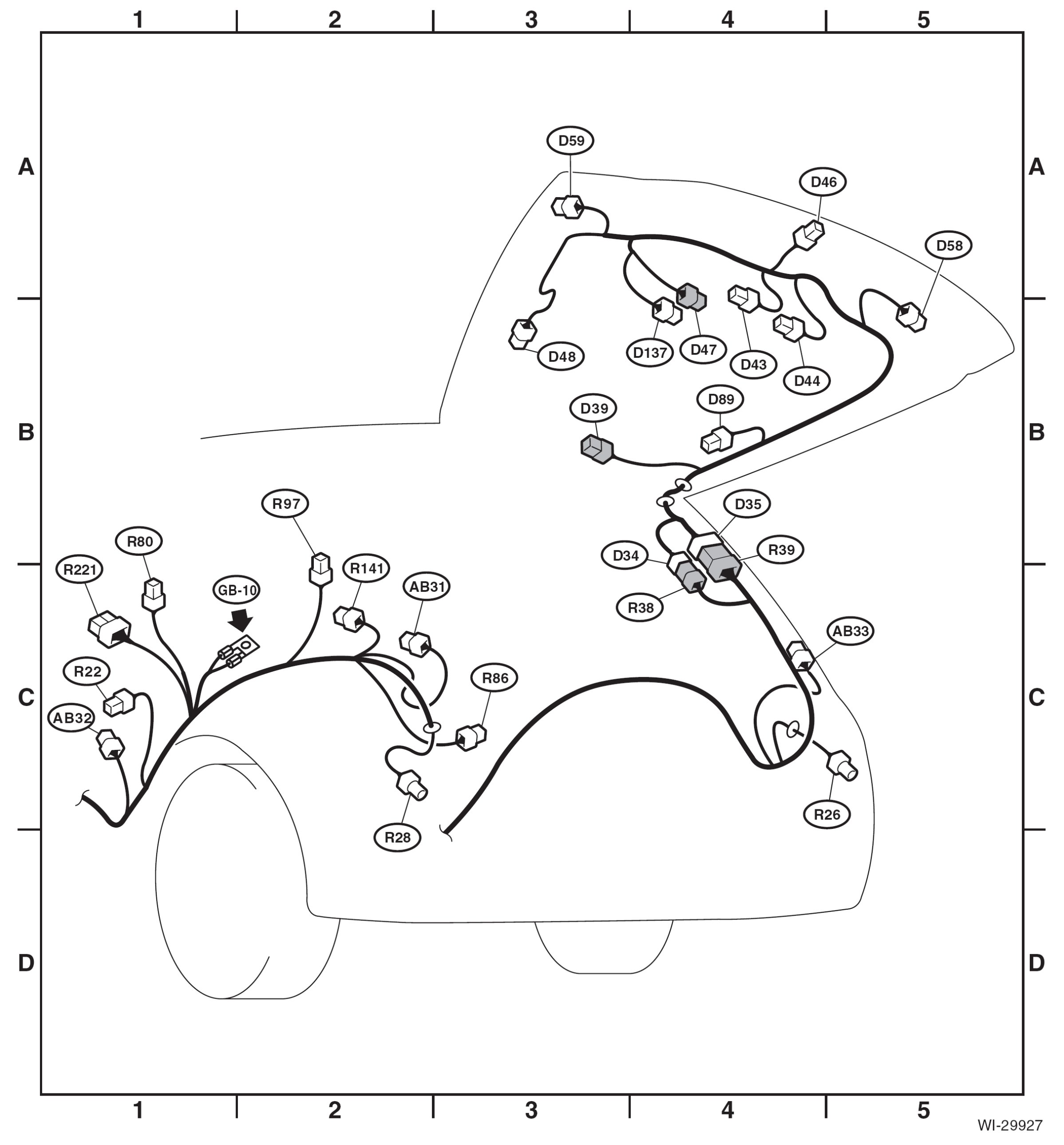

Rear Wiring Harness and Rear Gate Cord
