Overhaul

Drain Separator

DISASSEMBLY
1. Disconnect the drain hose from the drain separator.

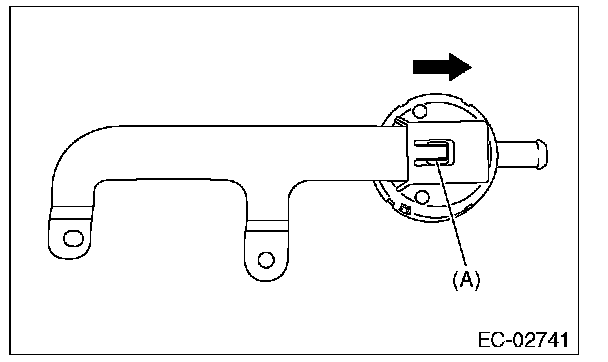

2. Lift up the claw (A) of the drain separator and slide the drain separator in the direction of the arrow to remove the drain separator.






ASSEMBLY
Assemble in the reverse order of disassembly.
