Rear Seat Belt

Rear Seat Belt

REMOVAL

1. OUTER SEAT BELT ASSEMBLY RH & LH
1. Remove the luggage floor mat.
2. Remove the rear seat cushion.

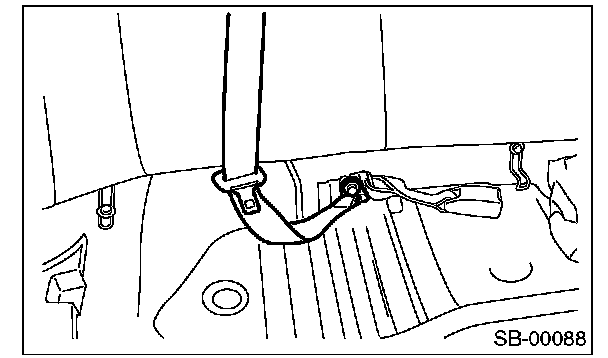

3. Remove the seat belt lower anchor bolt.






4. Remove the rear quarter trim.
5. Remove the outer seat belt assembly.

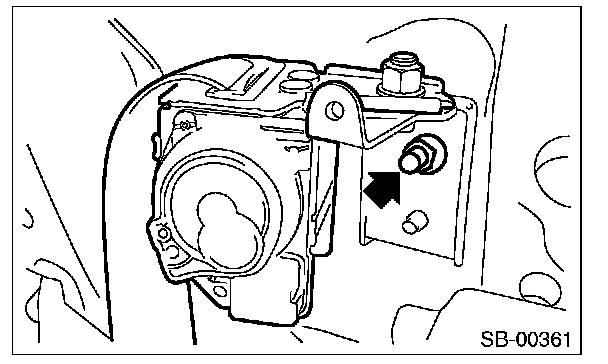

- 5 DOOR MODEL

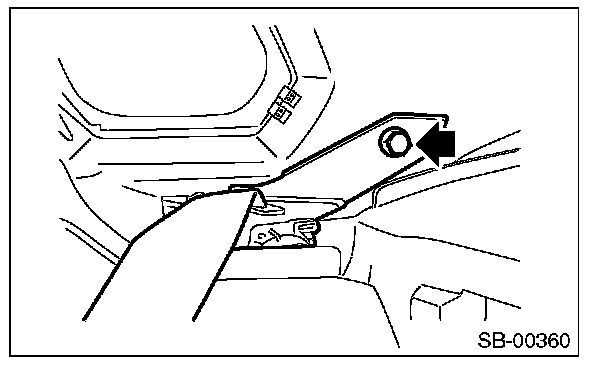

Remove the nut.






CAUTION: Do not remove the bolt and nut securing the retractor and bracket.






- 4 DOOR MODEL

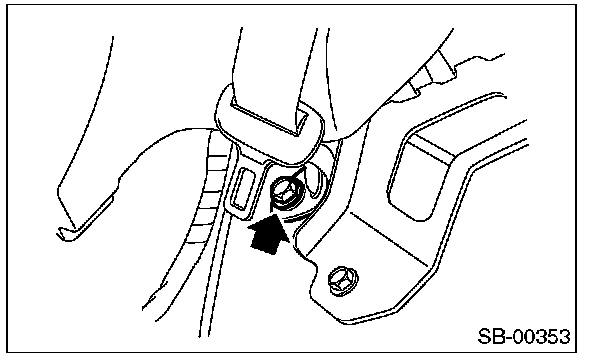

Remove the bolt.






2. SHOULDER SEAT BELT CENTER ASSEMBLY (5 DOOR MODEL)

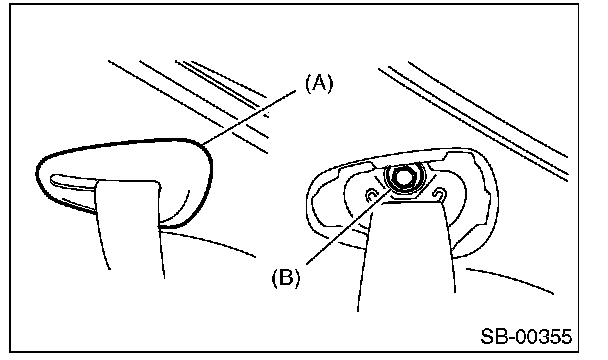

1. Remove the shoulder anchor bolt cover (A).
2. Remove the shoulder anchor bolt (B) and remove the shoulder anchor from the quarter pillar.






3. Remove the rear quarter trim.

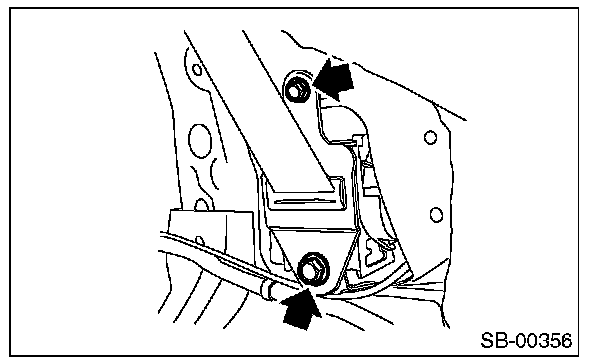

4. Remove the bolts, and then detach the outer seat belt center assembly.






3. SHOULDER SEAT BELT CENTER ASSEMBLY (4 DOOR MODEL)
1. Remove the rear seat.
2. Remove the rear quarter trim.
3. Remove the rear shelf trim.

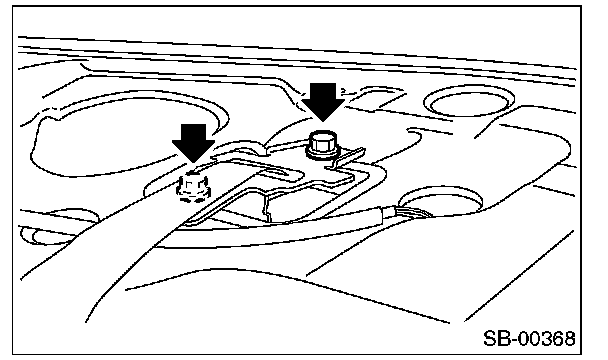

4. Remove the bolts, then remove the shoulder seat belt assembly.






5. Remove the seat belt lower anchor bolt.






4. CENTER SEAT BELT ASSEMBLY
1. Remove the rear seat cushion.

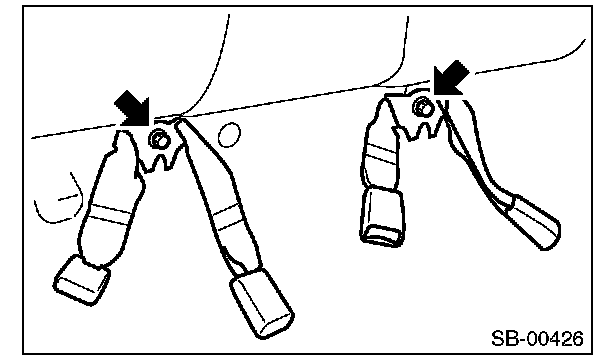

2. Remove the bolts, then remove the center seat belt assembly.






INSTALLATION

CAUTION:
- During installation, make sure that the seat belts are not twisted.
- After installation, make sure that the seat belts are smoothly extended and wound.
- Make sure that the center seat belt is securely installed.

1. Install each part in the reverse order of removal.

REAR SEAT BELT
Tightening torque:
T1: 30 N.m (3.1 kgf.m, 22.1 ft.lb)
T2: 53 N.m (5.4 kgf.m, 39.1 ft.lb)

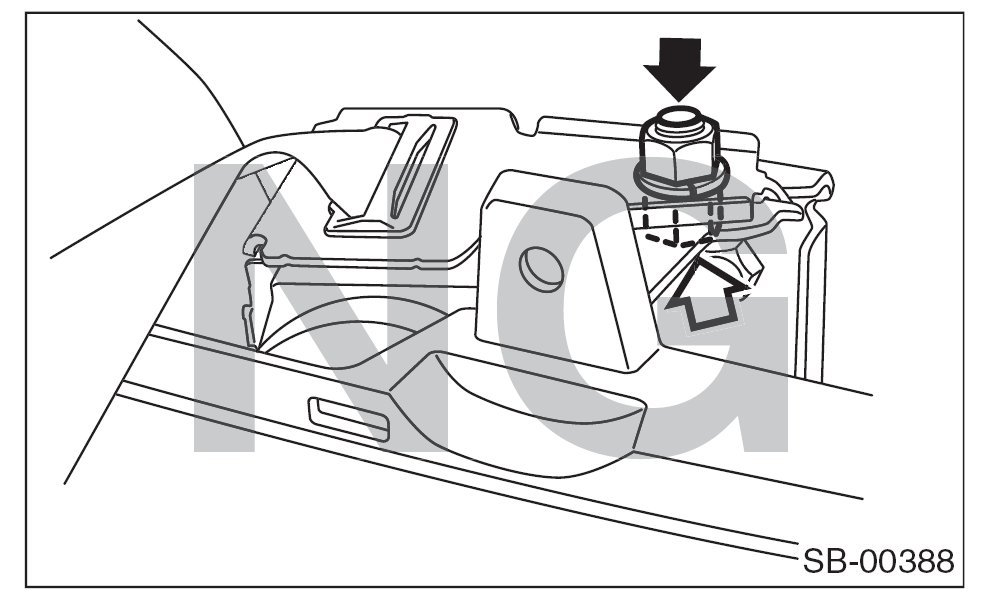

2. Turn the seat belt as shown in the figure.

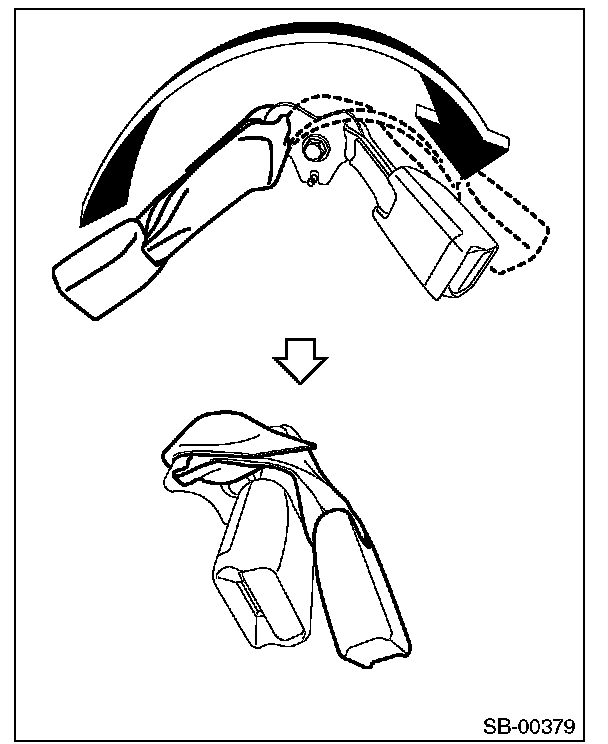

- LH side

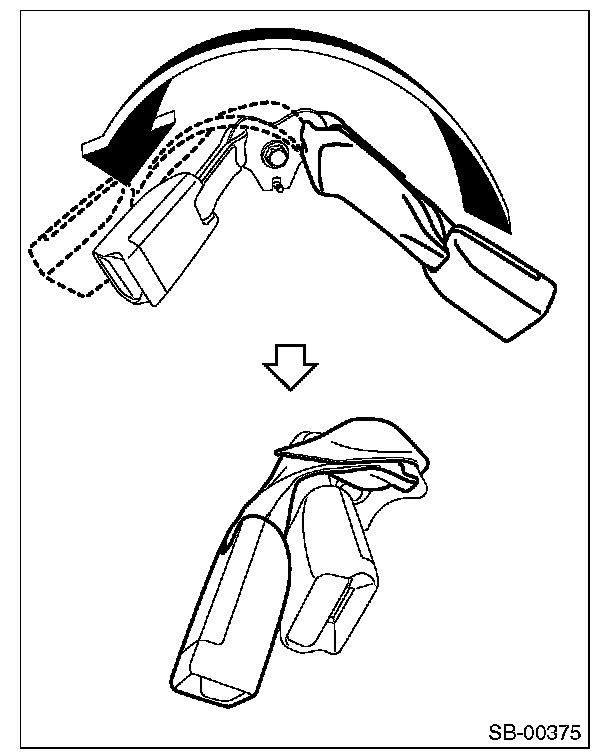

- RH SIDE (5 DOOR MODEL ONLY)






3. Install the seat cushion and pull out the center seat belt assembly.

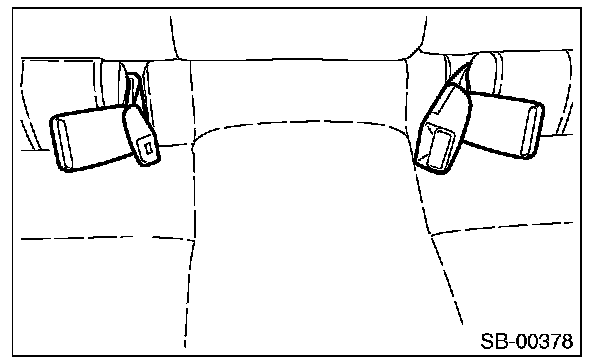

- 5 door model

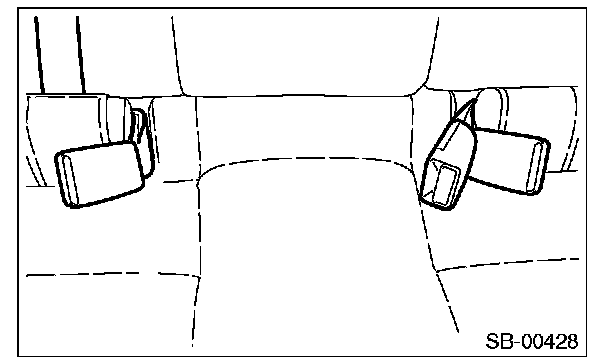

- 4 door model
