Rear Hub Unit Bearing
Rear Hub Unit BearingREMOVAL
1) Lift up the vehicle, and then remove the rear wheels.
2) Lift the crimped section of axle nut.
3) Remove the axle nut using a socket wrench while depressing the brake pedal.
CAUTION:
Do not loosen the axle nut while the rear axle is loaded. Doing so may damage the hub bearing.

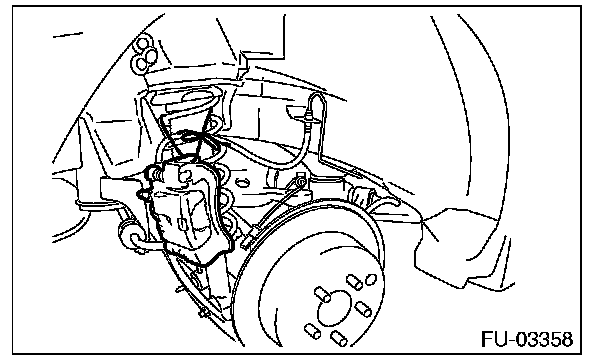

4) Remove the disc brake caliper from the rear housing, and suspend it from vehicle using a string. (Disc brake model)
5) Remove the rear disc rotor. (Disc brake model)
6) Remove the brake drum. (Drum brake model)
7) Remove the four bolts from the rear housing.

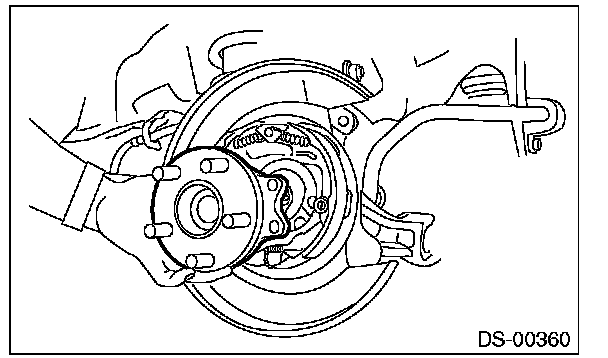

8) Remove the rear hub unit bearing.
CAUTION:

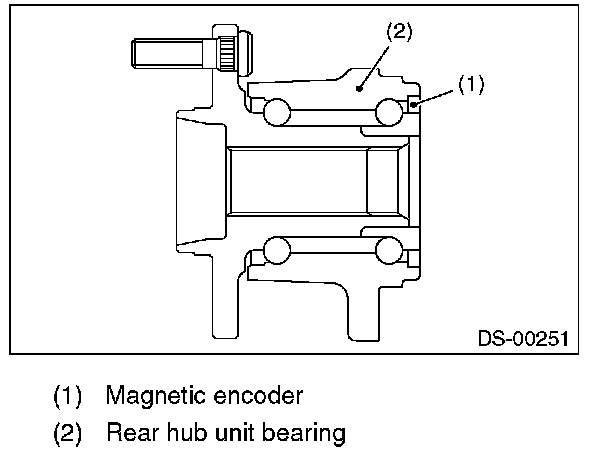

^ Be careful not to damage the magnetic encoder.
^ Do not get closer the tool which charged magnetism to magnetic encoder.
NOTE:

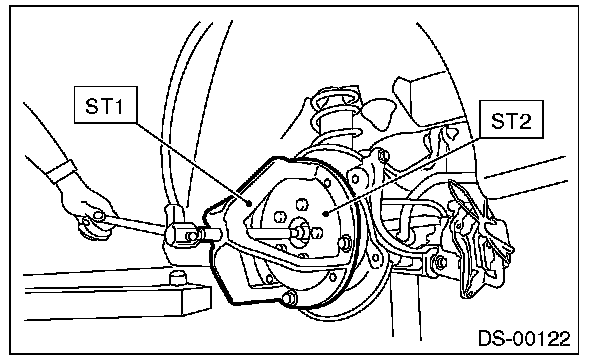

If it is hard to remove, use the ST.
ST1 926470000 AXLE SHAFT PULLER
ST2 28099PA110 AXLE SHAFT PULLER PLATE
INSTALLATION
1) Aligning with the mounting hole of the rear brake back plate, temporarily tighten the rear hub unit bearing to the rear housing.
CAUTION:
^ Be careful not to damage the magnetic encoder.
^ Do not get closer the tool which charged magnetism to magnetic encoder.
2) Tighten the four bolts of the rear housing.
Tightening torque:
65 Nm (6.6 kgf-m, 47.9 ft-lb)
3) Tighten the new axle nut temporarily.
CAUTION:
Use new axle nuts.
4) Install the rear disc rotor. (Disc brake model)
5) Install the rear brake drum. (Drum brake model)
6) Install the disc brake caliper on the rear housing. (Disc brake model)
Tightening torque:
66 Nm (6.7 kgf-m, 48.7 ft-lb)
7) While pressing the brake pedal, tighten the new axle nuts to the specified torque.
CAUTION:
Do not apply weight to the rear axle before tightening the axle nut. Doing so may damage the hub bearing.
Tightening torque:
190 Nm (19.4 kgf-m, 140.1 ft-lb)
8) After tightening the axle nut, lock it securely.
9) Install the rear wheels.
Tightening torque:
100 Nm (10.2 kgf-m, 73.8 ft-lb)
