Radio Antenna Feeder Cable Inspection

Radio Antenna Feeder Cable Inspection

Radio Antenna Feeder Cable (Instrument Panel)

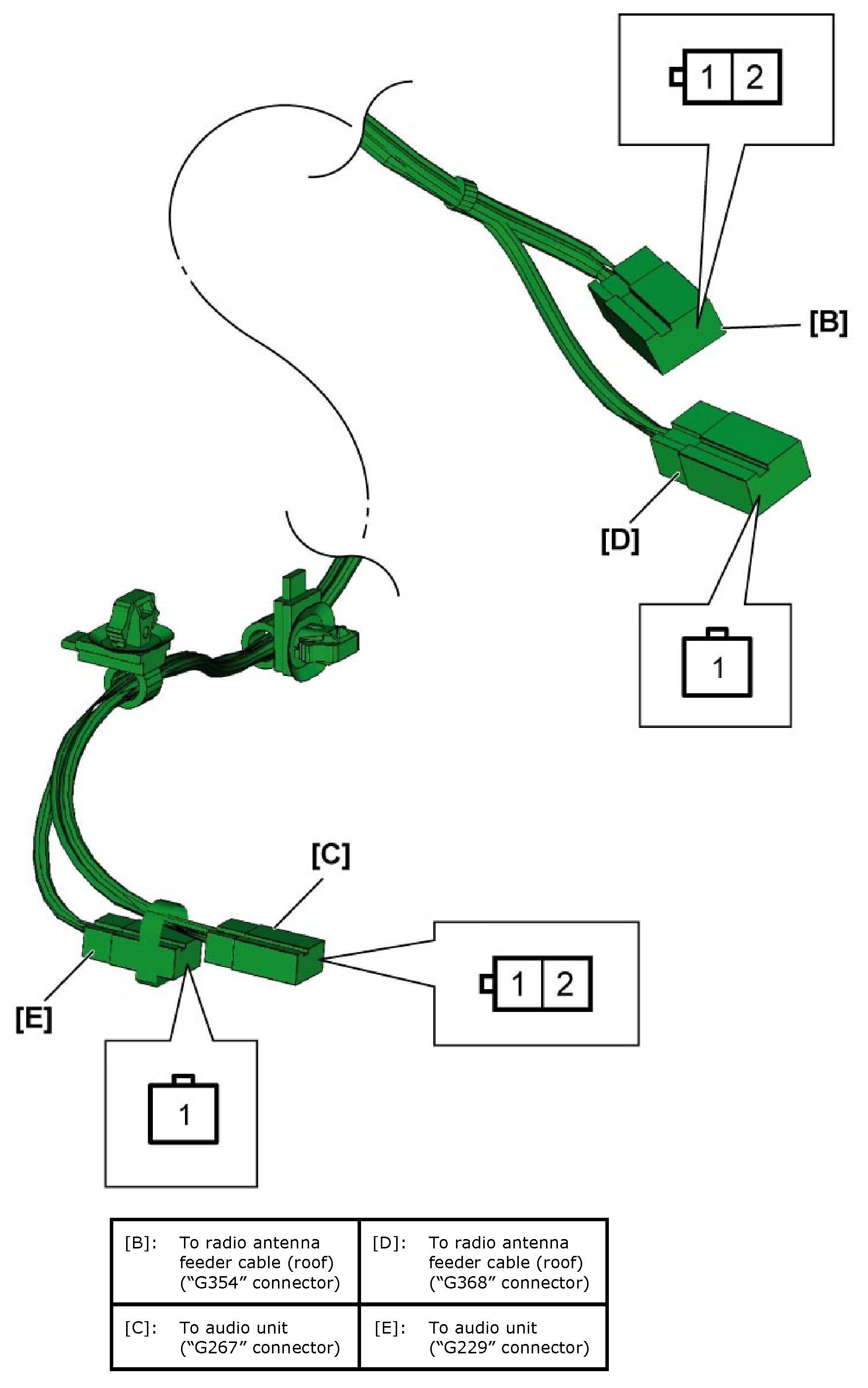

Disconnect radio antenna feeder cable (instrument panel) and check continuity as shown in figure. If check result is not as specified, replace radio antenna feeder cable (instrument panel).

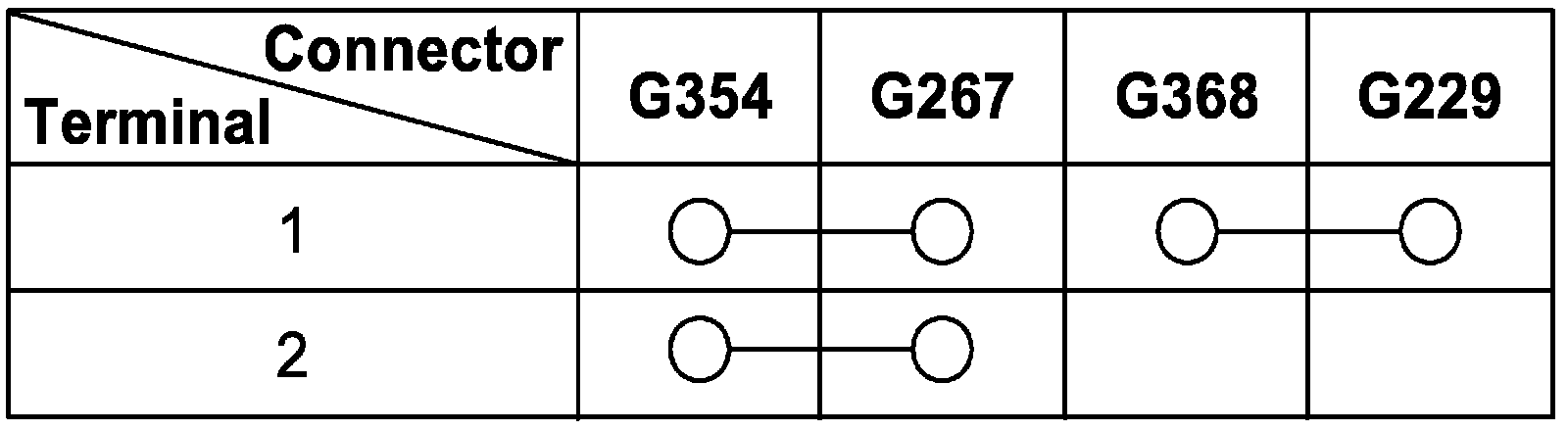

Radio antenna feeder cable (instrument panel) continuity

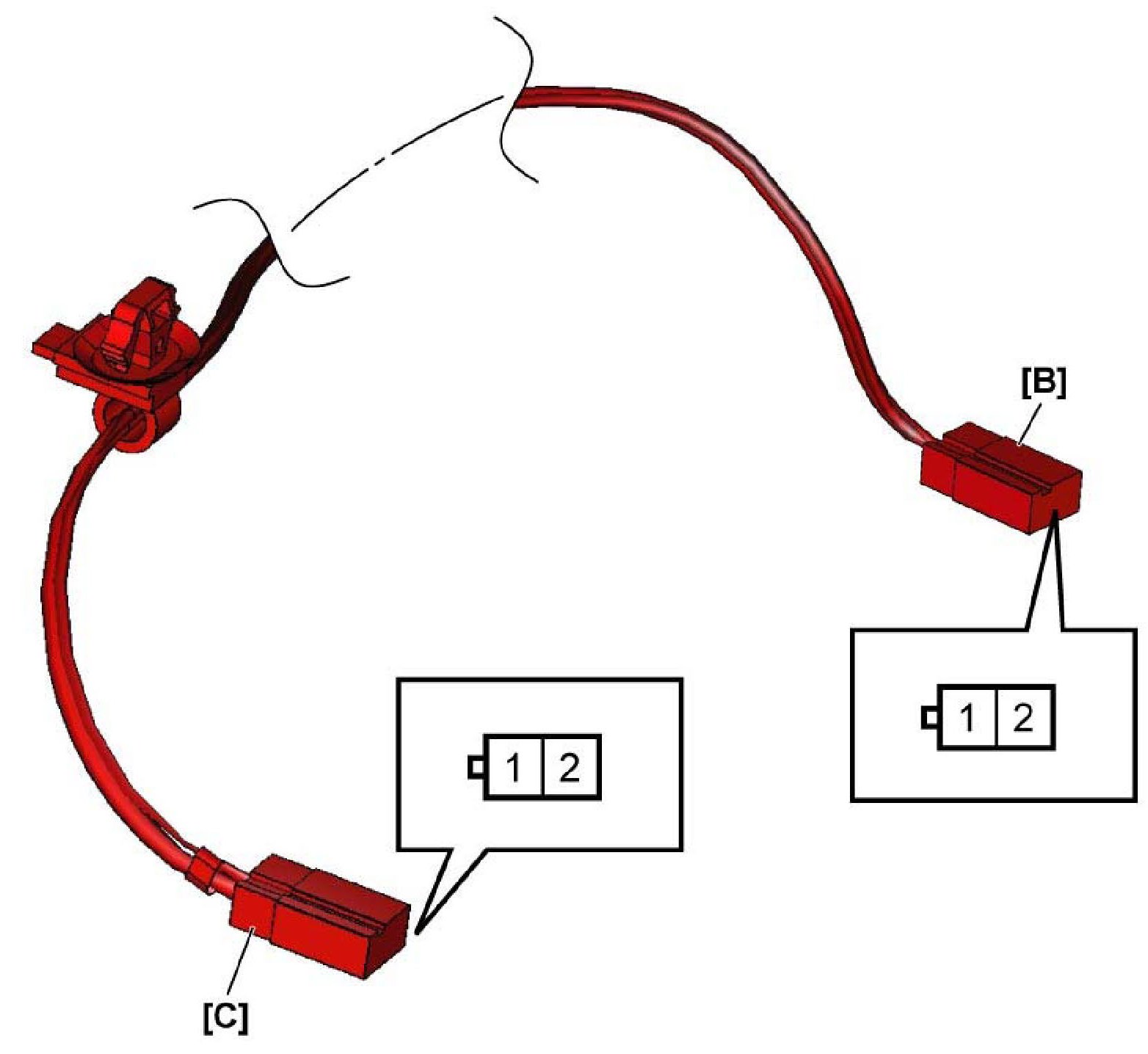

Without XM antenna

Radio Antenna Feeder Cable (Roof)
Disconnect radio antenna feeder cable (roof) and check continuity as shown in figure. If check result is not as specified, replace radio antenna feeder cable (roof).

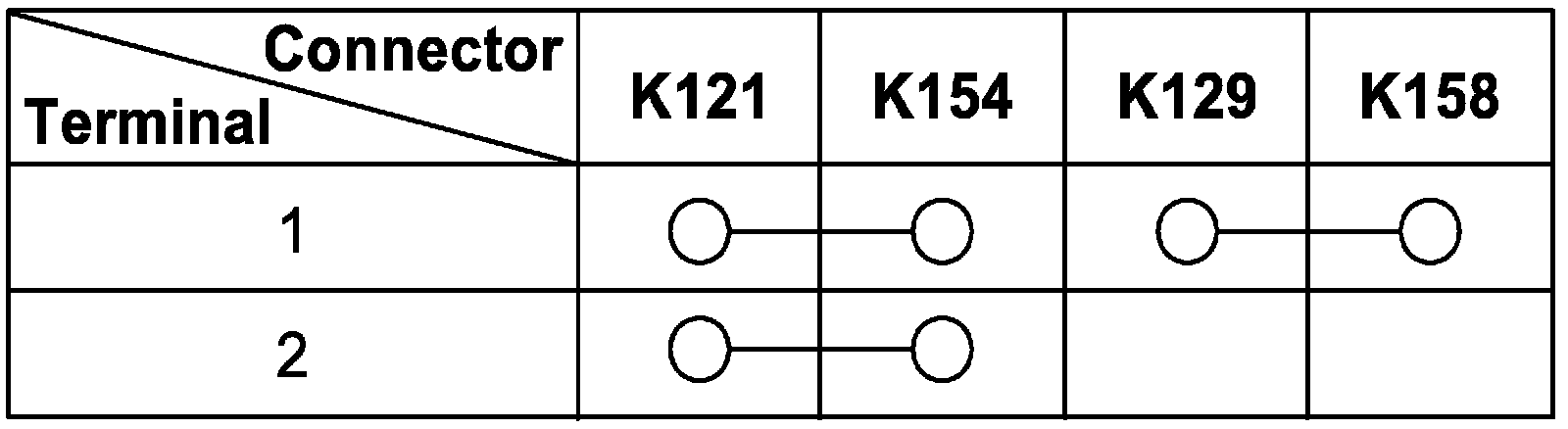

Radio antenna feeder cable (roof) continuity

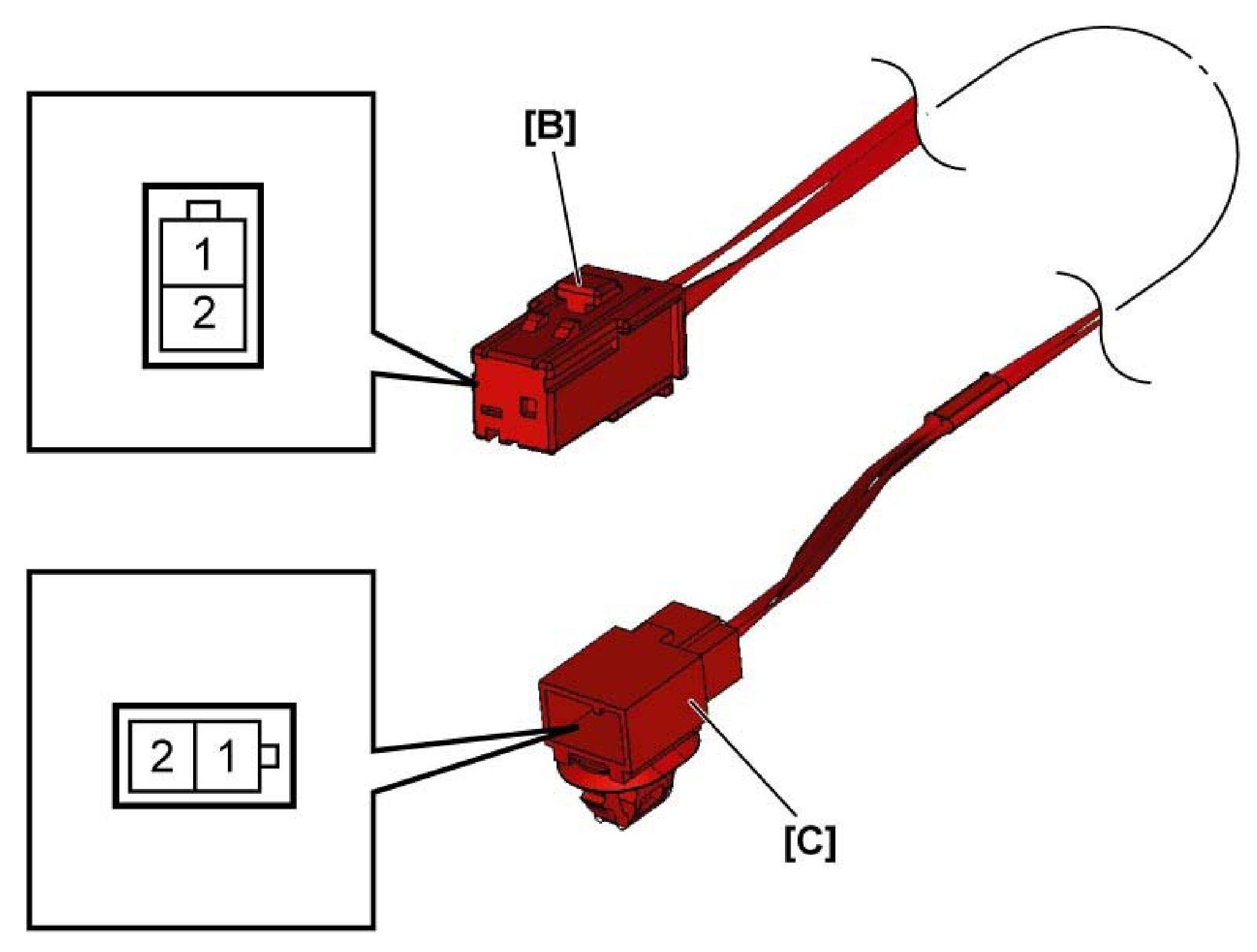

Without XM antenna

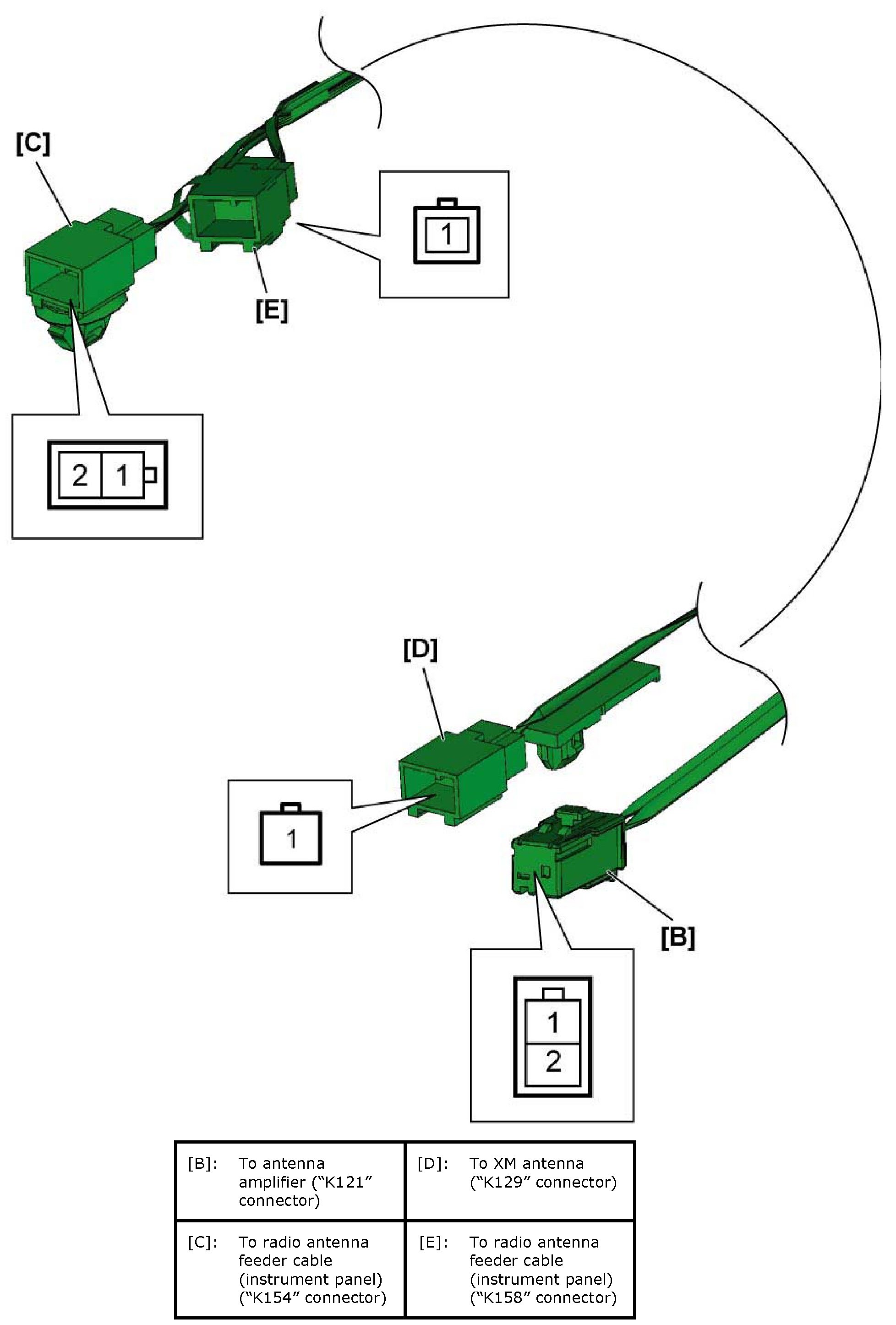

With XM antenna
