Amplifier: Service and Repair

Audio Amplifier Removal And Installation (If Equipped)

Removal

1. Disconnect negative (-) cable at battery.
2. Remove trunk side trim.

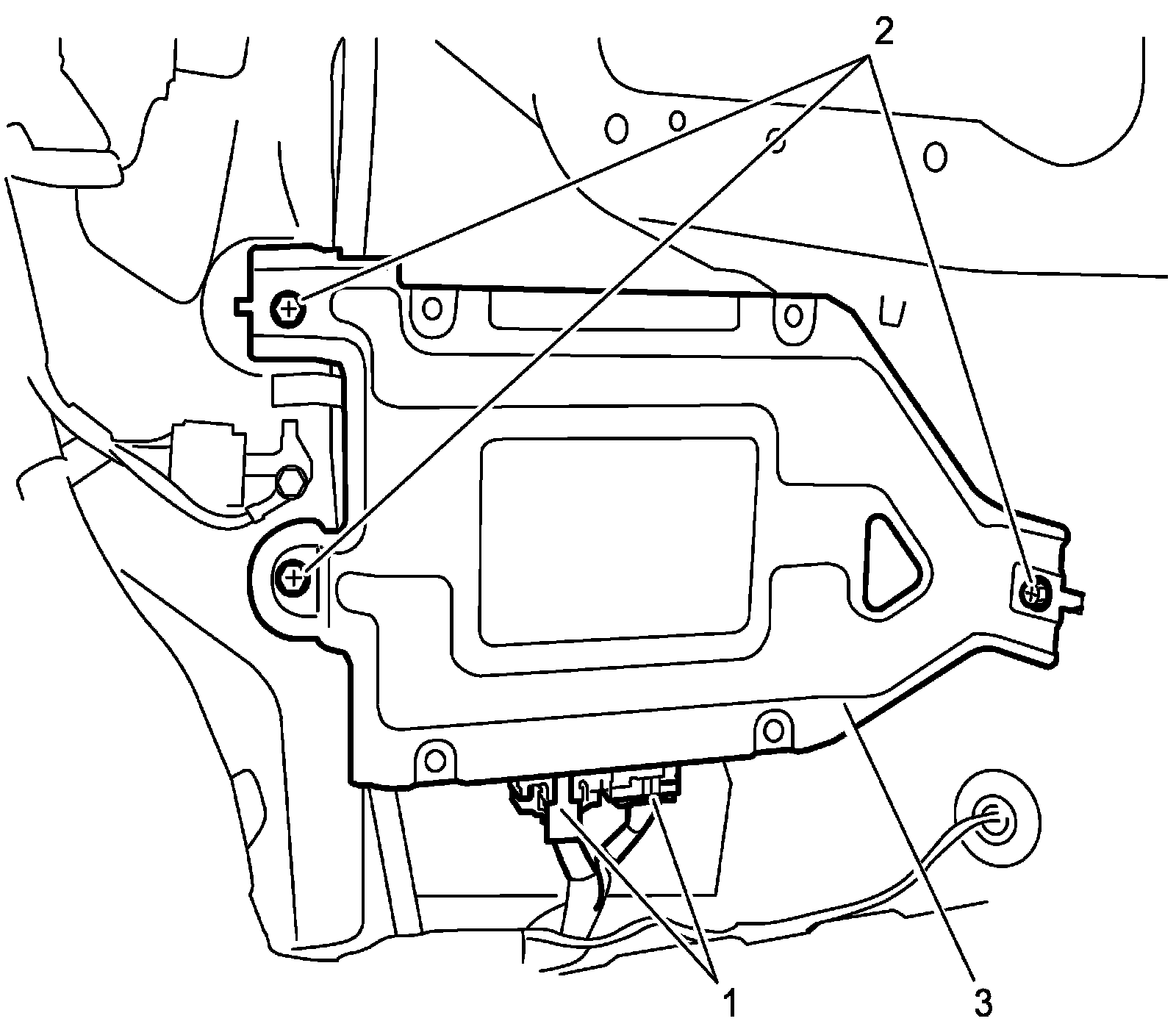

3. Disconnect audio amplifier connectors (1).
4. Remove 3 audio amplifier bolts (2).
5. Remove audio amplifier (3) from trunk.







Installation

Reverse removal procedure.
