Front Speaker and Rear Speaker Removal and Installation

Front Speaker And Rear Speaker Removal And Installation

Removal

1. Remove door trim.
- Front:
- Rear:

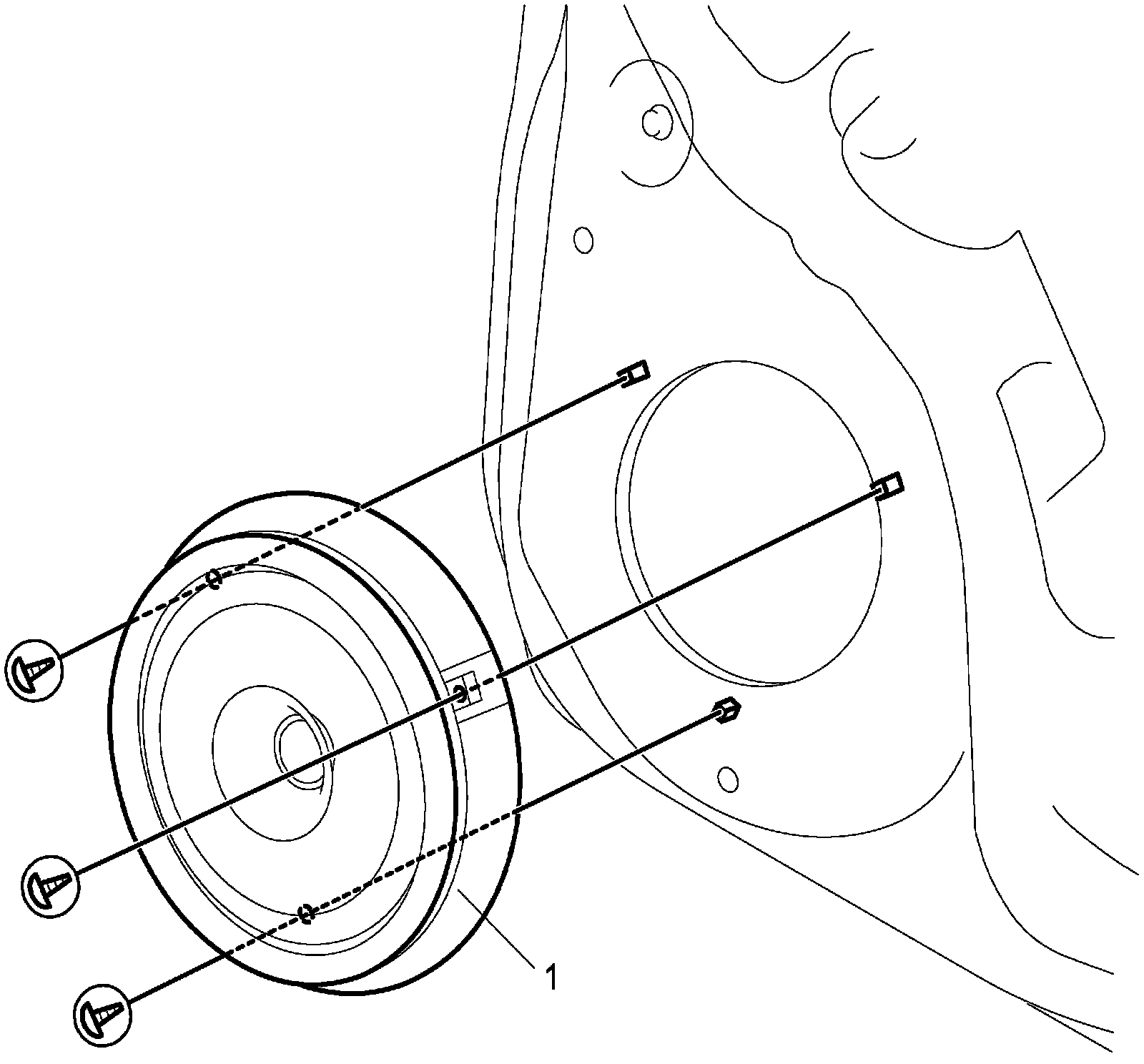

2. Remove 3 screws and remove front or rear speaker (1).
3. Disconnect speaker connector.







Installation

Reverse removal procedure.
