Sub Woofer Removal and Installation (If Equipped)

Sub Woofer Removal And Installation (If Equipped)

Removal

1. Open trunk lid.

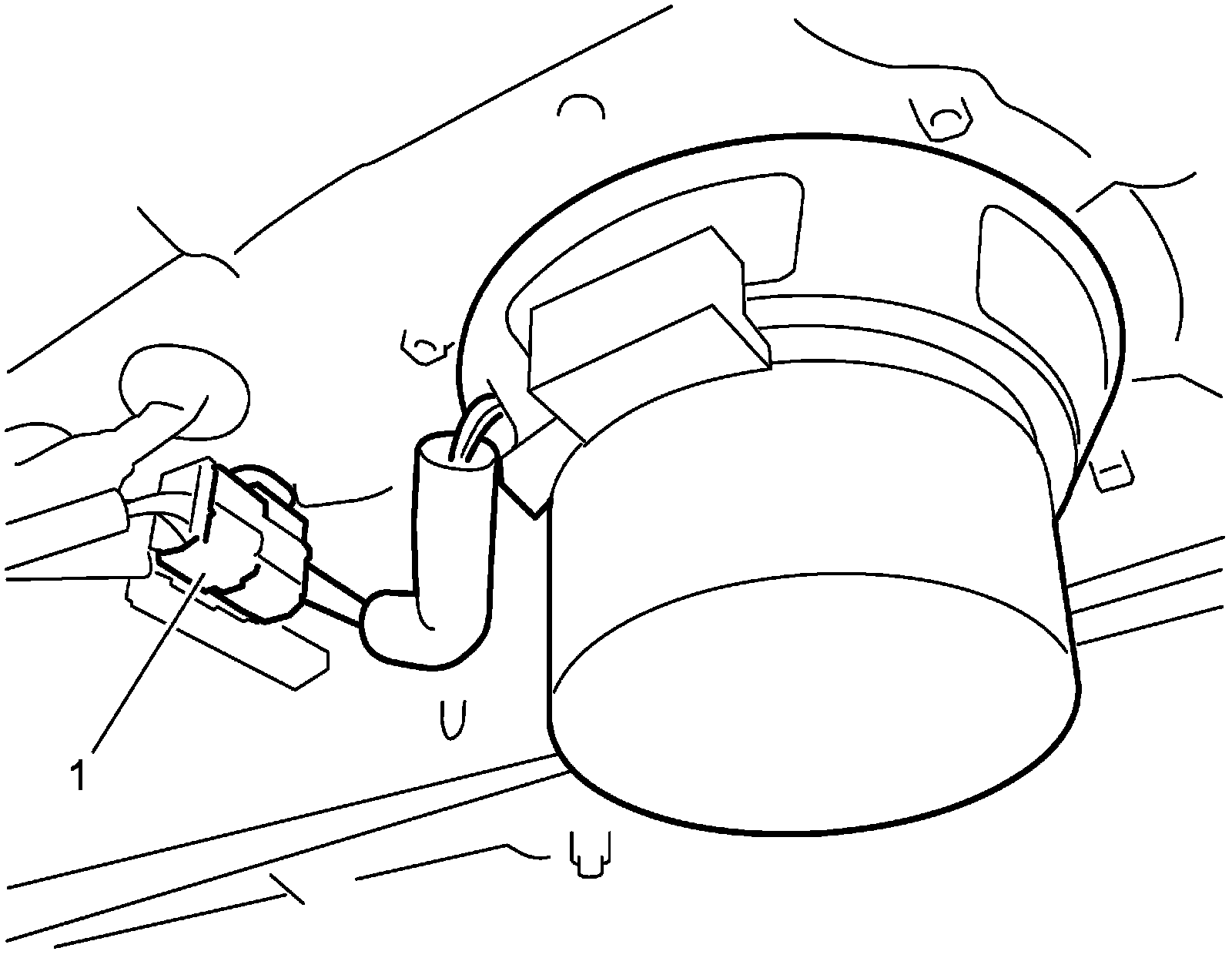

2. Disconnect sub woofer connector (1).







3. Remove partition trim.

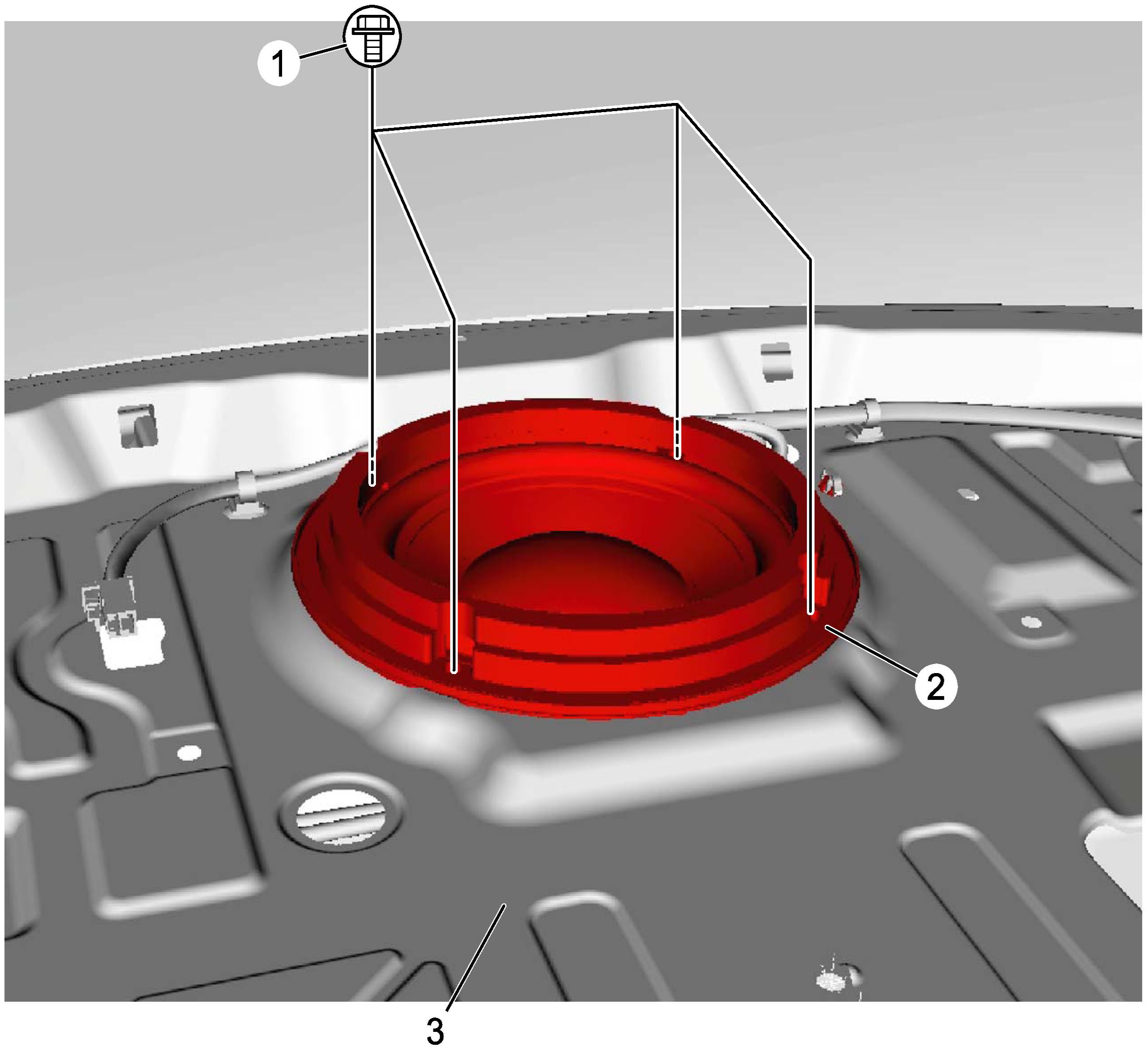

4. Remove 4 bolts (1).
5. Remove sub woofer (2) from partition panel (3).







Installation

Reverse removal procedure.
