Tweeter Removal and Installation

Tweeter Removal And Installation

Removal

1. Remove front door trim.

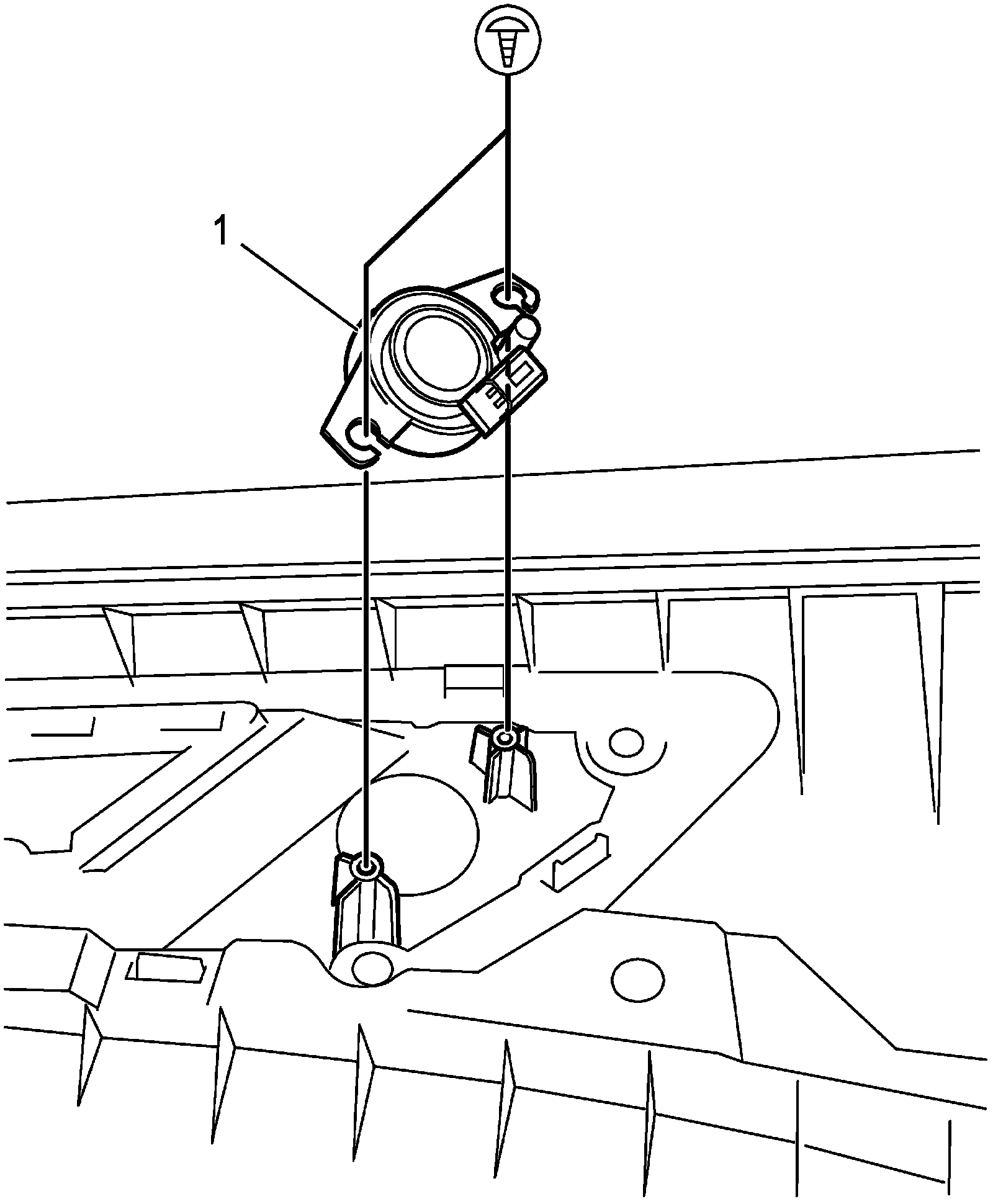

2. Remove 2 screws and remove tweeter (1).
3. Disconnect tweeter connector.







Installation

Reverse removal procedure.
