Rear Duct Removal and Installation
Rear Duct Removal And InstallationRemoval
1. Remove center console box.
2. Remove front seats.
3. Take over floor carpet to the position that rear ducts are totally exposed.

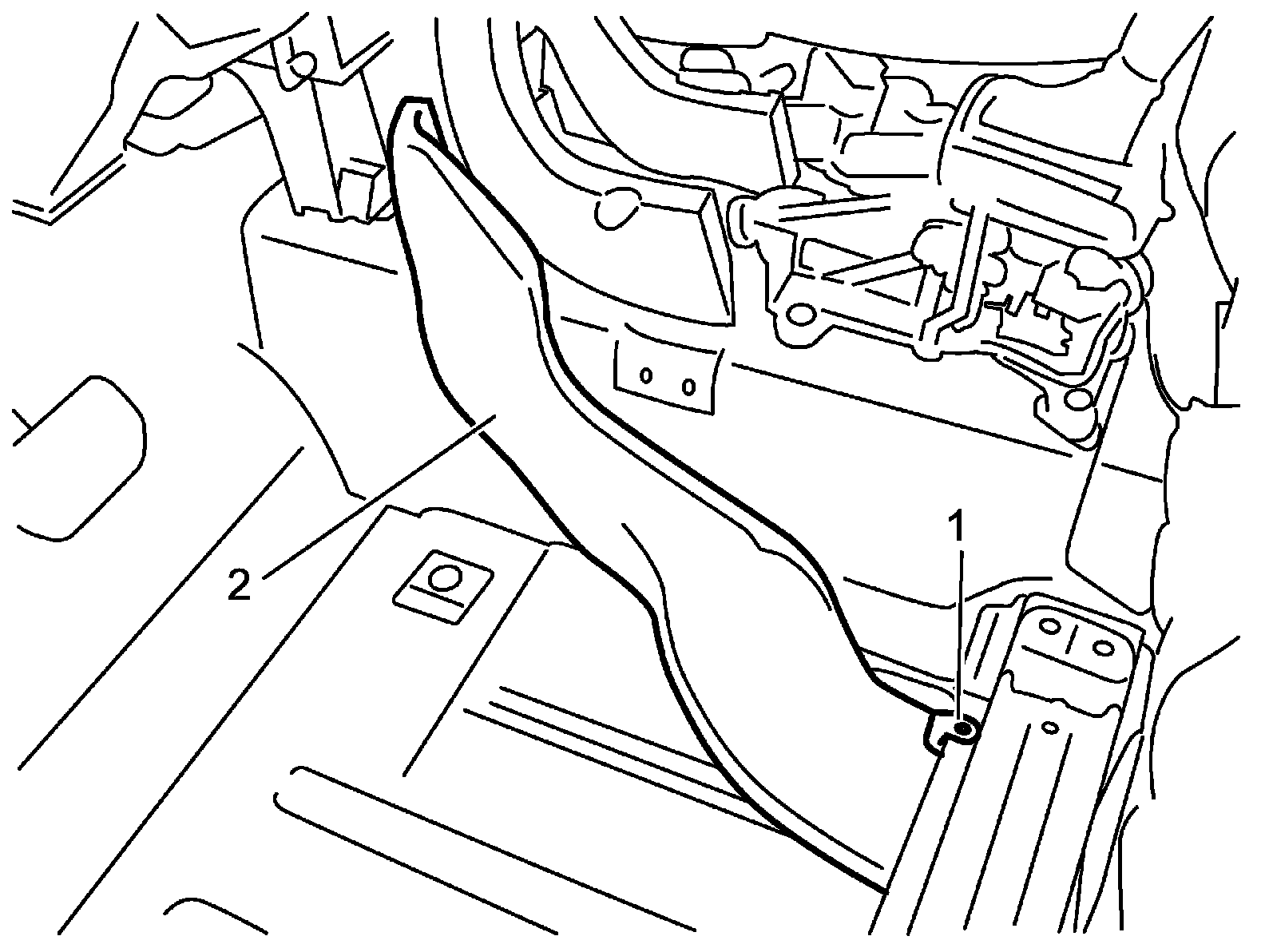

4. Remove rear ducts (2) by removing clips (1).
Installation
Reverse removal procedure.
