Rear Ventilation Louver Removal and Installation

Rear Ventilation Louver Removal And Installation

Removal
1. Remove center console box.

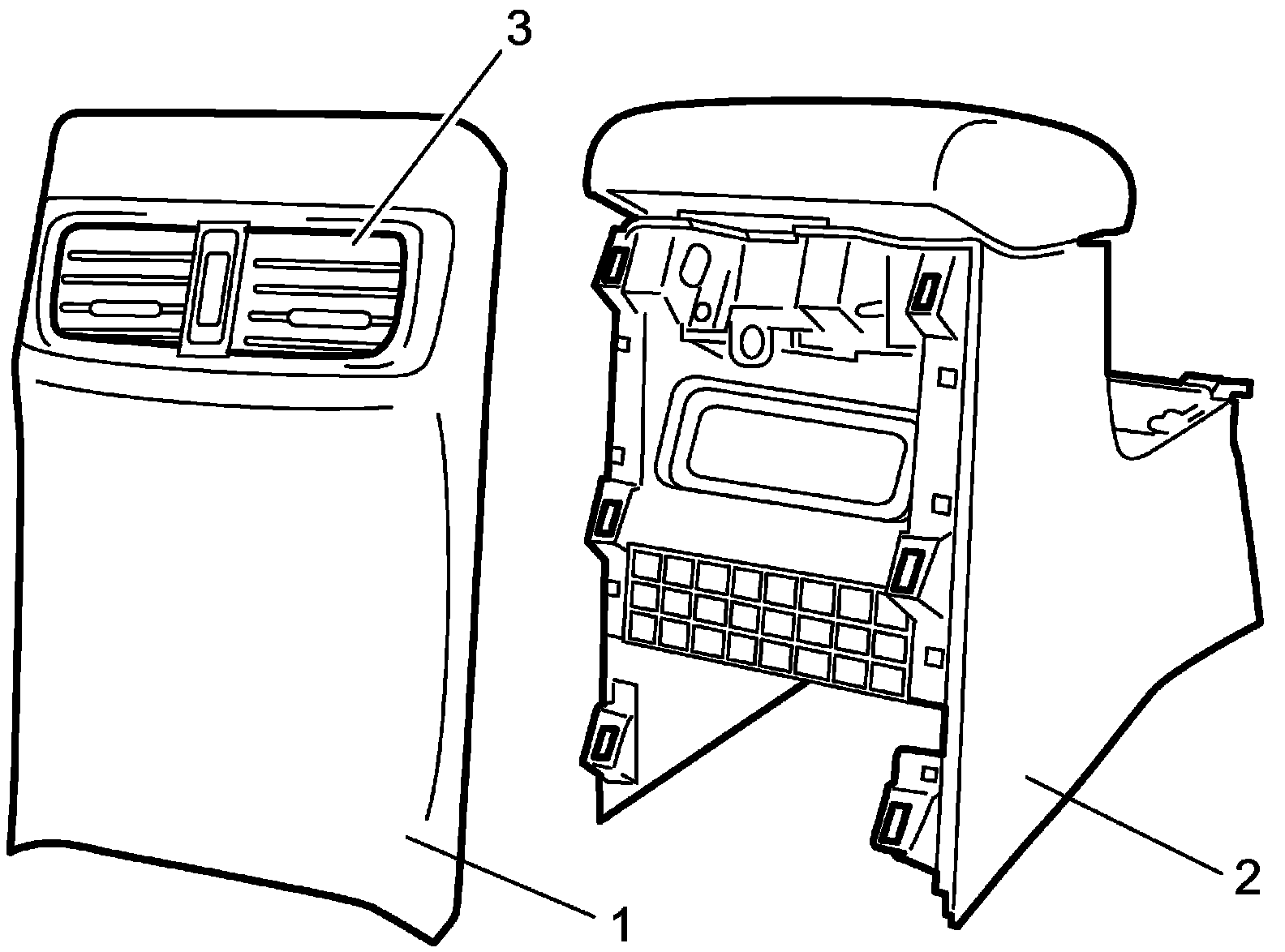

2. Release tabs, and then remove rear ventilation louver (3) with rear end panel (1) from center console box assembly (2).






Installation
Reverse removal procedure.
