Underbody Cover: Service and Repair

Main Floor Undercover Removal And Installation

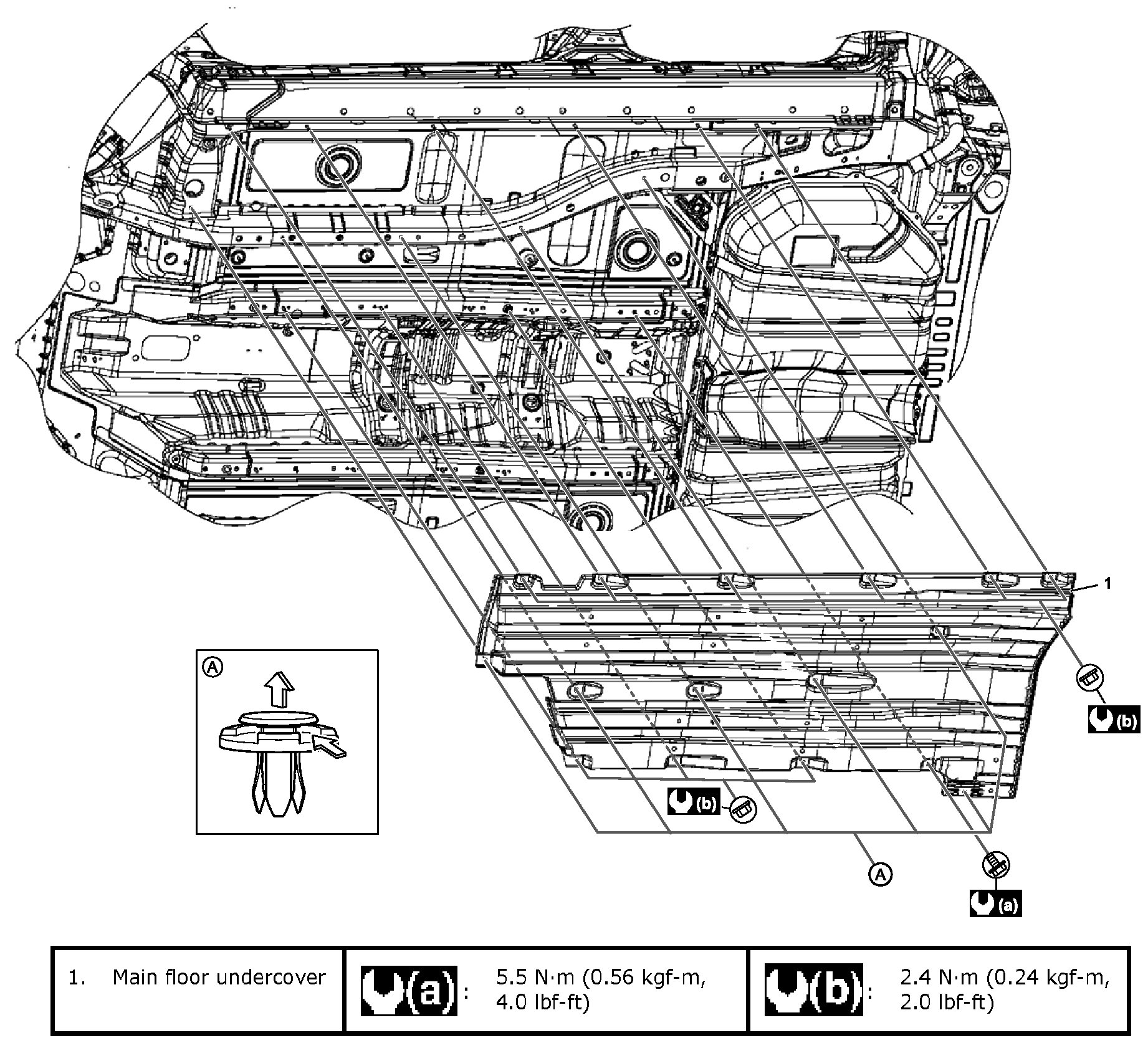

Remove and install parts referring to figure.
