Sunroof / Moonroof Motor: Service and Repair

Sun Roof Motor Removal And Installation

Removal

1. Remove roof lining.
2. Remove console box mounting bracket.

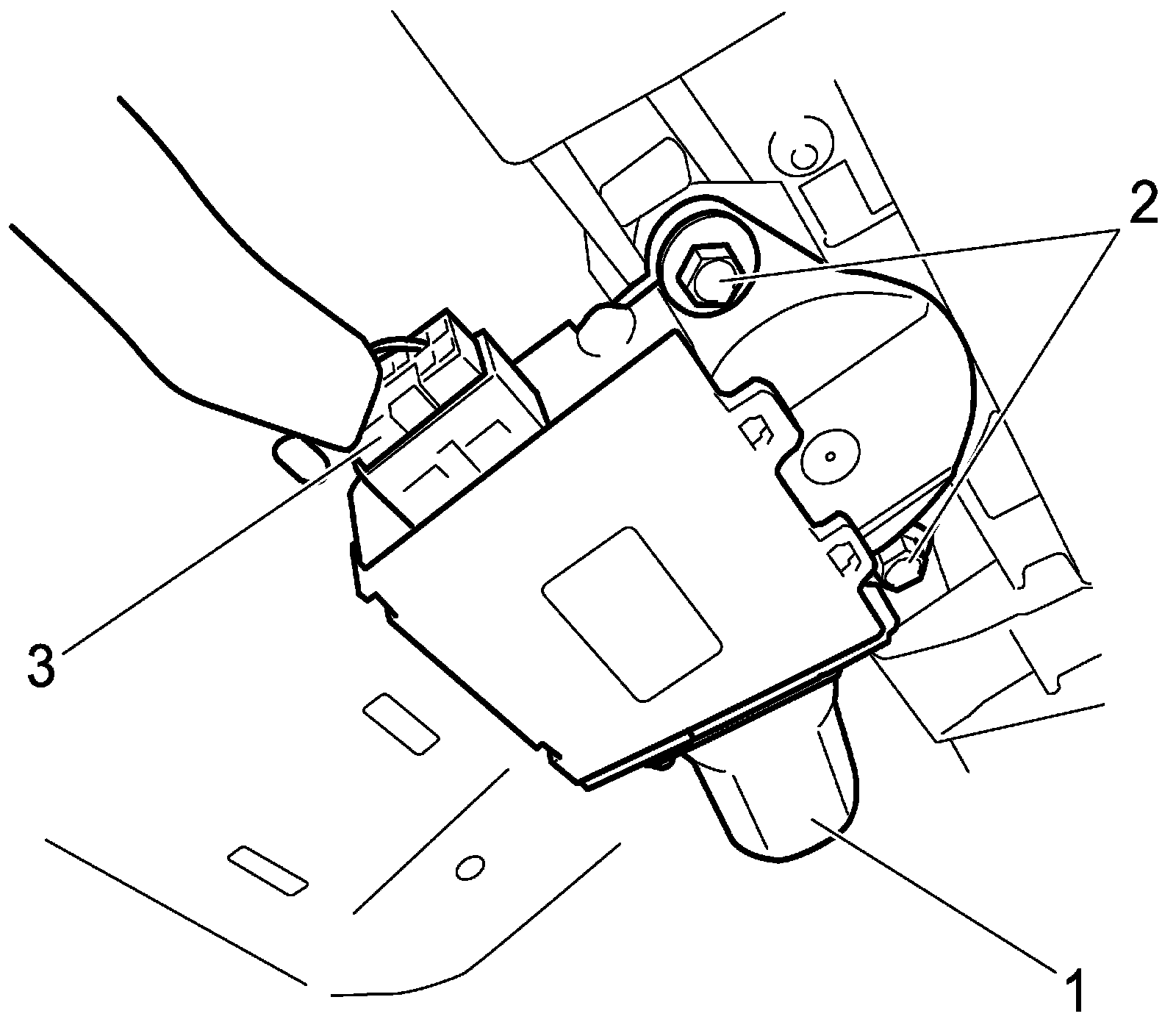

3. Disconnect sun roof motor connector (3) and remove sun roof motor (1) by removing sun roof motor bolts (2).







Installation

Reverse removal procedure noting the following points.
- Tighten sun roof motor bolts to specified torque.

Tightening torque
Sun roof motor bolt: 5.4 N.m (0.55 kg-m, 4.0 lbf-ft)

- Connect sun roof motor connector to sun roof motor securely.
- Initialize sun roof motor.
