Warning / Indicator Light Description

Warning / Indicator Light Description

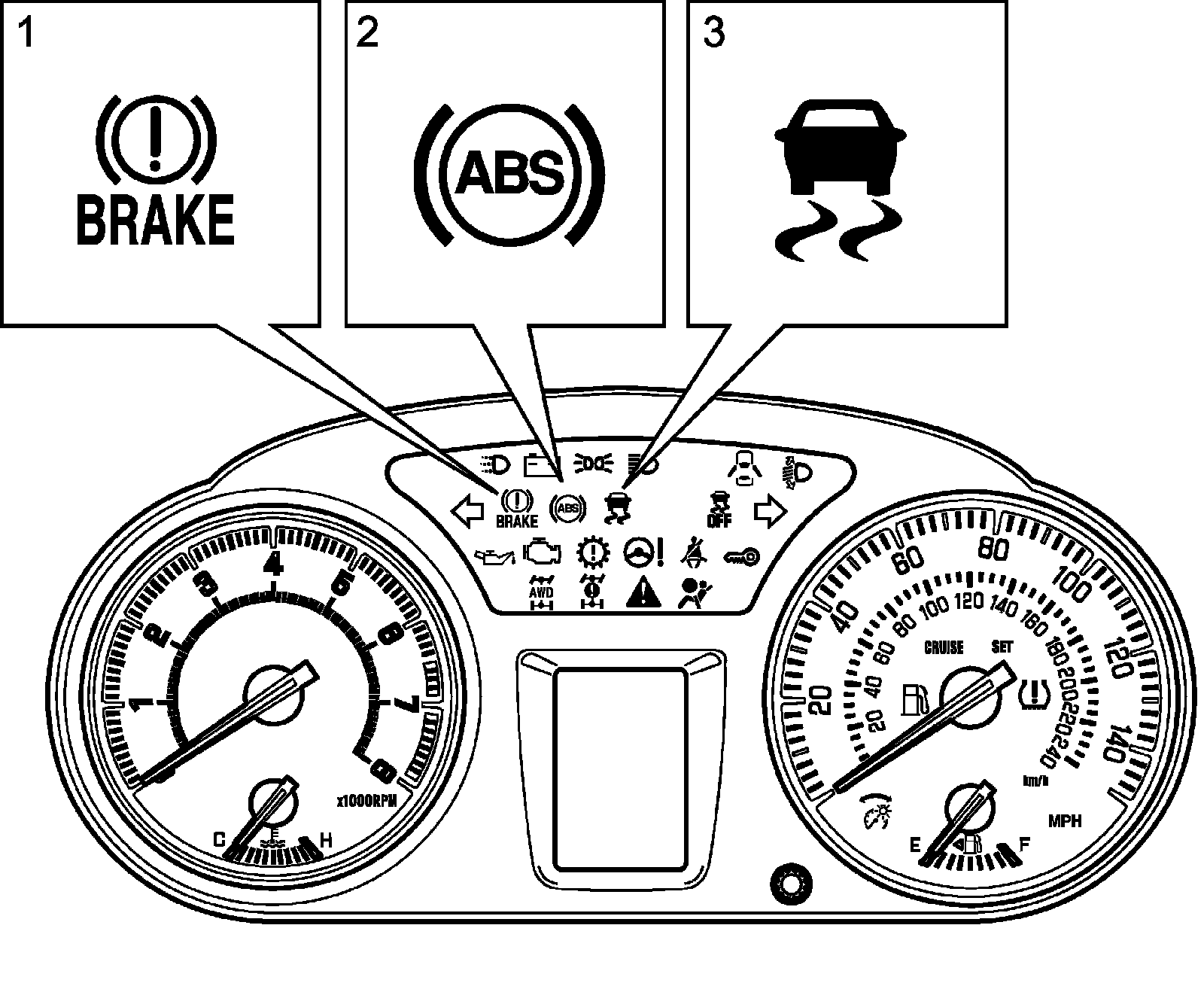

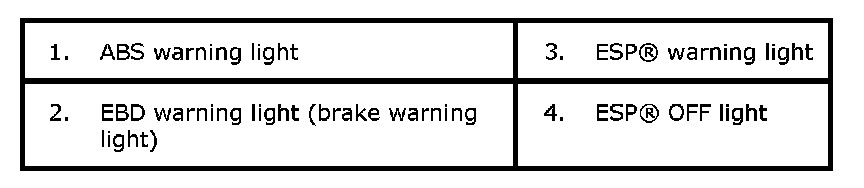

There are four warning and indicator lights controlled by ESP(R) hydraulic unit / control module assembly in combination meter. They give warnings and indications to driver by changing their modes: light ON / flashing / light OFF.

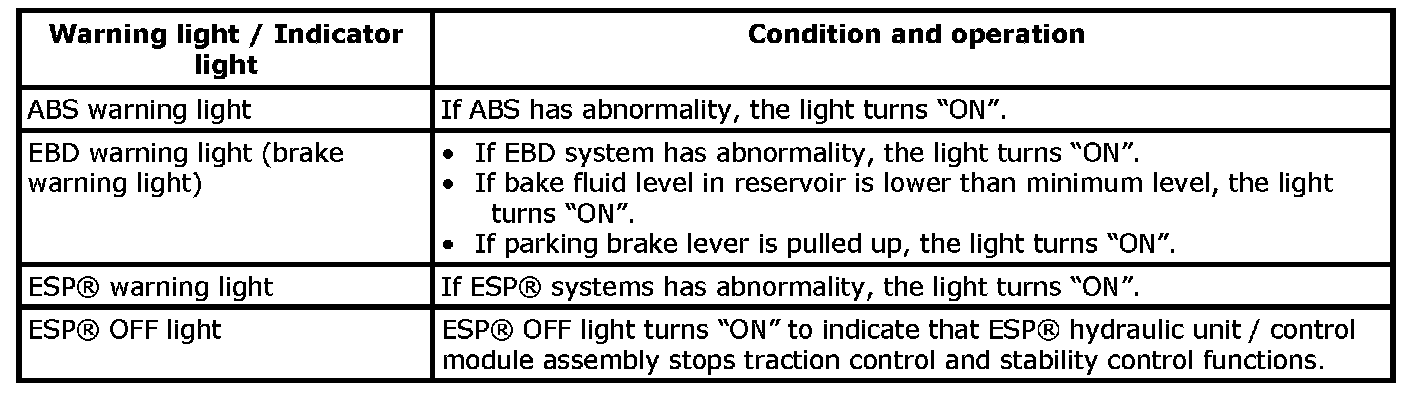

Condition and Operation of Warning Lights and Indicator Lights
