Brake Master Cylinder: Description and Operation

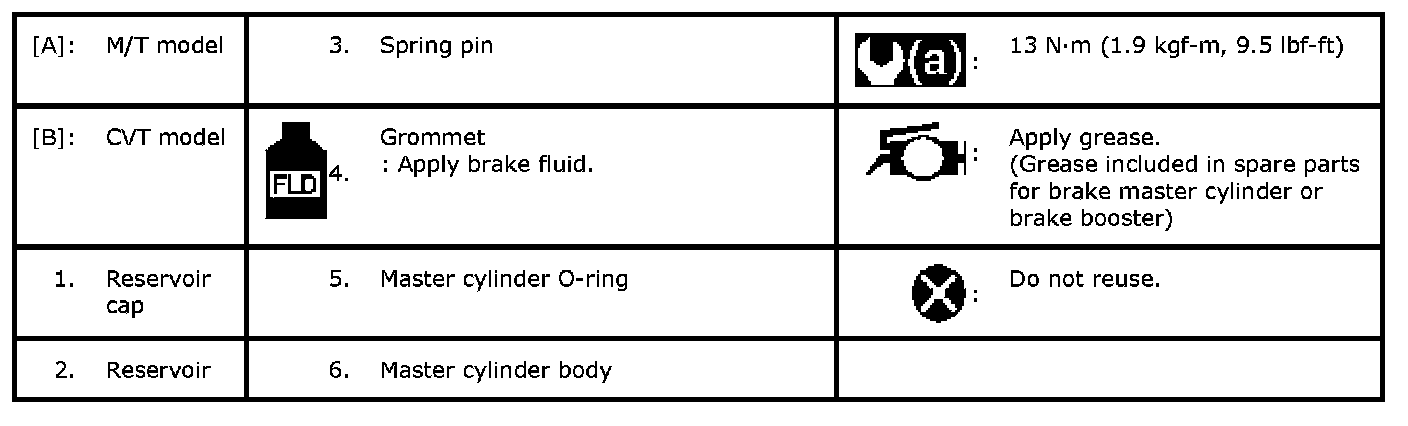

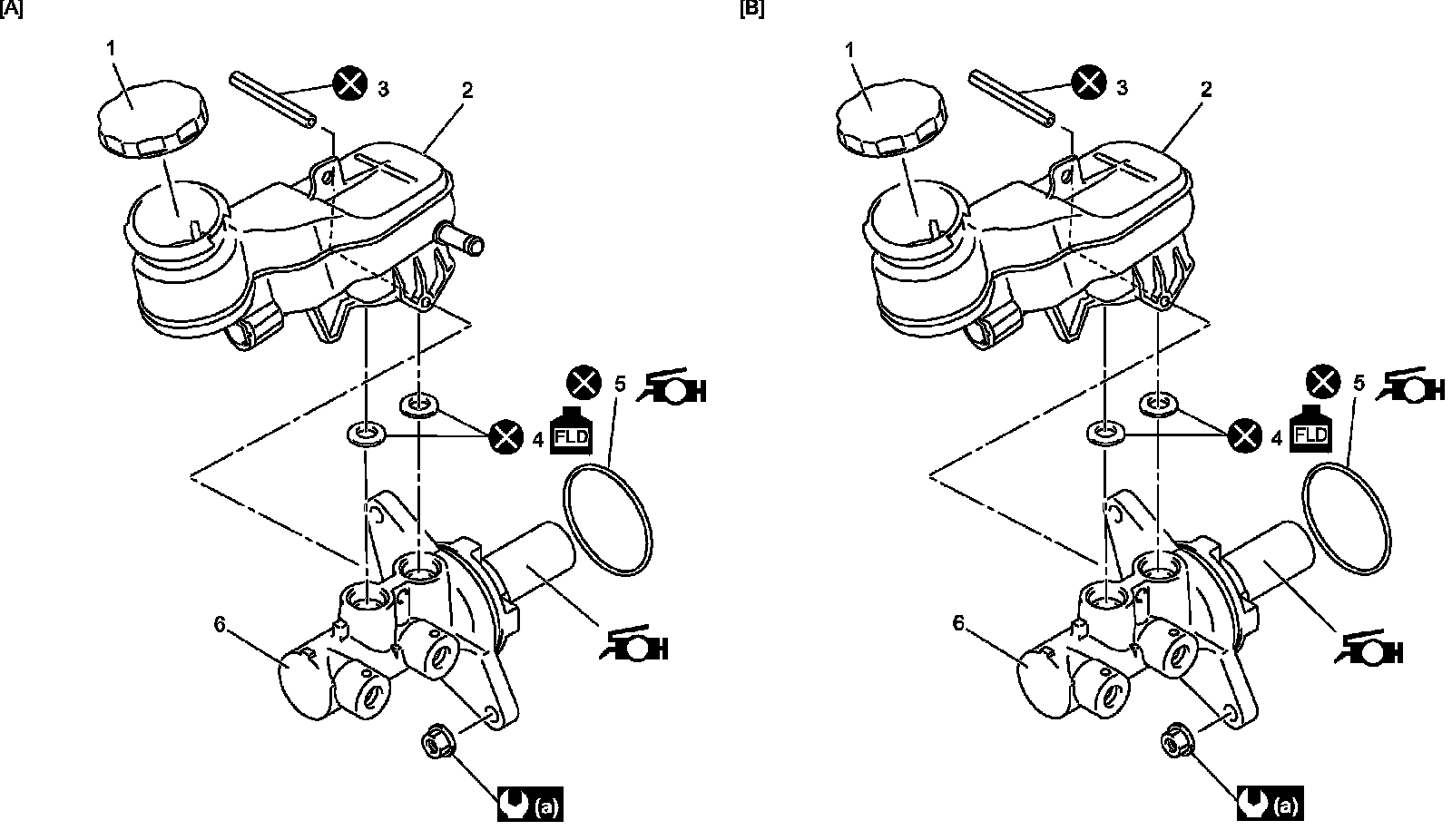

Brake Master Cylinder Components

CAUTION:
Never disassemble brake master cylinder. Disassembly will spoil its original performance.
If any fault is found, replace it with a new assembly.
