Harness Locations
>>
Around Transmission
Around Transmission
Around Transmission

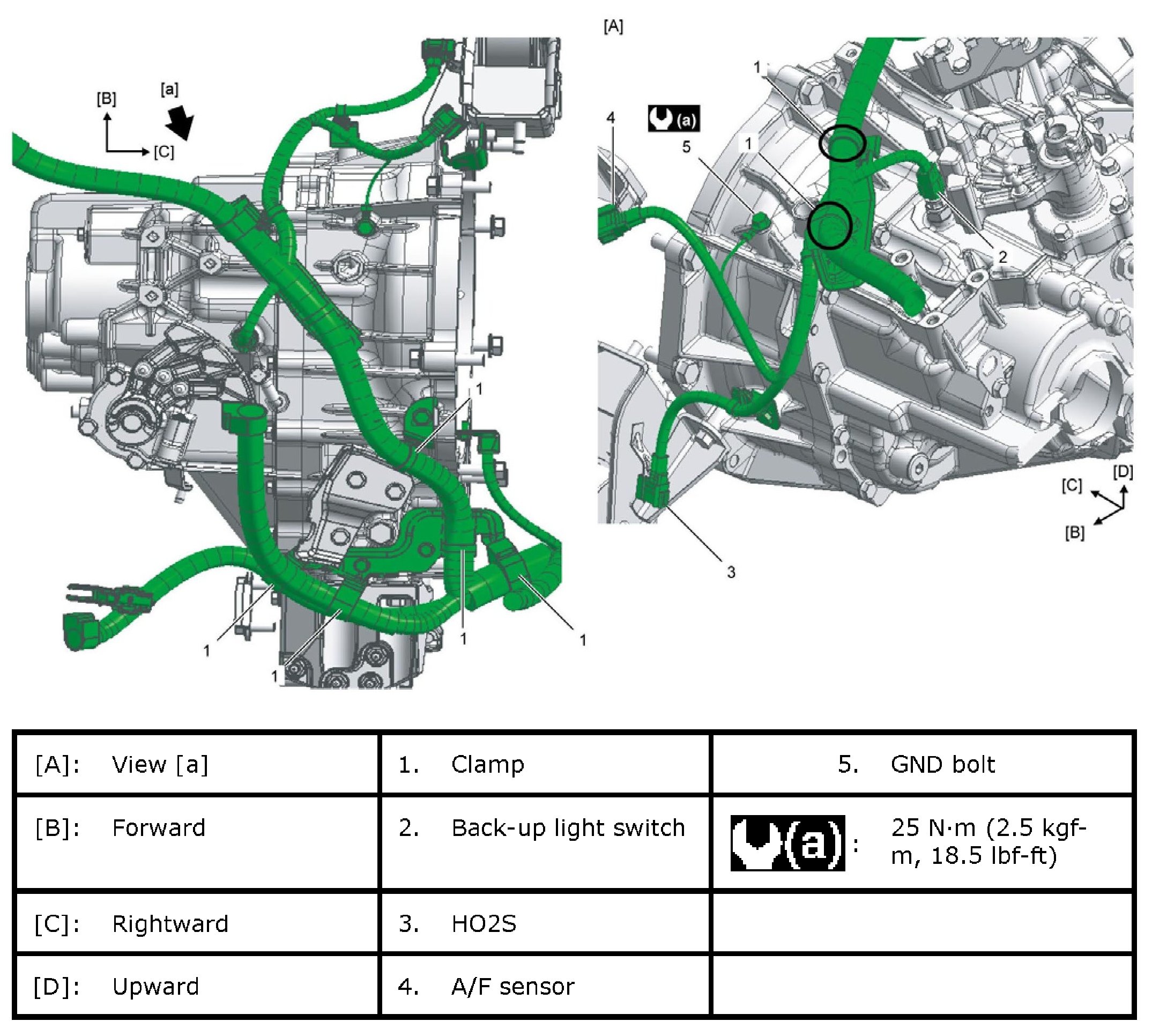

M/T Model
Around Transmission - M/T Model:

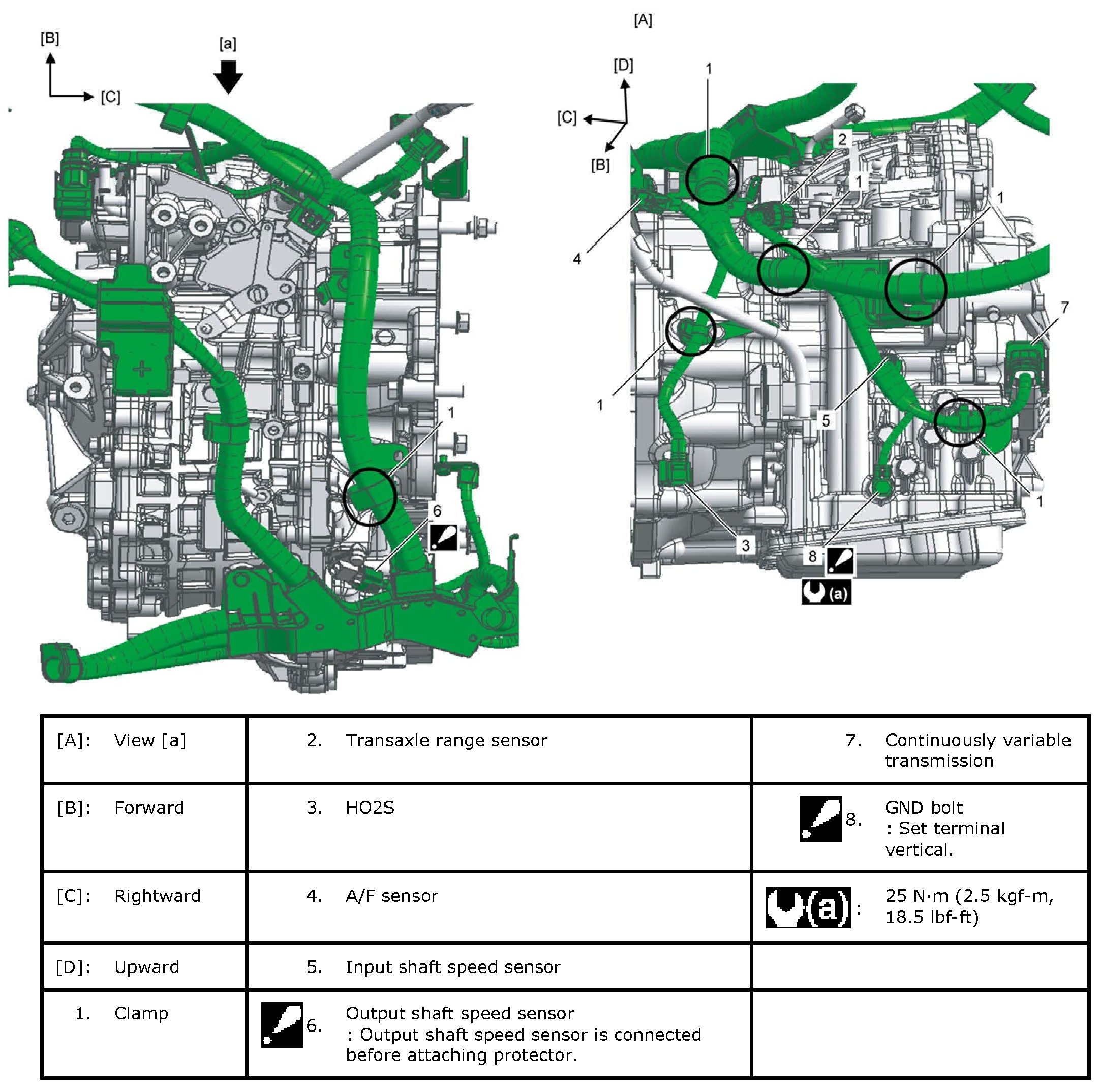

CVT Model
Around Transmission - CVT Model:
