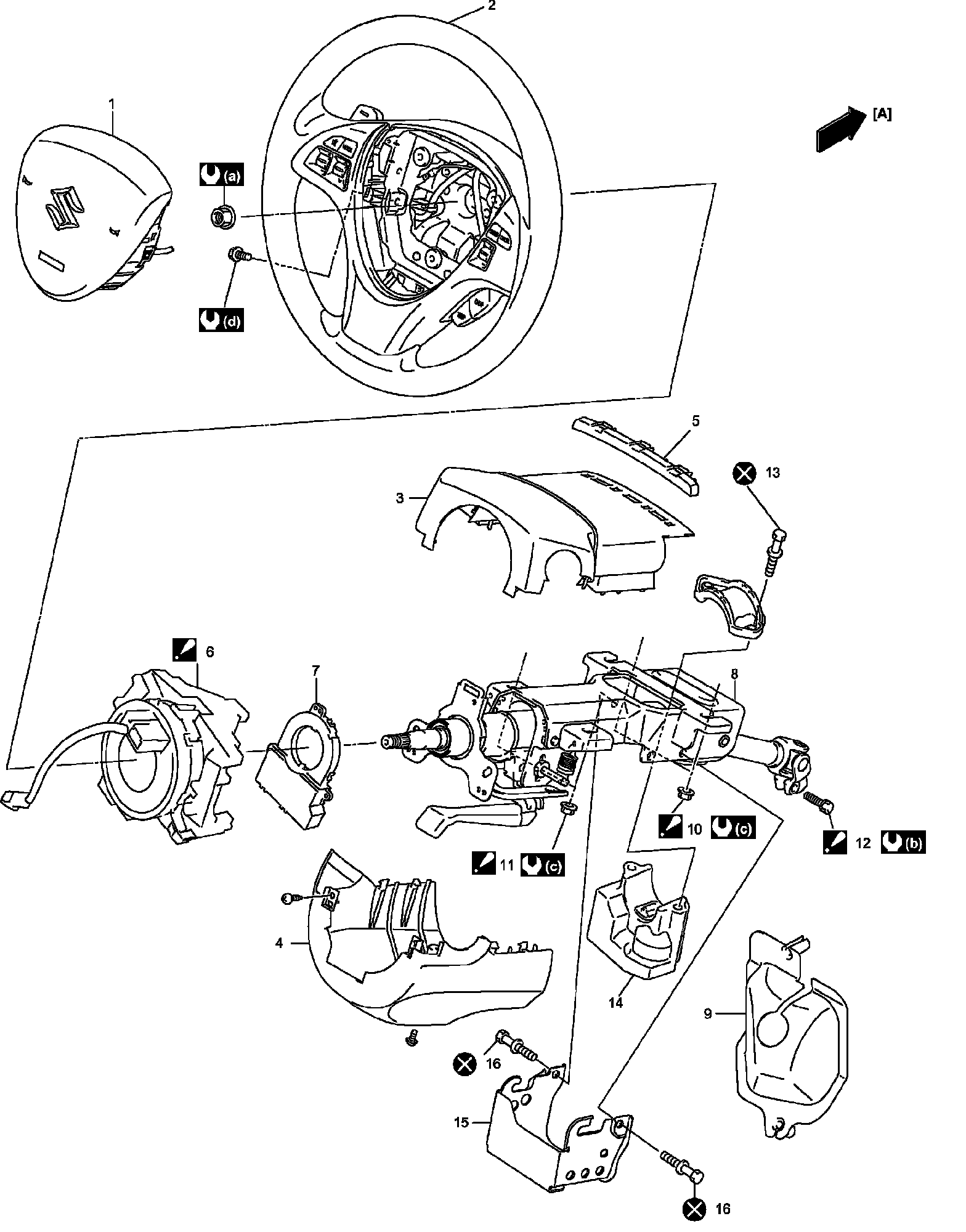

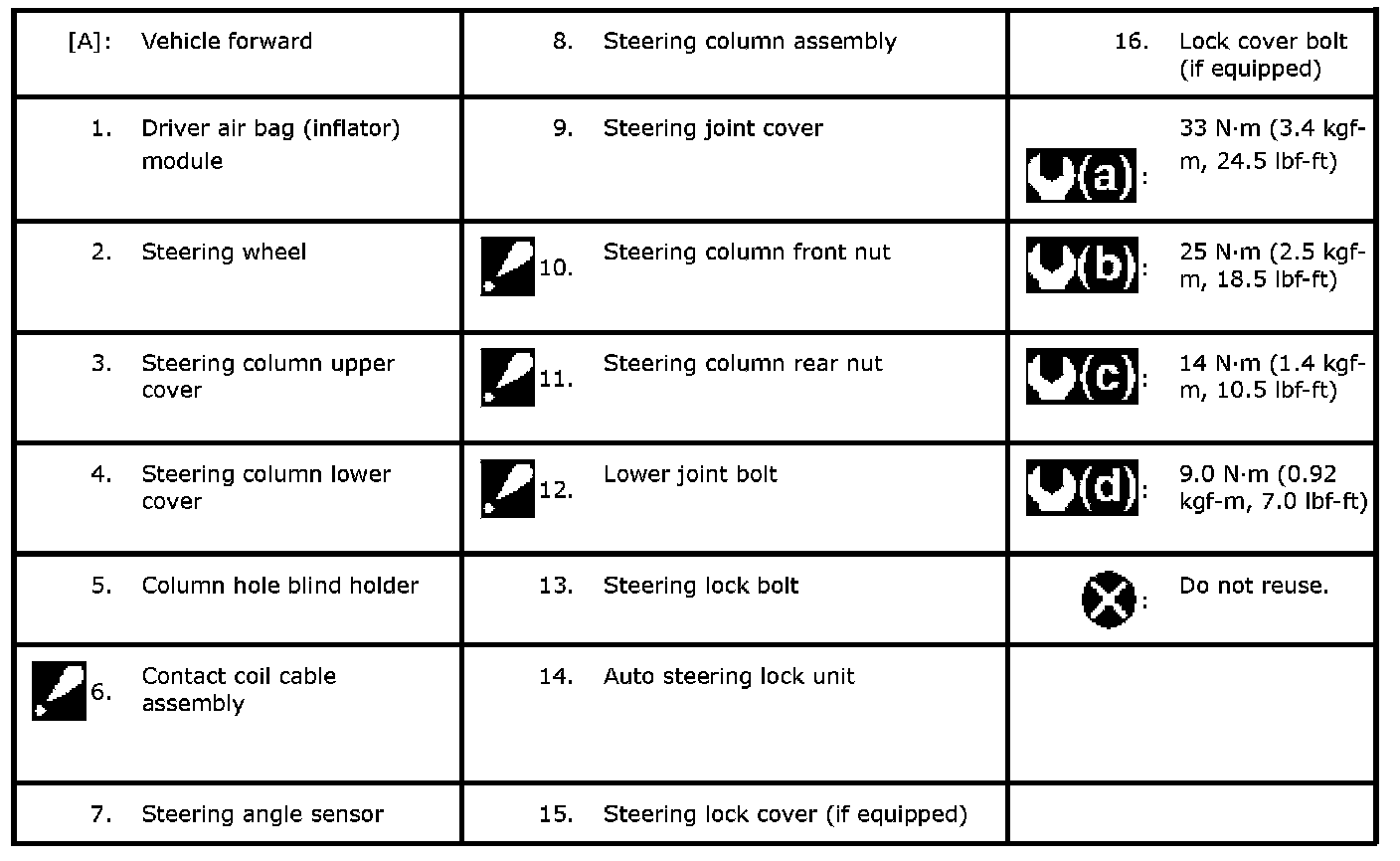

Steering Wheel and Column Components

Steering Wheel and Column Components

WARNING:
Be sure to remove and install driver air bag (inflator) module according to procedure described in Driver Air Bag (Inflator) Module Removal and Installation.

CAUTION:
Perform centering contact coil cable assembly, when installing steering wheel.
