Clutch Master Cylinder: Service and Repair

Clutch Master Cylinder Removal and Installation

Removal
1) Clean around brake master cylinder reservoir cap and extract fluid with syringe or the like from brake master cylinder reservoir.

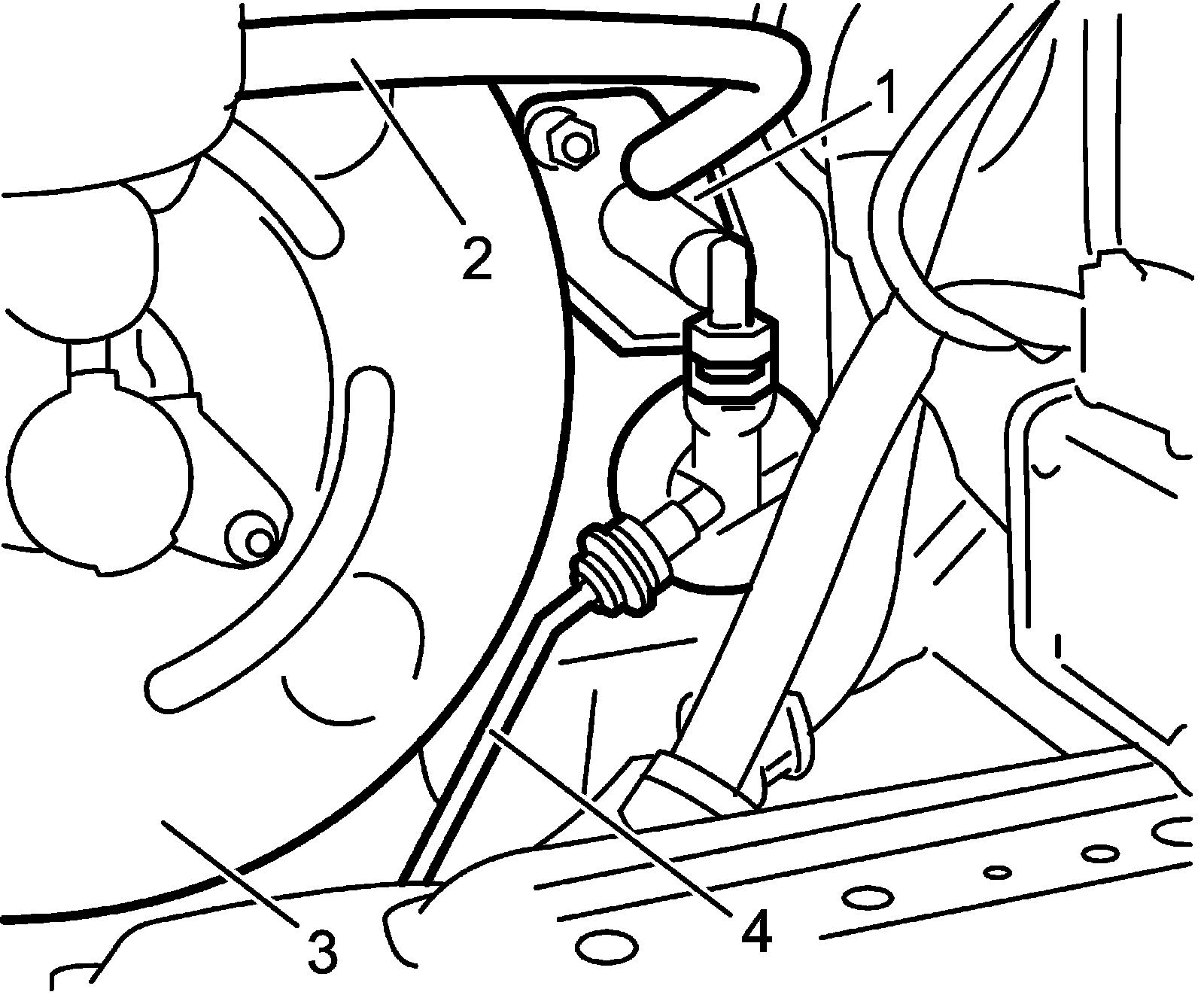

2) Disconnect clutch fluid pipe (4) from clutch master cylinder (1).
3) Disconnect clutch reservoir hose (2).
4) Remove push rod from clutch pedal, and then remove clutch master cylinder.








Installation
Reverse removal procedure noting the following points.

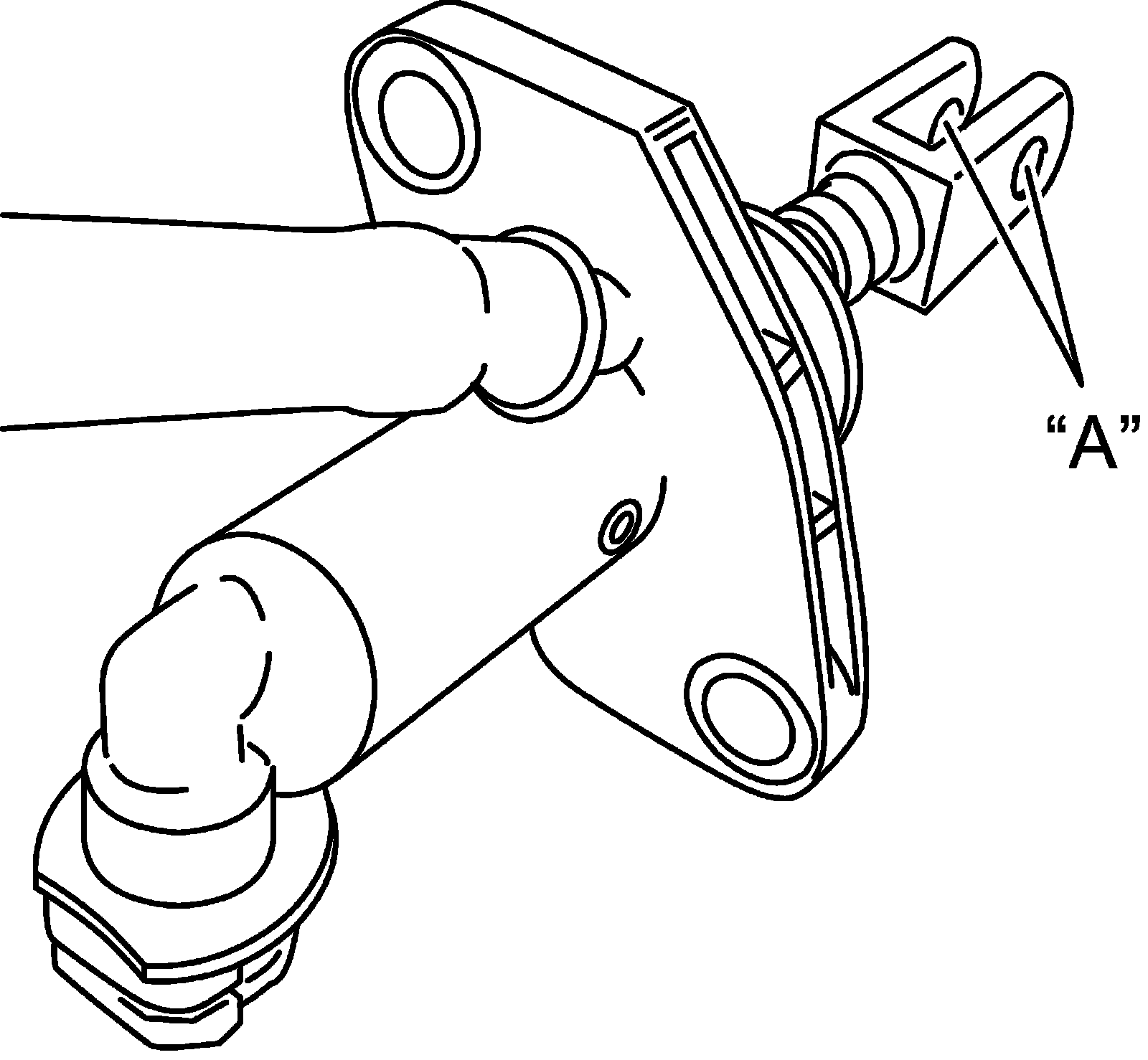

^ Apply grease to push rod tip.

"A": Grease 99000-25100 (SUZUKI Silicone Grease)





^ Tighten clutch master cylinder nuts to specified torque.

Tightening torque
Clutch master cylinder nut: 13 Nm (1.3 kg-m, 9.5 lbf-ft)
