Clutch Fluid Pipe Removal and Installation

Clutch Fluid Pipe Removal and Installation
Reference: Clutch Fluid Pipe and Hose Components

CAUTION:
Do not allow fluid to get on painted surface. It may cause painted surface damage.

Removal
1) Remove air cleaner assembly.
2) Remove battery, battery tray and battery bracket.
3) Remove dust and dirt from each joint of pipe to be disconnected and clean around brake master cylinder reservoir cap.
4) Extract fluid with syringe or the like from brake master cylinder reservoir.

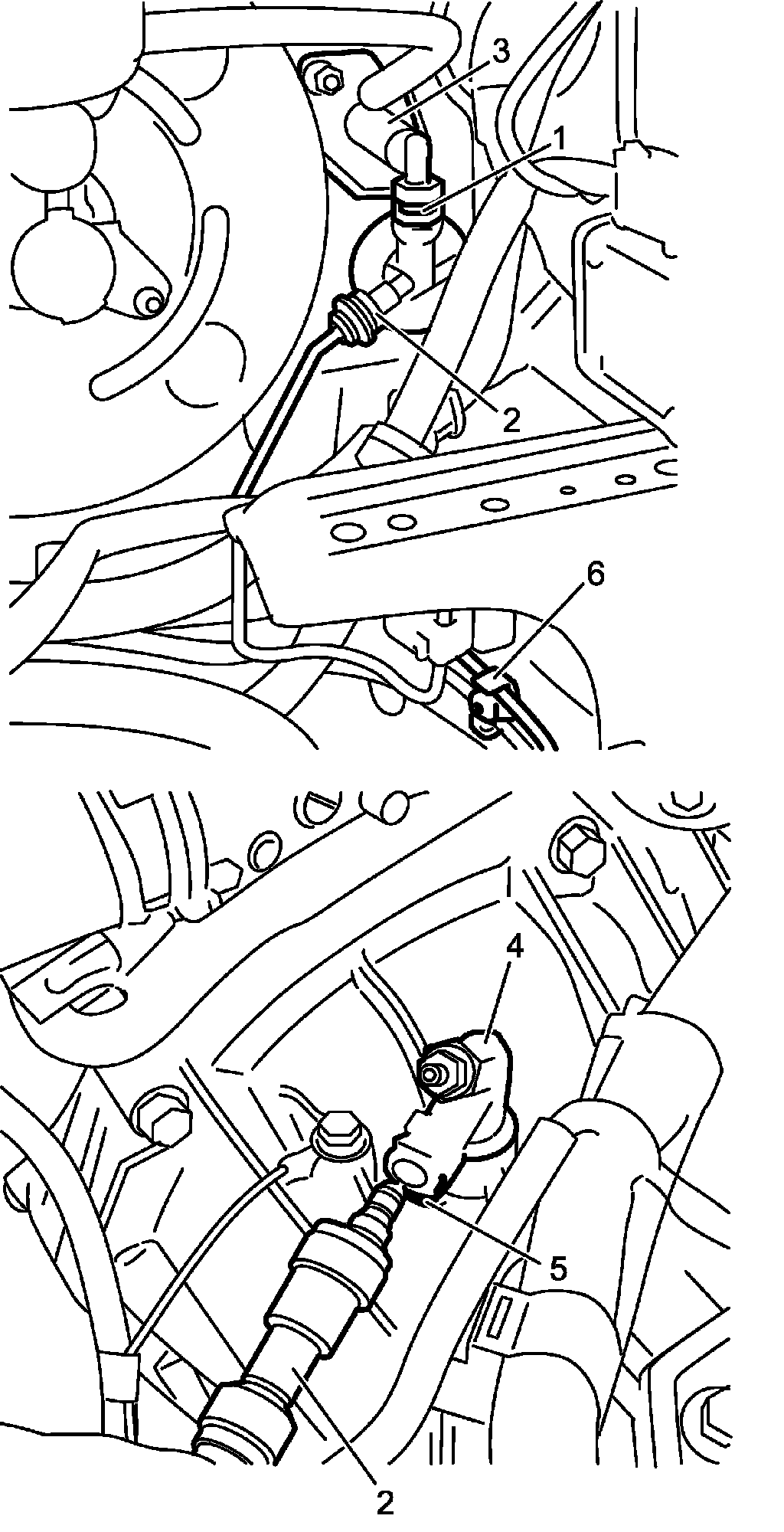

5) Pull clamp (1) of clutch master cylinder (3) and pull clamp (5) of fluid pipe joint (4), and then disconnect clutch fluid pipe (2).
6) Disconnect clamp (6) of clutch fluid pipe, and then remove clutch fluid pipe.





Installation
Reverse removal procedure noting the following points.

CAUTION:
Do not allow pipe to contact hard against vehicle body or other parts.

^ Install each clamp securely.
^ After installation, bleed air from clutch system and check clutch pedal free travel.
- Bleed air:
- Clutch pedal free travel:
^ Check fluid leakage.
^ Add fluid to MAX level of reservoir.
