Propeller Shaft Inspection

Propeller Shaft Inspection
Reference: Propeller Shaft Assembly Removal and Installation

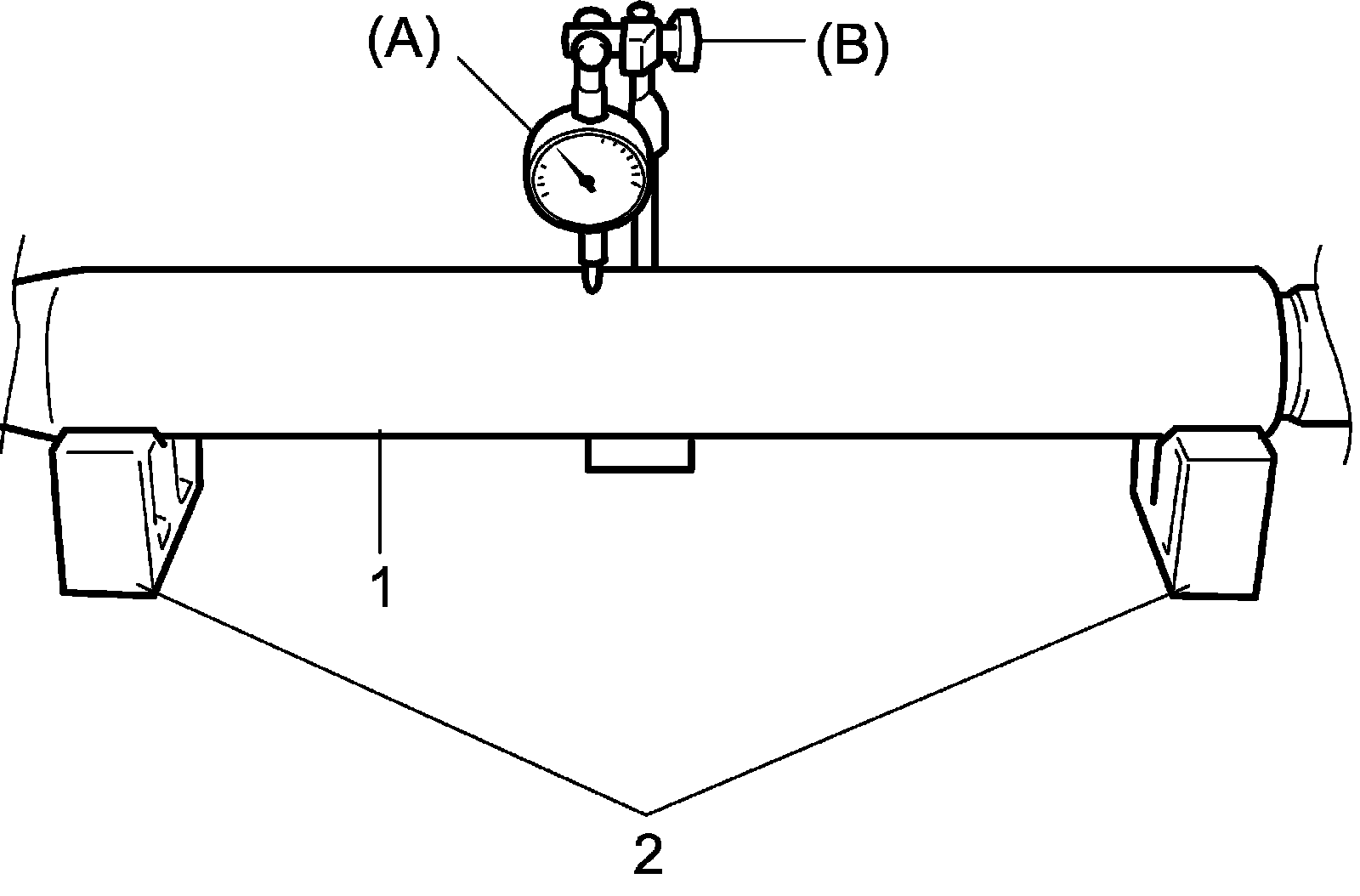

Propeller Shaft Runout
Use dial gauge to check runout of propeller shaft (1). If any abnormalities are found, replace propeller shaft assembly with a new one.

Propeller shaft runout
Limit: 0.7 mm (0.028 in.)

Special Tool
(A): 09900-20607
(B): 09900-20701
