Center Speaker Removal and Installation (If Equipped)




Center Speaker Removal and Installation (If Equipped)

Removal

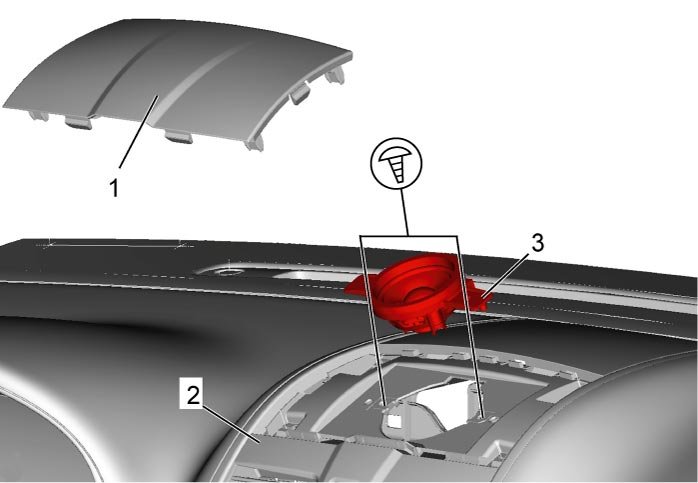

1) Remove center speaker cover (1) from center ventilation louver garnish (2) by using flat end rod with a cloth.
2) Disconnect coupler and screws, and then remove center speaker (3).






Installation

Reverse removal procedure.
