Vacuum Brake Booster: Adjustments

Booster Push Clevis Rod Adjustment

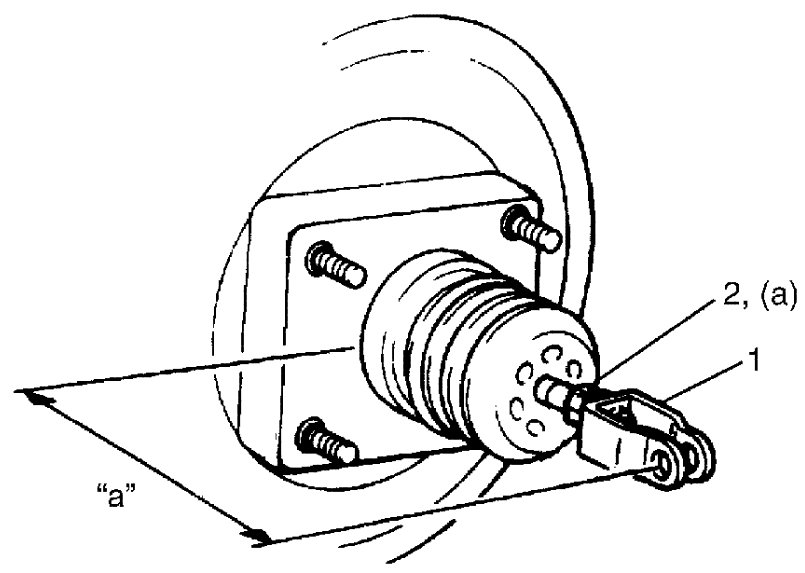

Install push clevis rod (1) so that measurement "a" is obtained and torque nut (2) to specification.

Tightening torque
Clevis pin lock nut (a): 26 Nm (2.6 kgf-m, 19.0 lbf-ft)

Clevis installing position (length "a")
"a": 129.5 - 130.5 mm (5.10 - 5.13 in.)
