Home >> Toyota Truck >> 1991 >> 4 Runner 4WD L4-144.4 2366cc 2.4L SOHC (22R-E) >> Repair and Diagnosis >> A L L Diagnostic Trouble Codes ( DTC ) >> Testing and Inspection >> Manufacturer Code Charts >> Engine Control System >> DTC 41 >> Circuit Test (4WD A/T)

Circuit Test (4WD A/T)

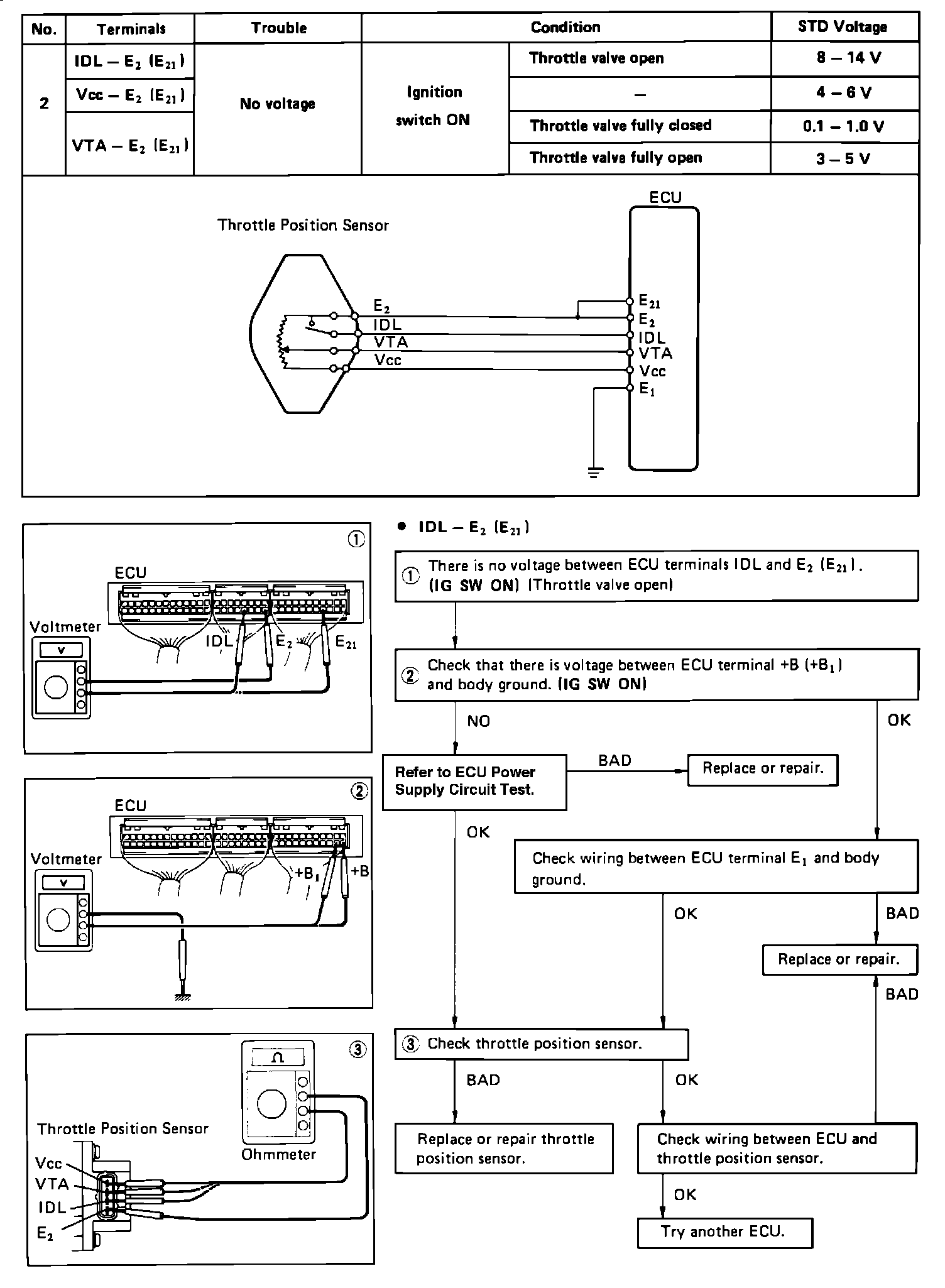

��N Throttle Position Sensor (TPS) Signal Circuit Test:
