4 Runner 4WD L4-144.4 2366cc 2.4L SOHC (22R-E)
>>
Repair and Diagnosis
>>
A L L Diagnostic Trouble Codes ( DTC )
>>
Testing and Inspection
>>
Manufacturer Code Charts
>>
Engine Control System
>>
DTC 41
>>
Circuit Test (Except 4WD A/T)
Circuit Test (Except 4WD A/T)

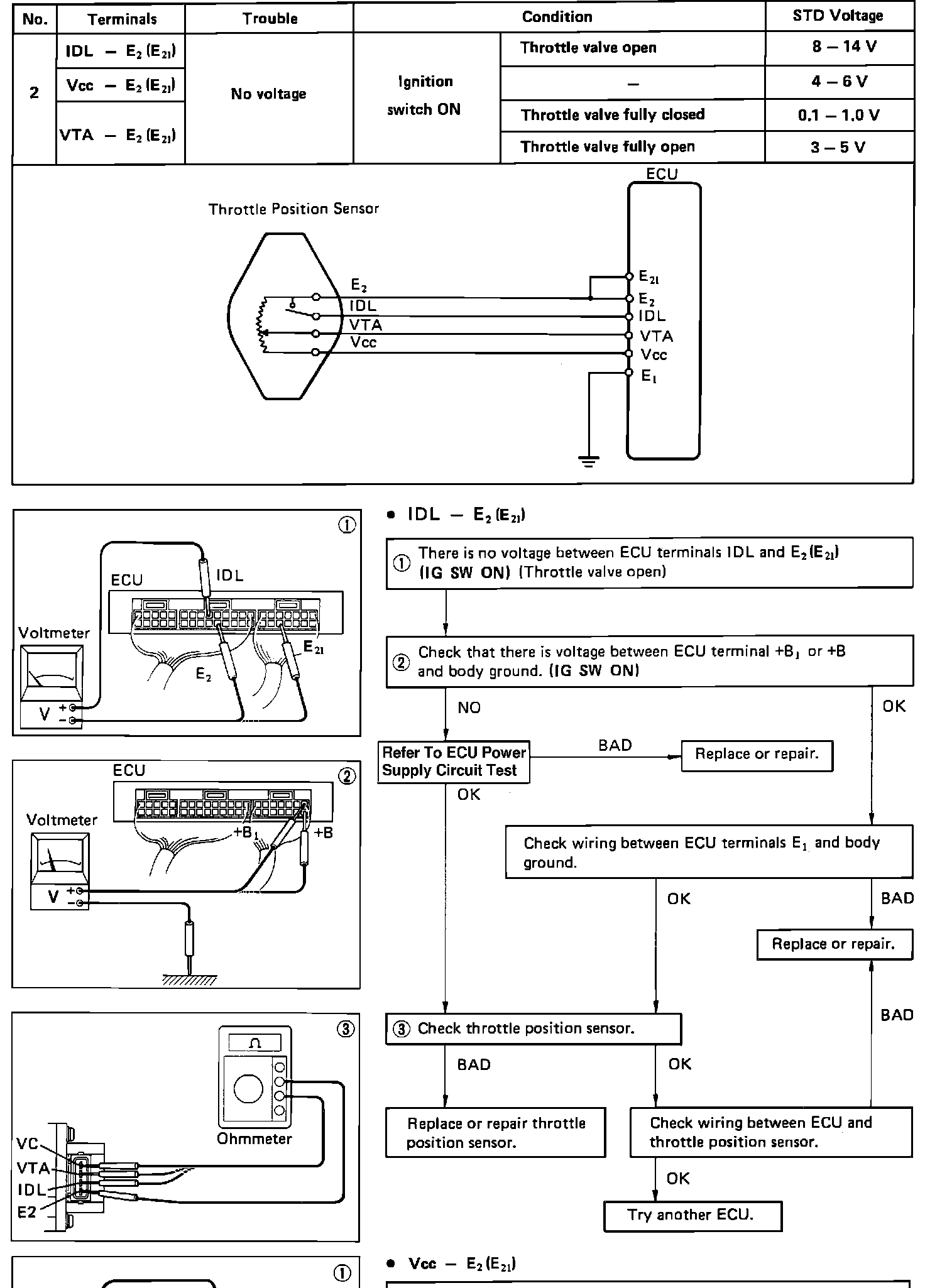

O[L Throttle Position Sensor (TPS) Circuit Test:
