DTC 64

Code 64 - Lock-up Solenoid:

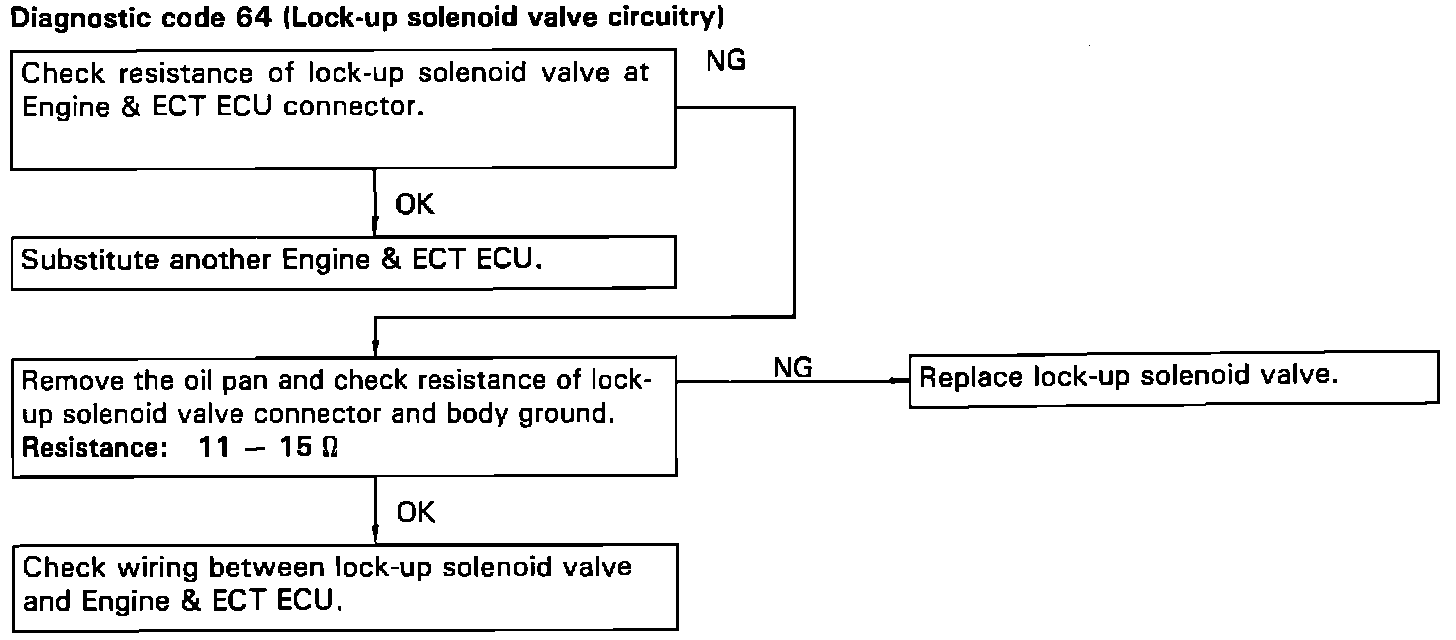

TROUBLESHOOTING FLOW-CHART

HINT: - There is no warning for diagnostic code No.64.


- In the event of a simultaneous malfunction of both No.1 and No.2 speed sensors, no diagnostic code will appear and the fail-safe system will not function. However, when driving in the D range, the transmission will not up-shift from first gear, regardless of the vehicle speed.
