Diesel Data
: Automotive Repair
Home
>>
Toyota Truck
>>
1991
>>
4 Runner 4WD L4-144.4 2366cc 2.4L SOHC (22R-E)
>>
Repair and Diagnosis
>>
Brakes and Traction Control
>>
Antilock Brakes / Traction Control Systems
>>
Diagrams
>>
Electrical Diagrams
Electrical Diagrams

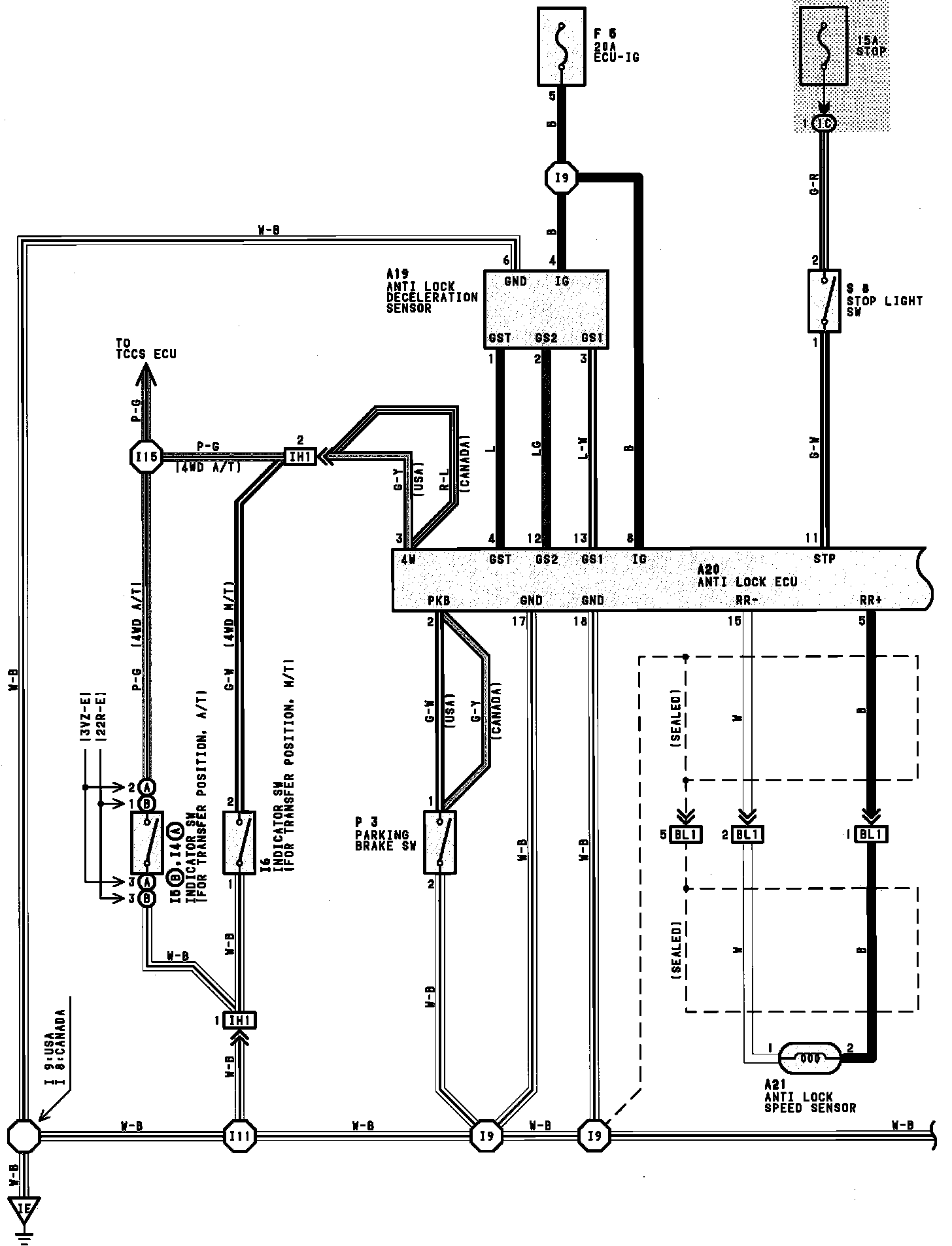

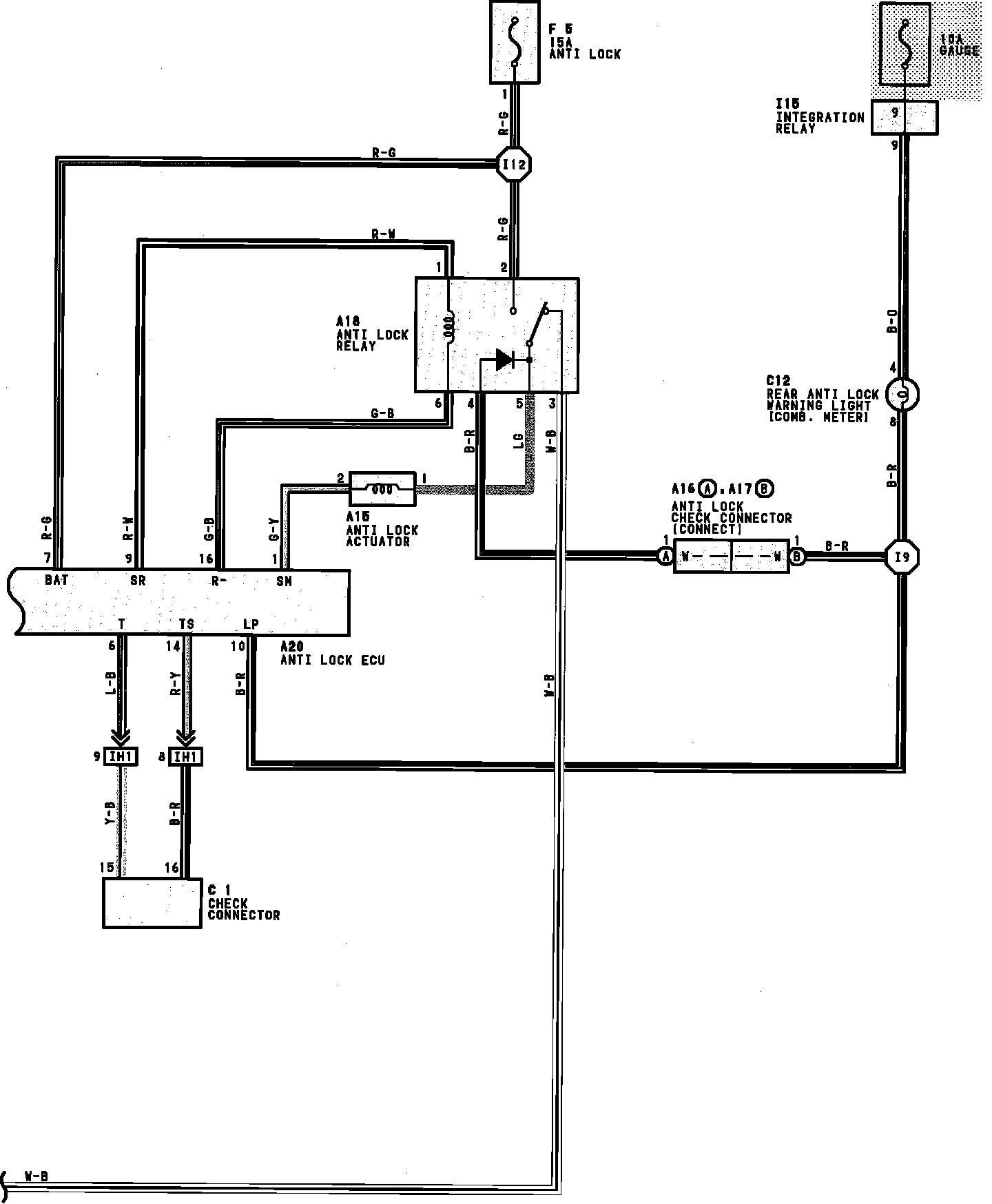

Anti-Lock Brakes (ABS):
Anti-Lock Brakes (ABS):
