Control Relay

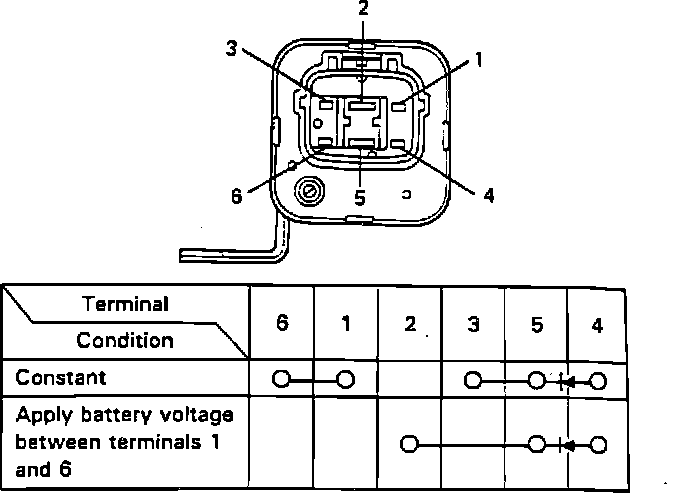

Control Relay. Pickup, 4Runner & T100:
Refer to
Fig. 66,
for control relay testing procedure.
