System Circuit Test W/Computer Connector Disconnected
System Circuit Test W/Computer Connector Disconnected

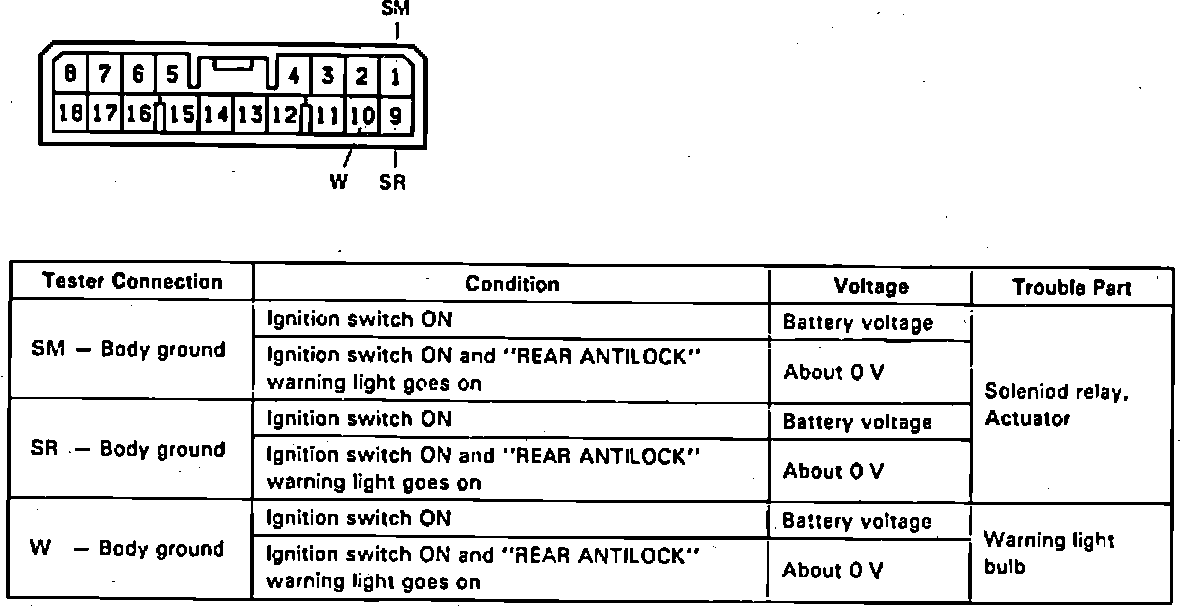

Fig. 92 Anti-lock Brake System Circuit Test (w/Computer Connector Disconnected). 1990-91 Pickup & 4Runner:
