Clearing Trouble Codes

CLEAR DIAGNOSTIC TROUBLE CODES





(a) Turn the ignition switch ON.

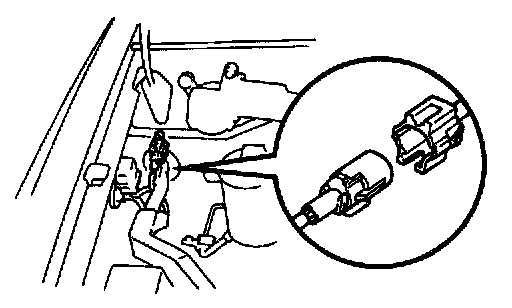

(b) Disconnect the service connector.

HINT: Keep the vehicle stationary.

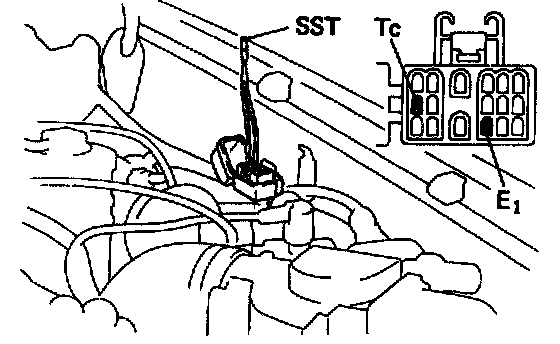

(c) Using SST, connect the terminal Tc and E1 of the data link connector 1. SST 09843-18020

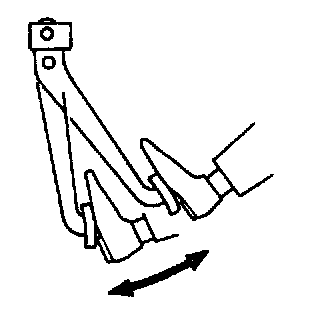

(d) Clear the diagnostic trouble codes stored in ECU by depressing the brake pedal 8 or more times within 3 seconds.

HINT: Cancellation can also be done by removing the REAR - ANTILOCK fuse, but in this case, other memory systems will also be cancelled out.

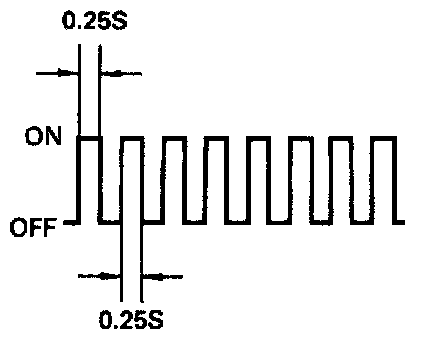

(e) Check that the warning light shows the normal code. If the warning light still shows the diagnostic trouble codes, check the cause and repair or replace the trouble parts. then clear the diagnostic trouble codes again.

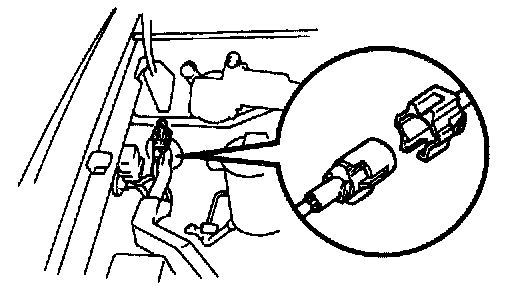

(f) Connect the service connector.
(g) Disconnect the terminal Tc and E1 of the data link connector 1.





(h) Check that the warning light goes off.
