Brake Pad: Service and Repair

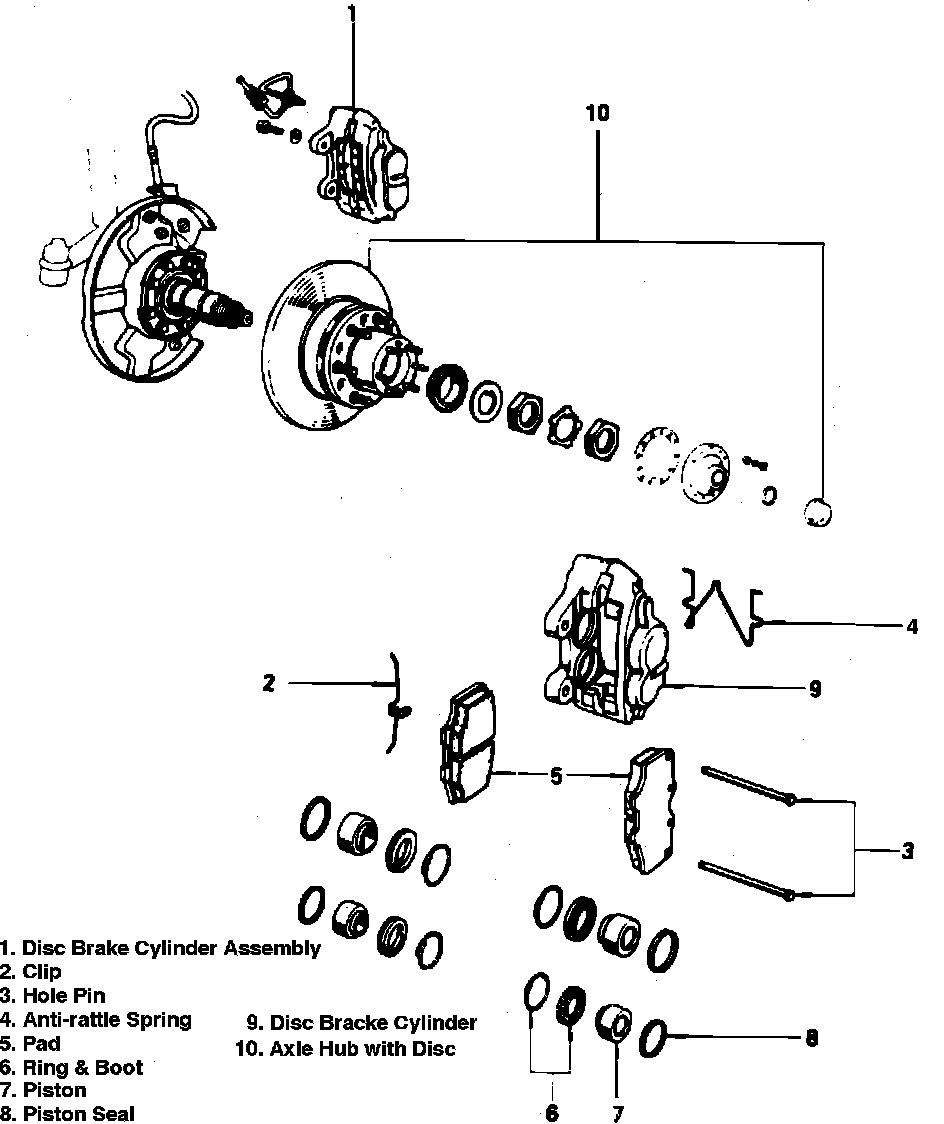

Fig. 9 Exploded View Of Disc Brake Assembly.:

1. Raise and support front of vehicle, then remove tire and wheel assembly.
2. Remove clip and hole pins, Fig. 9.
3. Remove anti-rattle spring and shim(s) if equipped, then remove brake pads.
4. Lubricate caliper housing with suitable brake grease at pad contact points.
5. Reverse procedure to install.
