Operating Check

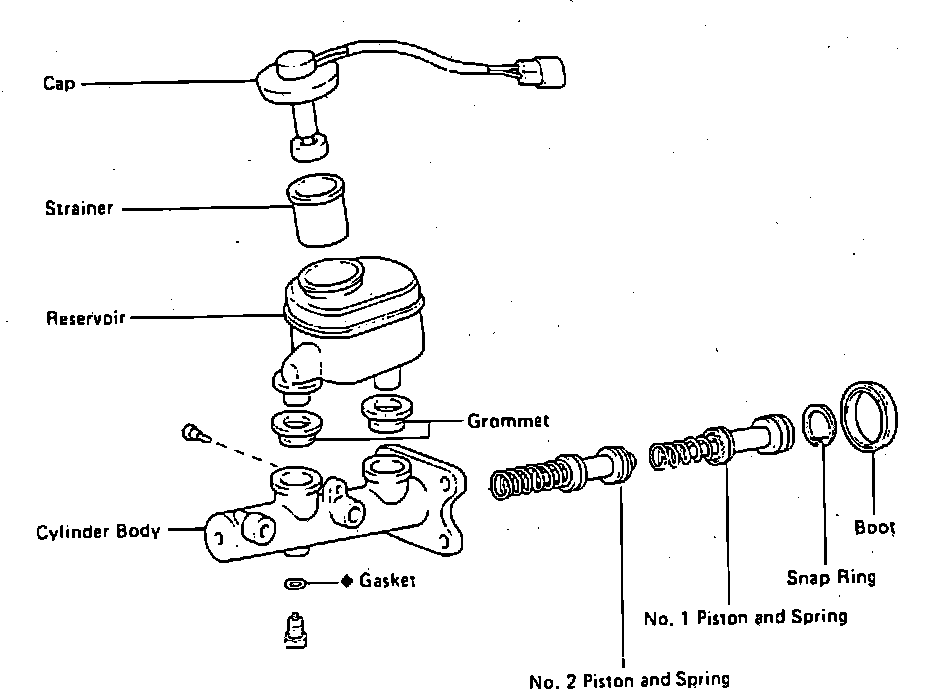

Fig. 2 Exploded View Of Master Cylinder. Typical:

1. Depress brake pedal several times with engine stopped, and ensure that pedal reserve distance has no change, Fig. 2.
2. Depress brake pedal and start engine. If pedal drops slightly, operation is normal.
