Home
>>
Toyota Truck
>>
1991
>>
4 Runner 4WD L4-144.4 2366cc 2.4L SOHC (22R-E)
>>
Repair and Diagnosis
>>
Cruise Control
>>
Testing and Inspection
>>
System Circuit Test
System Circuit Test

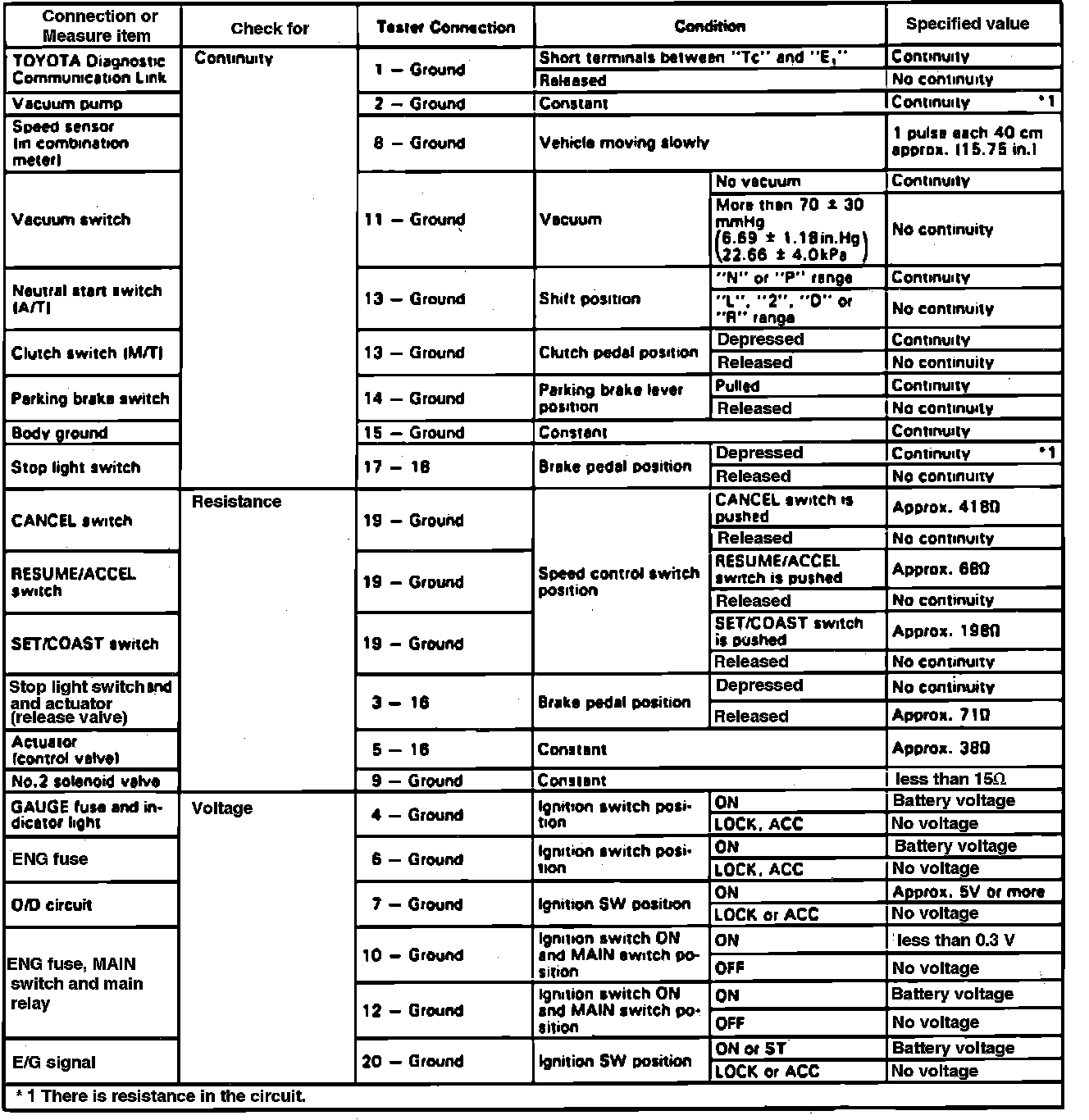

Fig. 65 System Circuit Test:
