Toyota Truck
>>
1991
>>
4 Runner 4WD L4-144.4 2366cc 2.4L SOHC (22R-E)
>>
Repair and Diagnosis
>>
Diagrams
>>
Connector Views
>>

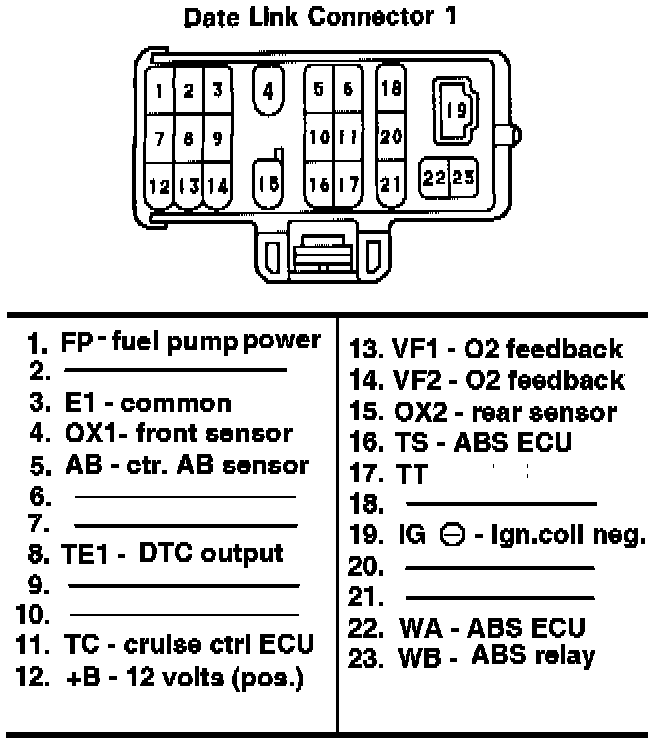

Data Link Connector
Data Link Connector
NOTE:
All terminals are not applicable to all models. However, terminal positions are standard.
