Toyota Truck
>>
1991
>>
4 Runner 4WD L4-144.4 2366cc 2.4L SOHC (22R-E)
>>
Repair and Diagnosis
>>
Diagrams
>>
Electrical Diagrams
>>
Instrument Panel, Gauges and Warning Indicators
>>
System Diagram
>>
Warning Indicators
>>
Hazard
Hazard

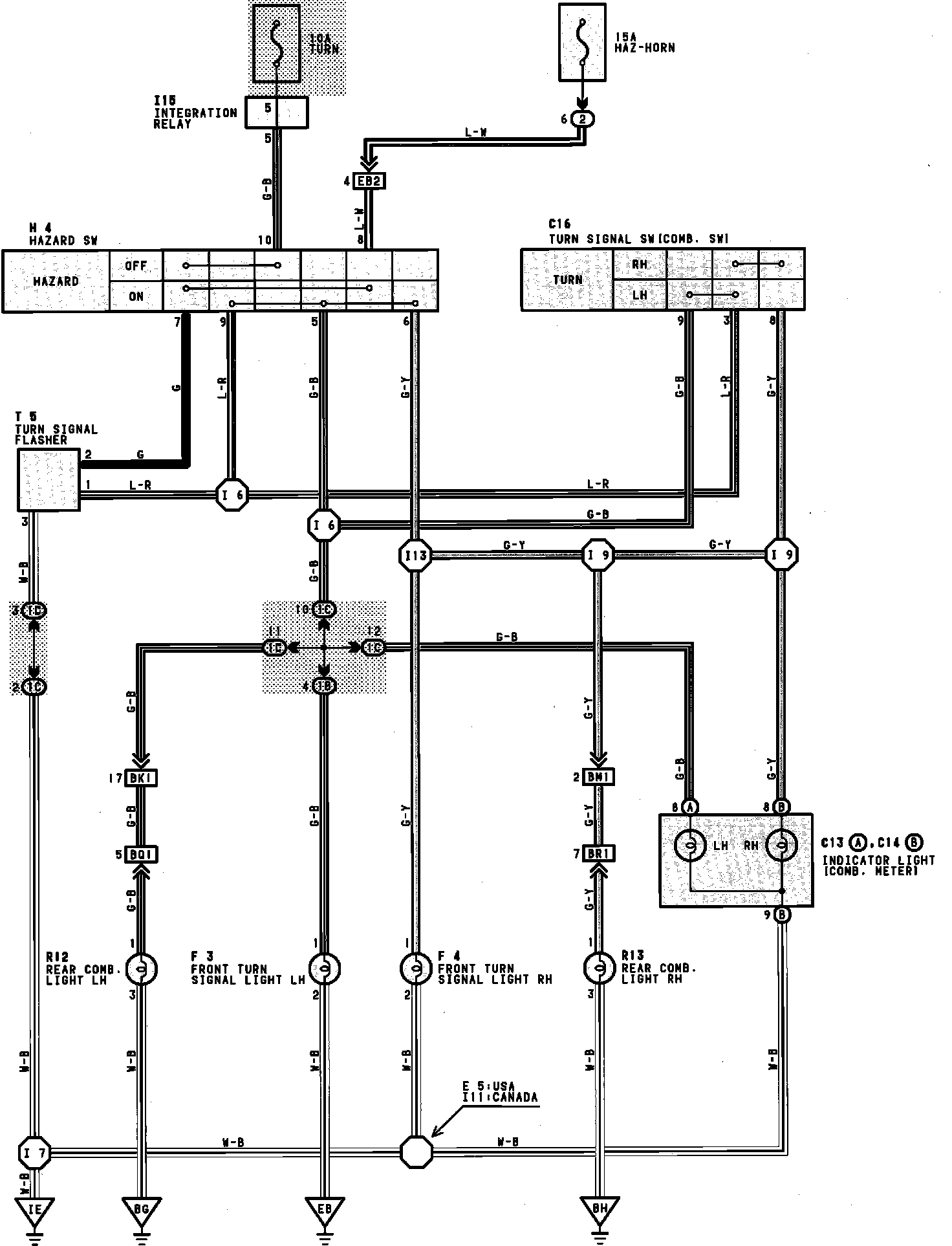

Turn Signal & Hazard Warning Lights:
