Radiator Cooling Fan Motor

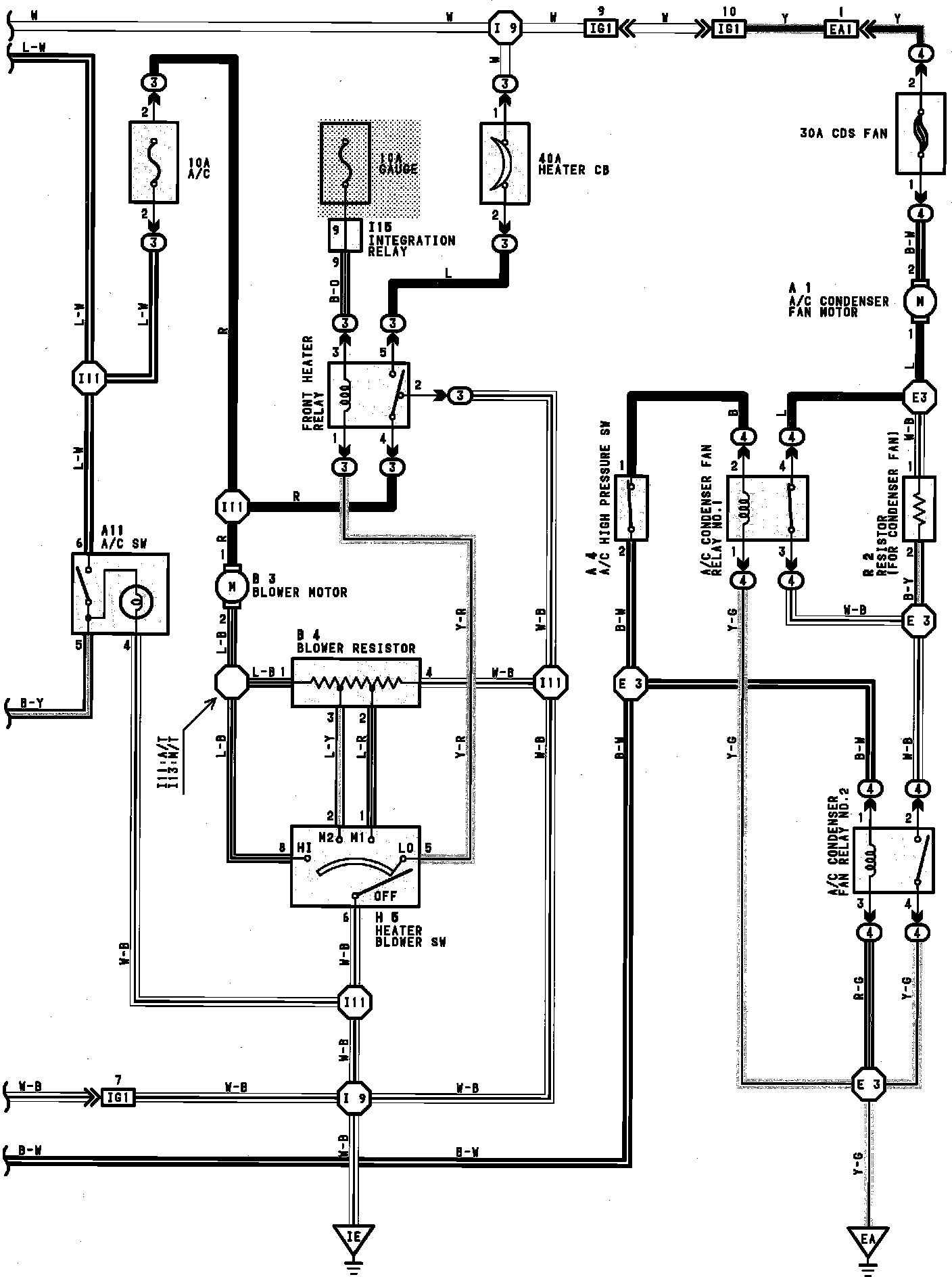

Air Conditioning, Front Heater & Cooling Fan (Engine):



Air Conditioning, Front Heater & Cooling Fan (Engine):
