Diesel Data: Automotive Repair
Home >> Toyota Truck >> 1991 >> 4 Runner 4WD L4-144.4 2366cc 2.4L SOHC (22R-E) >> Repair and Diagnosis >> Diagrams >> Exploded Views >> Manual Transmission/Transaxle >> Input Shaft, M/T >> W55, W56 Transmissions (2WD & 4WD)

W55, W56 Transmissions (2WD & 4WD)

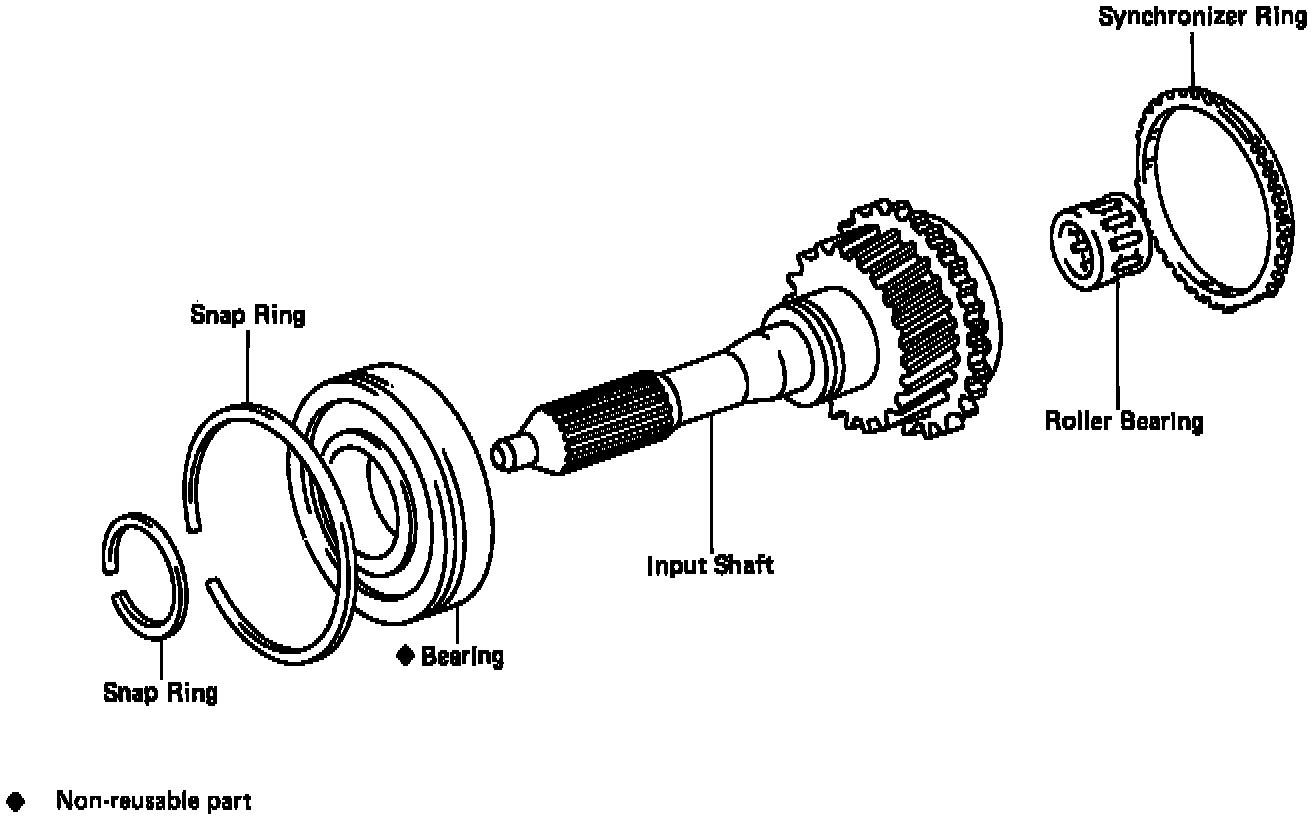

INPUT SHAFT ASSEMBLY COMPONENTS
