Removal and Installation

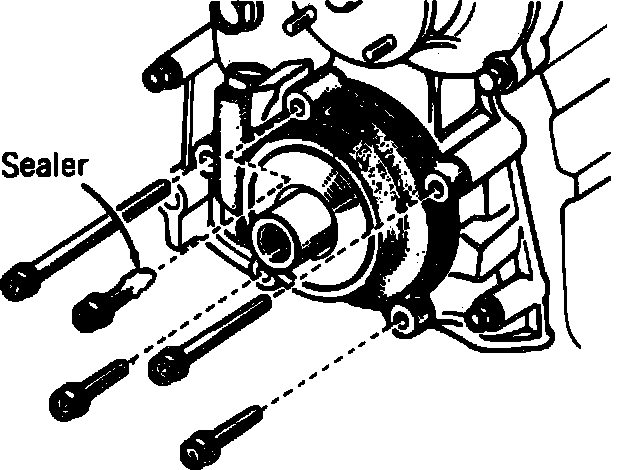

Fig. 7 Location Of Sealed Bolt:

1. Remove oil pan and oil strainer.
2. Remove crankshaft bolt and pulley.
3. Remove oil pump assembly.
4. Reverse procedure to install. Apply sealer to bolt shown in Fig. 7.
