Diesel Data
: Automotive Repair
Home
>>
Toyota Truck
>>
1991
>>
4 Runner 4WD L4-144.4 2366cc 2.4L SOHC (22R-E)
>>
Repair and Diagnosis
>>
Heating and Air Conditioning
>>
Blower Motor
>>
Service and Repair

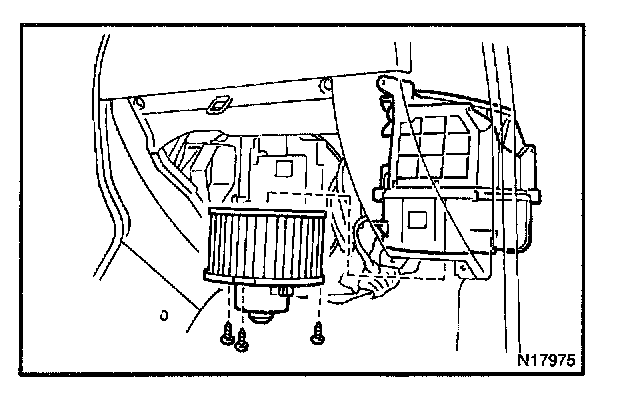

Blower Motor: Service and Repair
1.
Remove righthand lower finish panels as necessary.
2.
Remove
blower motor
connectors.
3.
Remove
blower motor
retaining screws as needed, then remove blower motor.
4.
Reverse procedure to install.
